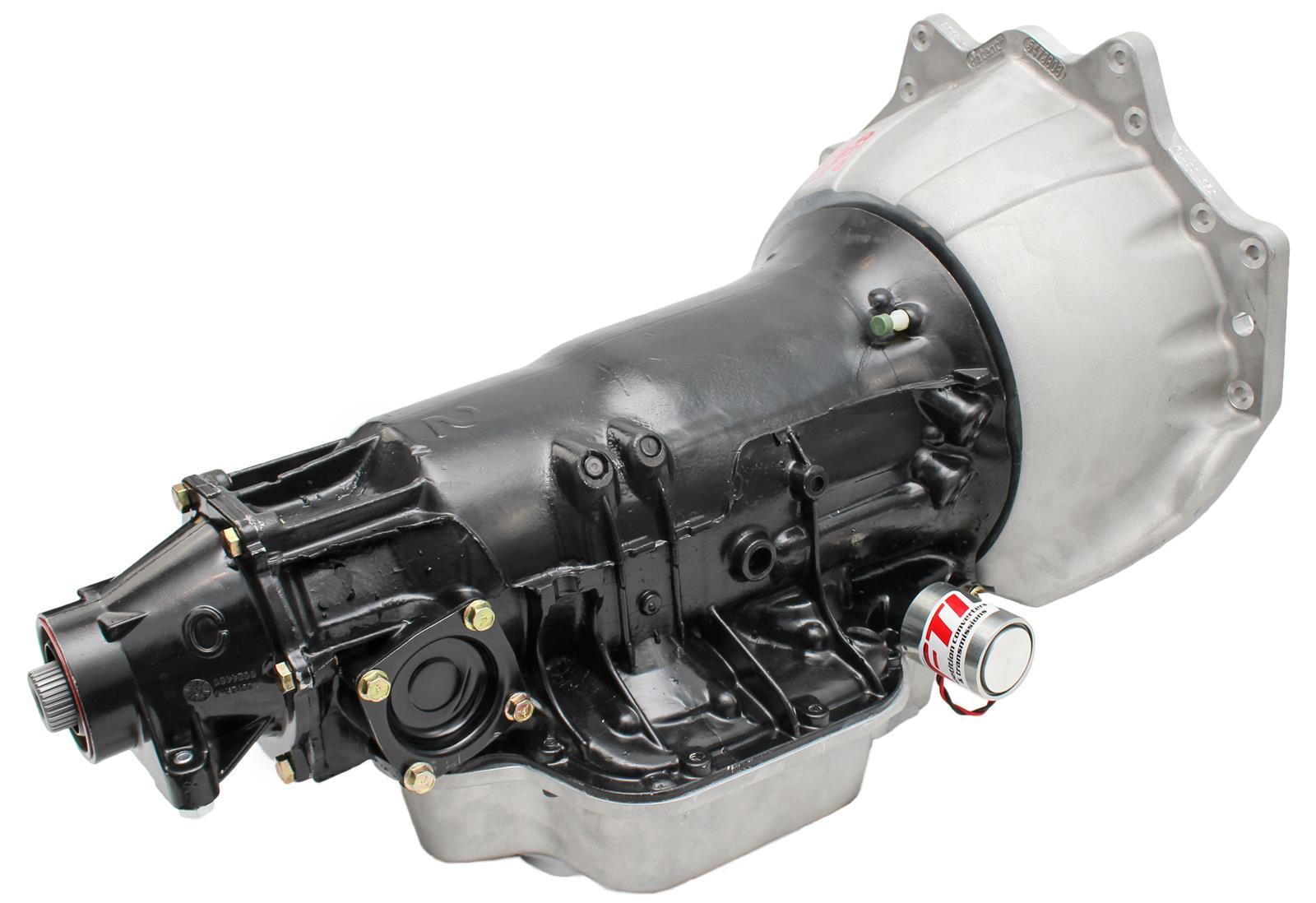

Th400-4Ub Automatic Th400 Level 4 Transmission

Product Information

FTI Performance TH400 Level 4 transmissions feature a full manual valve body equipped with a transbrake for the ultimate drag racer.

They make an excellent choice for weekend bracket racers, high-powered street cars, and mud trucks. The transmissions have: a 34-element intermediate sprag, performance clutches and steels, high-flow pump, race-prepped stock case, deep aluminum pan, billet forward clutch hub, heavy-duty intermediate retainer, and a 4-clutch intermediate pack. Some models are compatible with Ultra Bell bellhousings.

• Number of Gears:Three
• Valve Body Style:Full manual
• Transmission Advertised Horsepower Rating:900
• Torque Converter Included:No
• Trans-Brake Included:Yes
• Lockup Compatible:No
• Transmission Pan Style:Deep
• Transmission Pan Material:Aluminum
• Transmission Pan Finish:Natural
• Tailshaft Length (in.):4.063 in.
• Yoke Style:Slip-on/bolt-on
• Input Spline Quantity:30
• Input Shaft Material:Hardened steel
• Input Shaft Style:TH350/400
• First Gear Ratio (Automatic Transmissions):2.43
• Clutch Hub:Billet Steel
• Transmission Case Style:OEM
• Transmission Case Material:Aluminum
• Transmission Case Finish:Black
• Transmission Shield Built In:No
• Flexplate Shield Built In:No
• Fluid Fill Location:Case
• Dipstick Included:No
• SFI Rating:SFI 4.1/ 30.1
• Quantity:Sold individually.
• Notes:Features Ultra Bell bellhousing.
