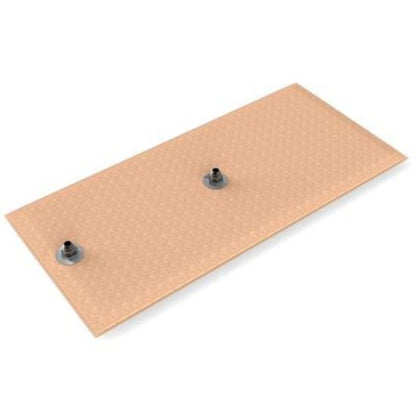

Fuel Cell Pickup Hydramat Rectangle 14 in. x 30 in. Two -10 AN Fitting Each

HydraMAT The Future of Fuel Delivery!

Holley's patent pending design solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells. During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling.

The secrets are, surface tension and fluid wicking, allowing the amazing Holley HydraMat'sTM' ability to draw fuel from nearly any area that comes in contact with fuel and store in the internal reservoir. As an area of the HydraMatTM is uncovered, the tiny pores of the media seal off through surface tension, forcing fuel to be contained in the reservoir and drawn from other areas of the mat where fuel continues to be available. The sheer size and coverage area of the HydraMatTM allows it to pull fuel from virtually any area in the tank or cell eliminating the need for specialty reservoirs and pick up pumps saving cost and greatly reducing complexity.

HydraMatsTM are available in various sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells. Square, rectangular and “X" shaped mats are available to provide easy installation thru various sending unit access holes or fuel cell cover plates. Retrofit devices will be available for stock tank vehicles to ease installation of aftermarket EFI retrofit kits like the Holley Terminator EFI System.

Features and Benefits of HydraMAT

• Can be folded and compressed for easy installation through a variety of fuel cell openings.
• Acts as a 15 micron pre-filter eliminating the need for a separate filter before the fuel pump.
• Patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells.
• Greatly reduces the potential for air to enter into the fuel system which can result in poor engine performance and/or engine stalling.
• Perfect for vehicles experiencing fuel starvation during hard cornering, acceleration, stopping, inclines, and low fuel conditions.
• Surface tension and fluid wicking allow the HydraMatTM to continue to draw fuel from the tank or cell even when part of the mat uncovered.
• Unique internal reservoir assists in keeping fuel available at the pickup even under extreme fuel slosh conditions.
• Eliminates the need for specialty reservoirs, sumps and pick up pumps saving cost and greatly reducing complexity.
• As an area of the HydraMat is uncovered, tiny pores in the media seal off through surface tension, forcing fuel to be drawn from other areas of the mat where fuel continues to be available.

Technical Information

• For best performance, the return fuel should be discharged near the pick-up of the HydraMatTM at a minimum distance of 1 inch above the mat.
• HydraMats with a female NPT thread do not require the use of a sealing paste or tape. Use of a sealing paste or tape could result in fuel pump failure.

NOTE: HydraMAT mounting is not included and must be purchased seperately.
