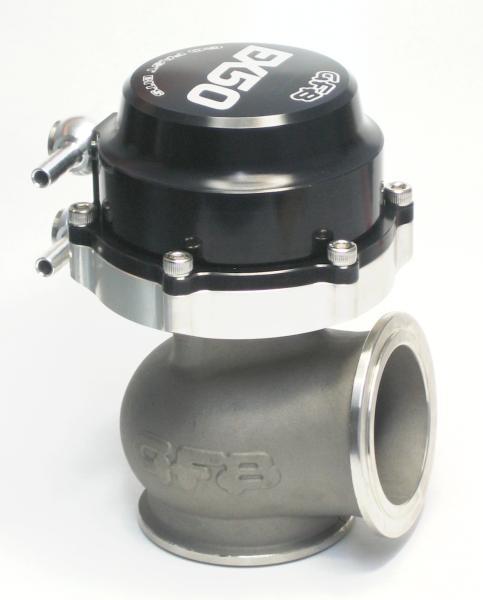

Ex50 50mm External Wastegate V-Band Connection
Product Information
Designed to cope with the brutal conditions of extreme exhaust temperatures, the EX50 features not only a huge flow capacity, but also a compact size that is unmatched by competitors for a 50mm wastegate. The main goal for the EX50 was to create a wastegate that had a very large flow capacity in a package that is physically as small as possible. Good flow around a poppet-style valve depends on a smooth and generous bowl area into which the valve lifts. Many brands do not allow enough room around the valve head for good flow, instead relying on increasing the valve travel as a band-aid solution. Supplied with 13lb spring.
Features:- Body, valve and seat are made from high-temp stainless steel
- Actuator housing machined from billet 7075 alumin ium - ronger & harder than 6061
- Flow tests show that for the same valve lift, the EX50 outflows its nearest competitor by 18%
- Internal valve shroud protects valve stem from excessive heat and prevents carbon-related sticking
- Top-hat style Nomex-reinforced silicone rolling diaphragm for longer valve travel
- 90° banjo-style boost hose connectors
- V-band clamp mounting system, supplied with 304 stainless weld-on adaptors (base flange is compatible with TiAl 44 flange when used with GFB adaptor)
