Up30 12V Vacuum Pump Alloy -6 Sae
Product Information

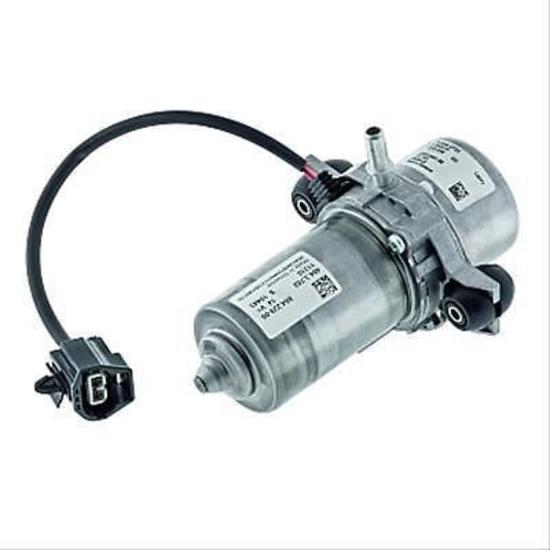

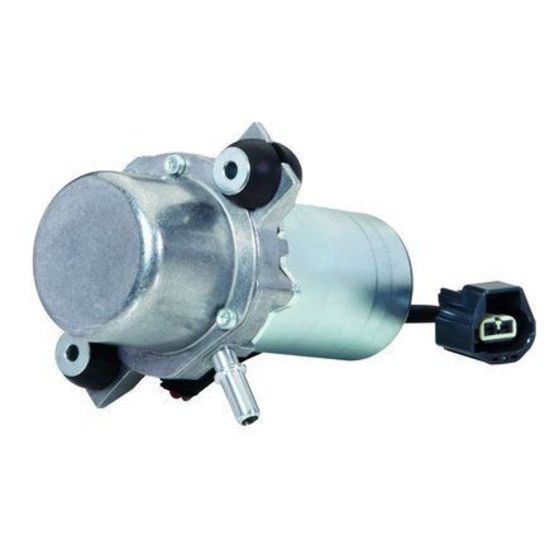

| HELLA UP30 12V VACUUM PUMP HLA009286001 ALLOY -6 SAE These Hella UP30 electric vacuum pumps are designed to provide a primary vacuum source for high pneumatic volume applications, such as brake boosters in camless engines or hybrid electric vehicle applications. They can be utilized in multiple mounting options, both on engine and off-engine, making them a flexible solution for providing a high pneumatic volume primary vacuum source. |
| Power Supply: 12 V DC Operating temperature range: – 40 °C to 120 °C Voltage range: 10 V ... 16 V Maximum vacuum level:l ≥ 86 % (below ambient pressure level) Pressure build-up time at 100 hPa: pabs = 500 mbar in t ≤ 4 sec pabs = 300 mbar in t ≤ 8 sec Ambient pressure: 12 V test volume: 4 l Pump operating time: ≥ 1200 hours Weigh 1.7 kg Vacuum Hose Included: No Vacuum Gauge Included: No Vacuum Control Included: No Mounting Insulators Included: Yes Switching Relay Included: No Height (in): 7.000 in. Width (in): 2.598 in. Quantity: Sold individually. |
.
