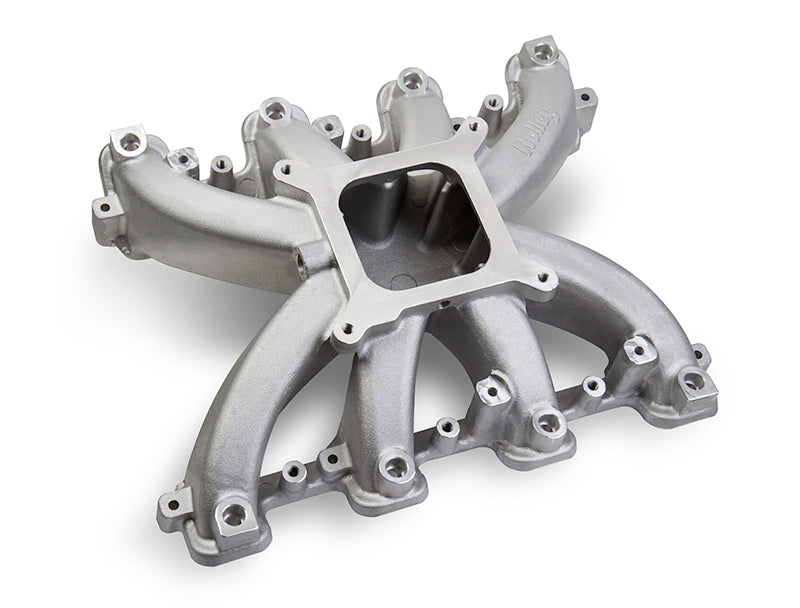

Holley HO300-136 GM LS3/L92 Intake Manifold Single Plane Mid Rise

Holley EFI LS single plane mid-rise intake manifolds are great for your higher horsepower engine.

Featuring cast aluminum construction, these manifolds are also great for centrifugal blower, turbocharged, or NOS mild power adder applications. The efficient casting design is lightweight--11.5 lbs.--with consistent wall thickness and strong mounting flanges. The optimized runner layout and constant cross sectional area offer a broad torque curve, with the best vehicle performance from 2,500 to 7,000 rpm. The mid-rise design offers minimum carb mounting flange height--without sacrificing power--and is another plus for vehicles with minimum hood modifications. Holley EFI LS single plane mid-rise intake manifolds include zinc-plated hex head cap mounting bolts and washers, pipe plugs to block manifold vacuum and MAP sensor ports, and Viton® O-ring cylinder head mounting flange gaskets for an OEM-style seal.

Single Plane Mid–Rise EFI LS Intake Manifold. Fits all GM LS Gen III engines equipped with LS3/L92 style rectangular port cylinder heads

Features:

• 2500-7000 RPM power band
• 4150 Square bore flange
• Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
• Minimum carb flange height - fit in vehicles with minimum hood modifications
• Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS mild power adder applications
• Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
• Weight - 11.5 lbs.
• Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange and bellhousing flange
• Port size - 2.50" height x 1.15" wide
• Includes Viton® O-ring intake to cylinder head gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
• This manifold will not work with factory fuel rails and requires the use of Holley Fuel Rail Kit 534-218

Single Plane Mid–Rise EFI LS Intake Manifold. Fits all GM LS Gen III engines equipped with LS3/L92 style rectangular port cylinder heads

• Engine Block Deck Height:Standard deck
• Cylinder Head Configuration:Rectangular Port LS3/L76/L92/L99
• Injection Style:Multi-port
• Basic Operating RPM Range:2,500-7,000
• Intake Section Included:Complete
• EGR:No
• Injectors Included:No
• Multi-Port Fuel Rails Included:No
• Aftermarket Fuel Rail Required:Yes
• Throttle Body Included:No
• Supplemental Bosses Cast-In:No
• Supplemental Bosses Machined:No
• Runners Included:No
• Runners Removable:No
• Base Material:Aluminum
• Base Finish:Natural
• Quantity:Sold individually.
• Notes:Fits all GM LS engines equipped with LS3/L92-style rectangular port cylinder heads. This manifold will not work with factory fuel rails. Requires Holley fuel rails, part number 534-218.
