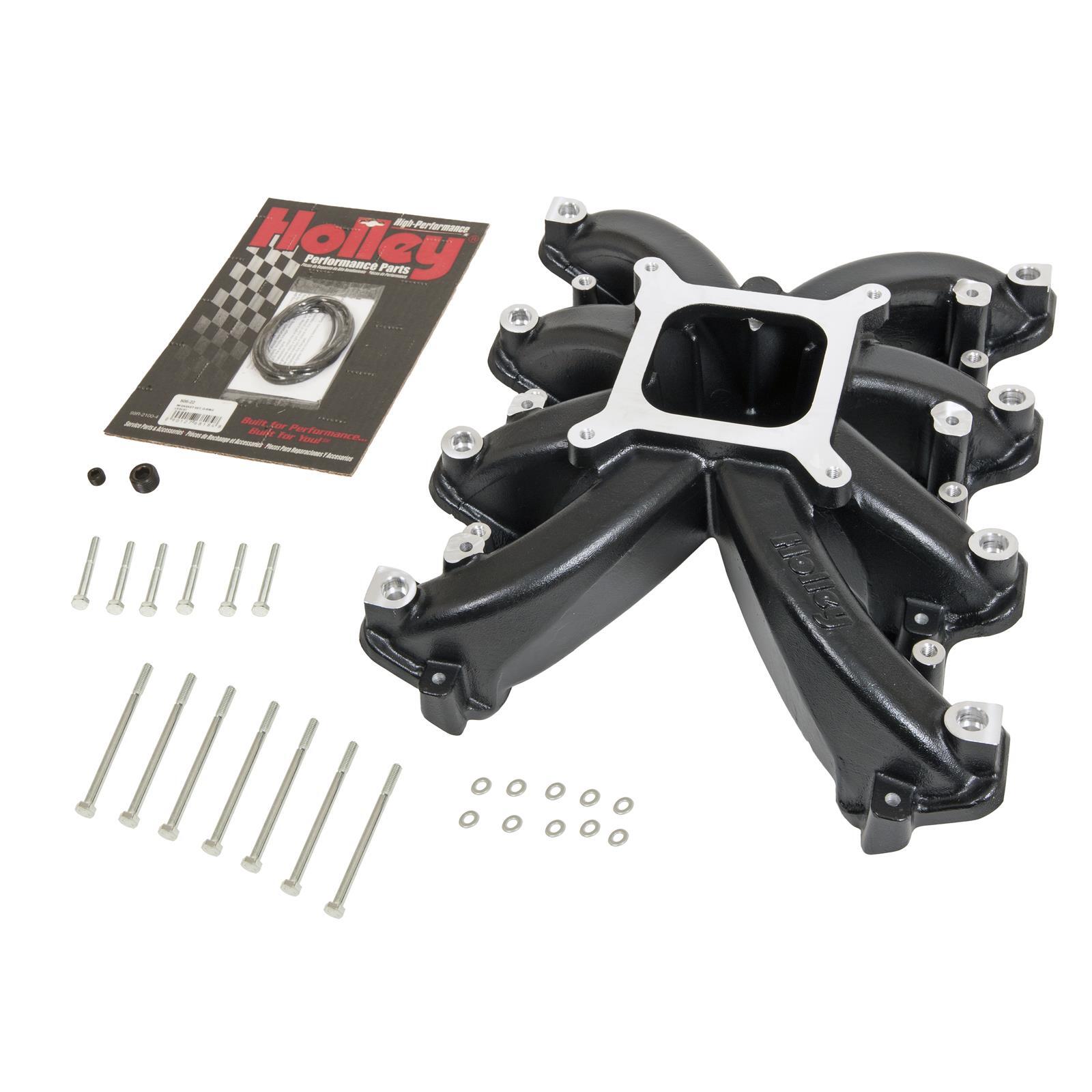

Holley HO300-136BK LS Gen 3 EFI LS Single Plane Mid-Rise Intake Manifold (suit LS3/L92 Rect Port)

Holley EFI LS single plane mid-rise intake manifolds are great for your higher horsepower engine.

Featuring cast aluminum construction, these manifolds are also great for centrifugal blower, turbocharged, or NOS mild power adder applications. The efficient casting design is lightweight--11.5 lbs.--with consistent wall thickness and strong mounting flanges. The optimized runner layout and constant cross sectional area offer a broad torque curve, with the best vehicle performance from 2,500 to 7,000 rpm. The mid-rise design offers minimum carb mounting flange height--without sacrificing power--and is another plus for vehicles with minimum hood modifications. Holley EFI LS single plane mid-rise intake manifolds include zinc-plated hex head cap mounting bolts and washers, pipe plugs to block manifold vacuum and MAP sensor ports, and Viton® O-ring cylinder head mounting flange gaskets for an OEM-style seal.

• Engine Block Deck Height:Standard deck
• Cylinder Head Configuration:Rectangular Port LS3/L76/L92/L99
• Injection Style:Multi-port
• Basic Operating RPM Range:2,500-7,000
• Intake Section Included:Complete
• EGR:No
• Injectors Included:No
• Multi-Port Fuel Rails Included:No
• Aftermarket Fuel Rail Required:Yes
• Throttle Body Included:No
• Supplemental Bosses Cast-In:No
• Supplemental Bosses Machined:No
• Runners Included:No
• Runners Removable:No
• Base Material:Aluminum
• Base Finish:Black ceramic
• Quantity:Sold individually.
• Notes:Fits all GM LS engines equipped with LS3/L92-style rectangular port cylinder heads. This manifold will not work with factory fuel rails. Requires Holley fuel rails, part number 534-218.
