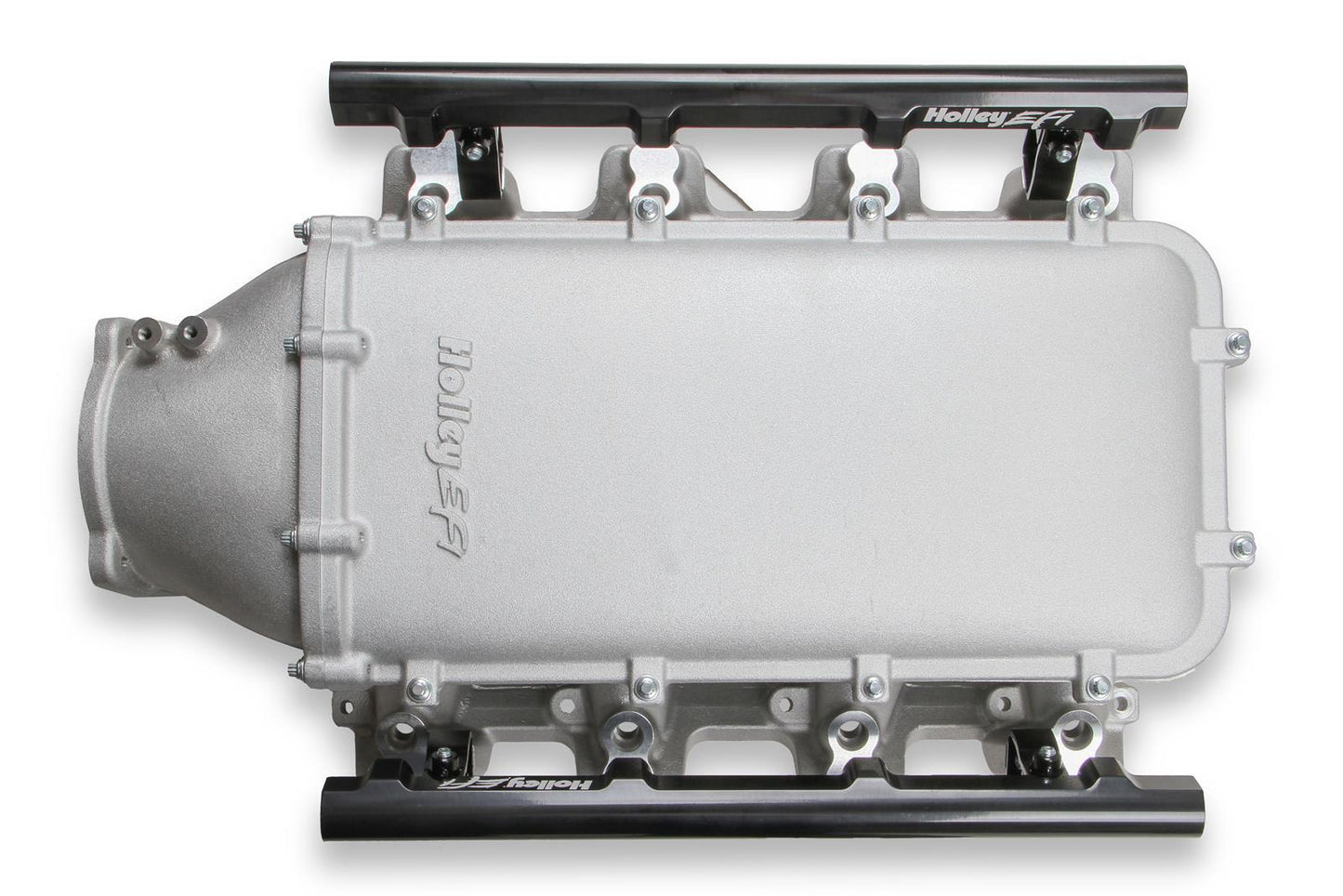

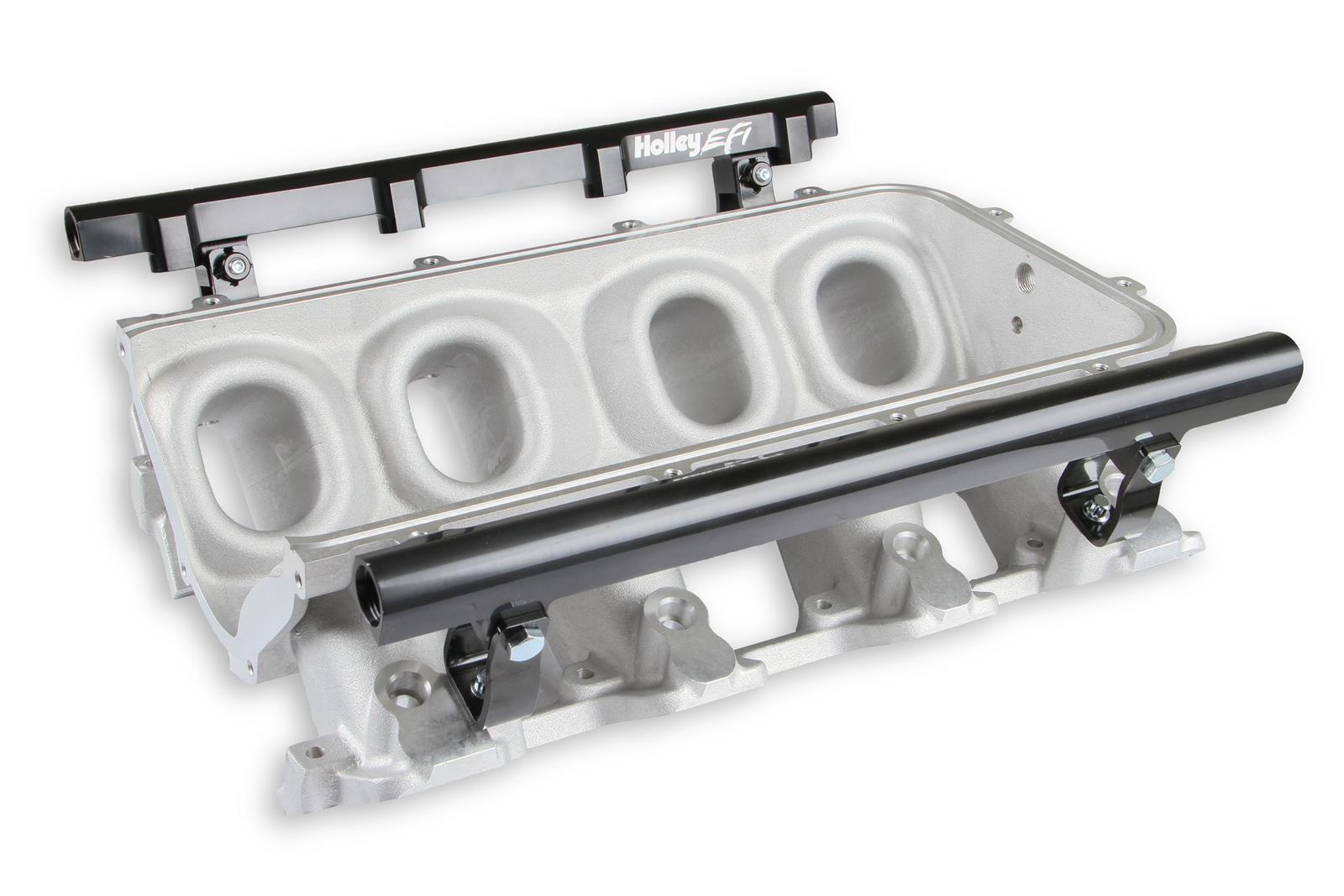

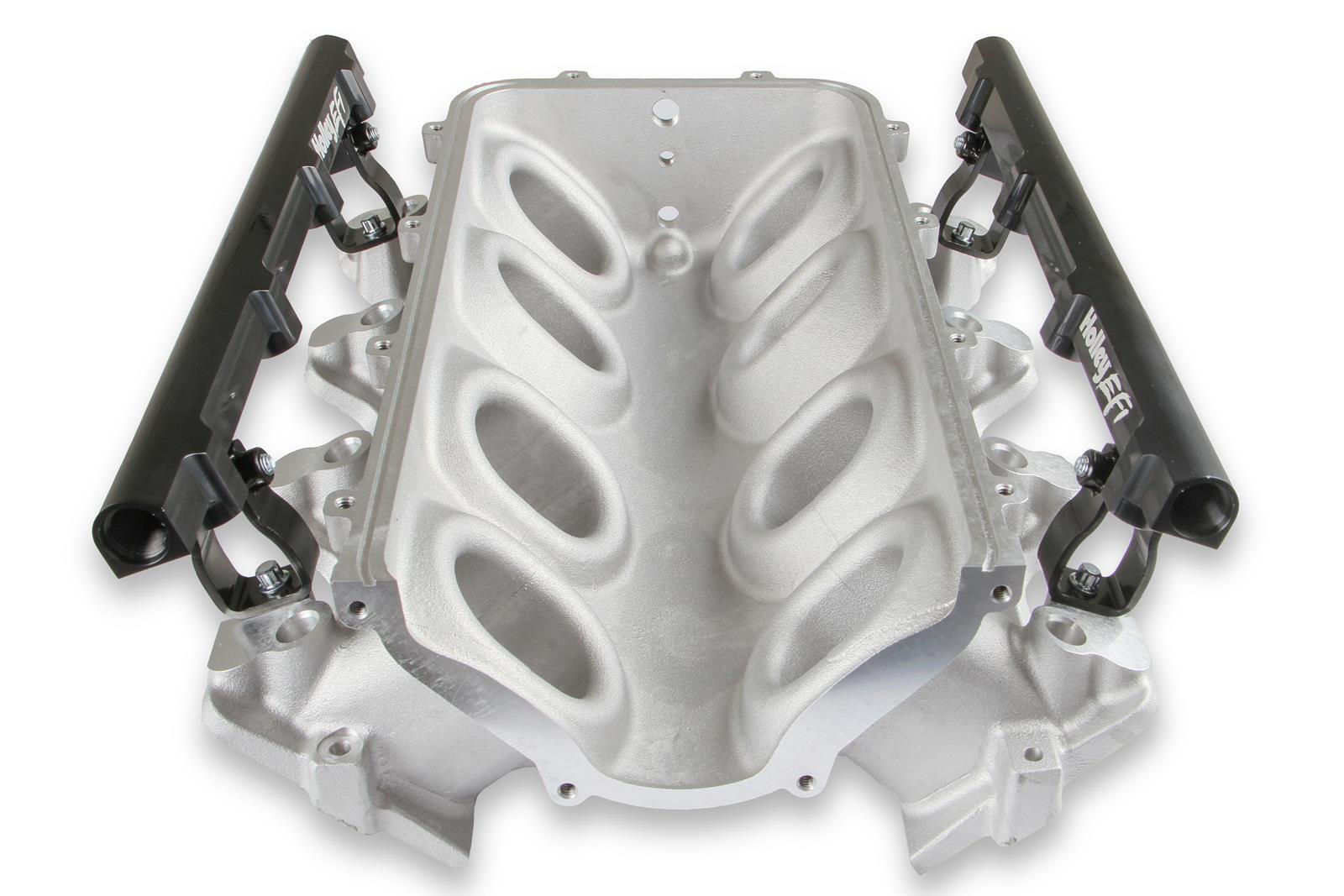

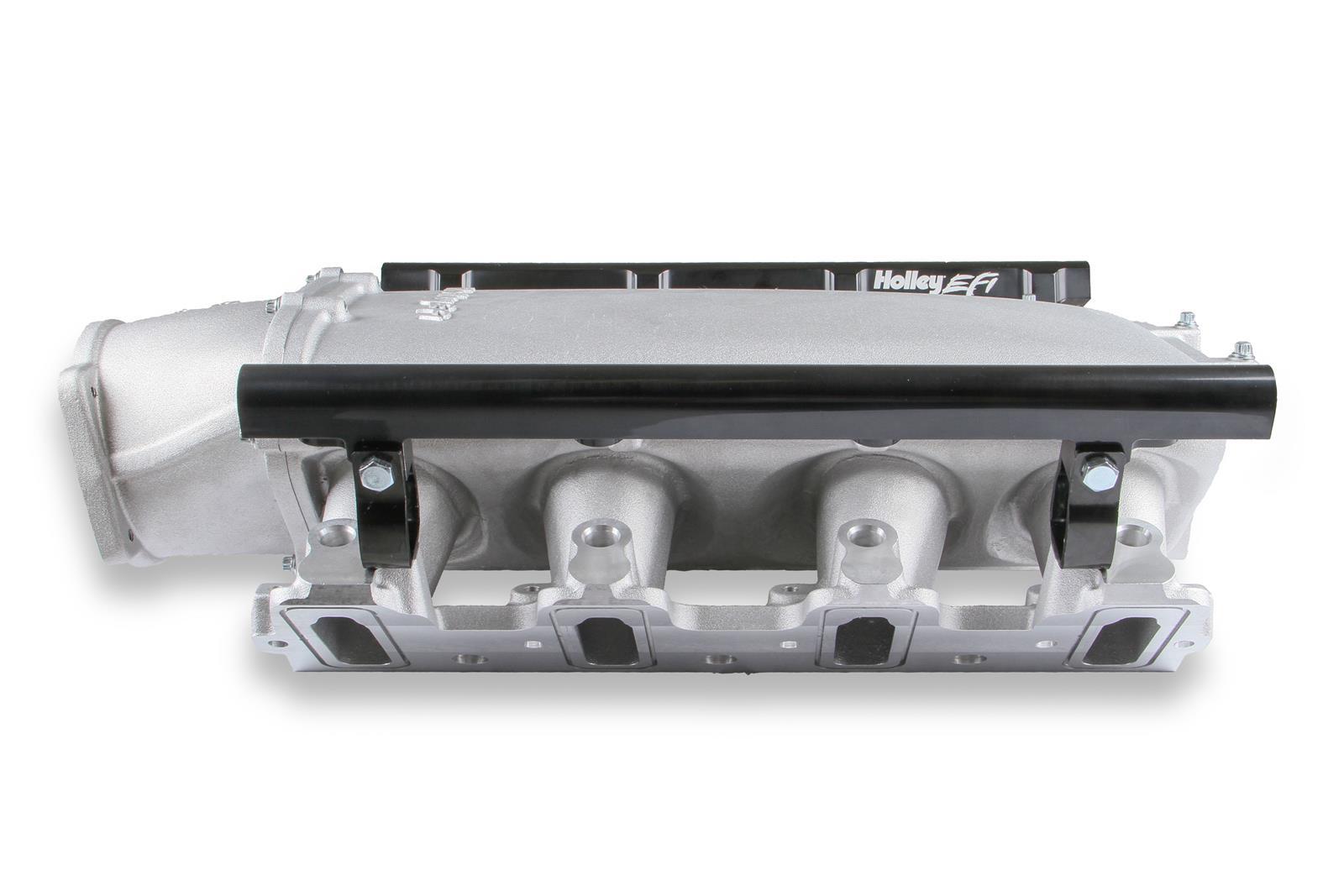

Chev LS Modular Lo-Ram EFI Intake Manifold Cathedral Port Heads Natural Finish
SKU:HO300-621
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information
Holley LS Modular Lo-Ram EFI intake manifolds are designed for GM LS Gen III and IV engines equipped with GM LS1/LS2/LS6 (cathedral port) cylinder heads.
These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and a 105 mm throttle or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood in the front-feed configuration. The modular design allows the use of front-feed plenum entry, while intake design facilitates custom inlet duct and throttle body placement.
Additional features and specs:
* Cast aluminum construction with satin silver finish
* Modular design allows the use of front-feed plenum entry
* Clears 4th Gen Camaro and C5 Corvette cowls and hoods without modification
* With forced-induction and the short runner length the engine rpm at which peak power occurs is more likely to be coupled to the supercharger or turbocharger being used

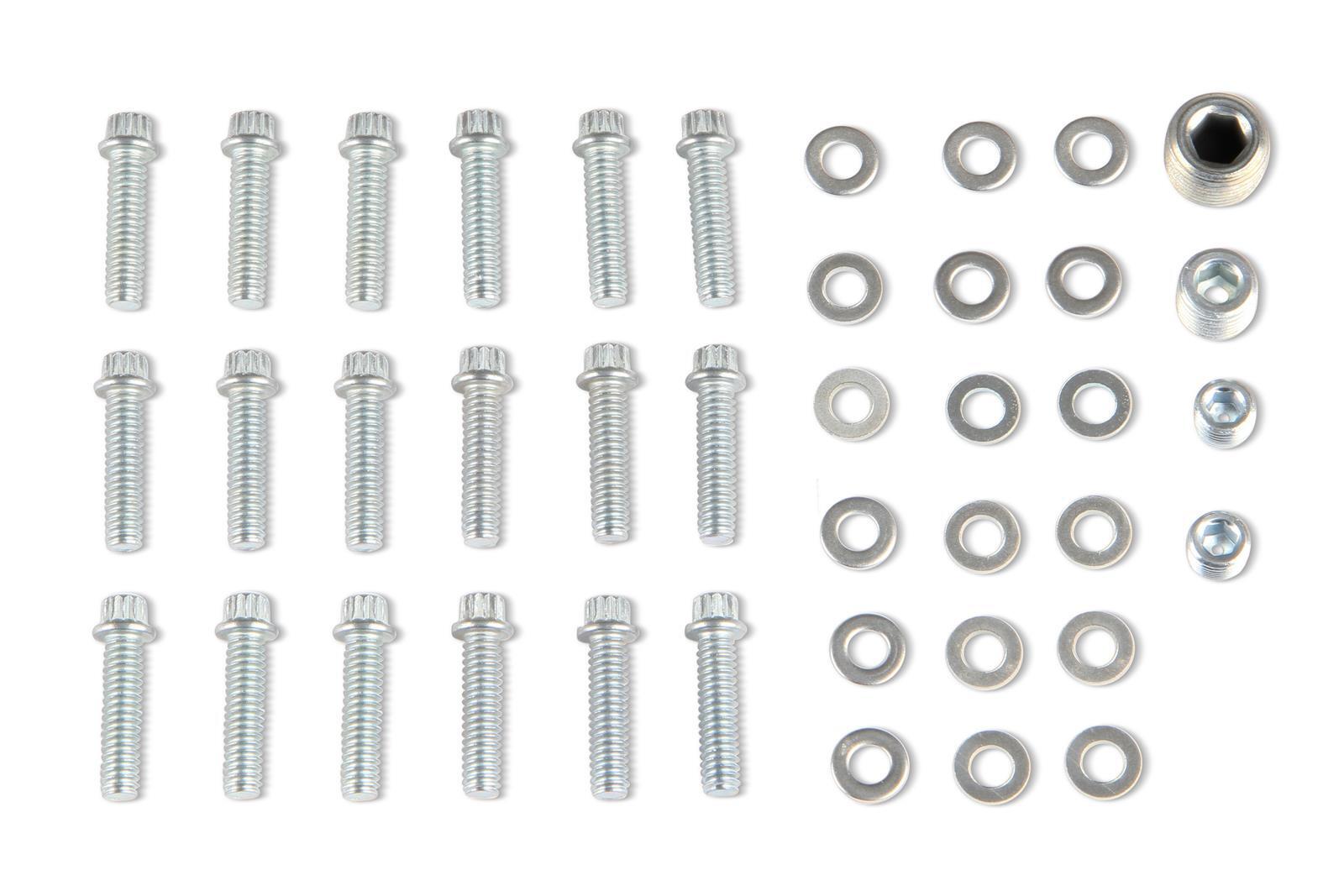

* High-volume fuel rails and mounting hardware included with 3/4 in.-16 O-ring ports (8 AN)

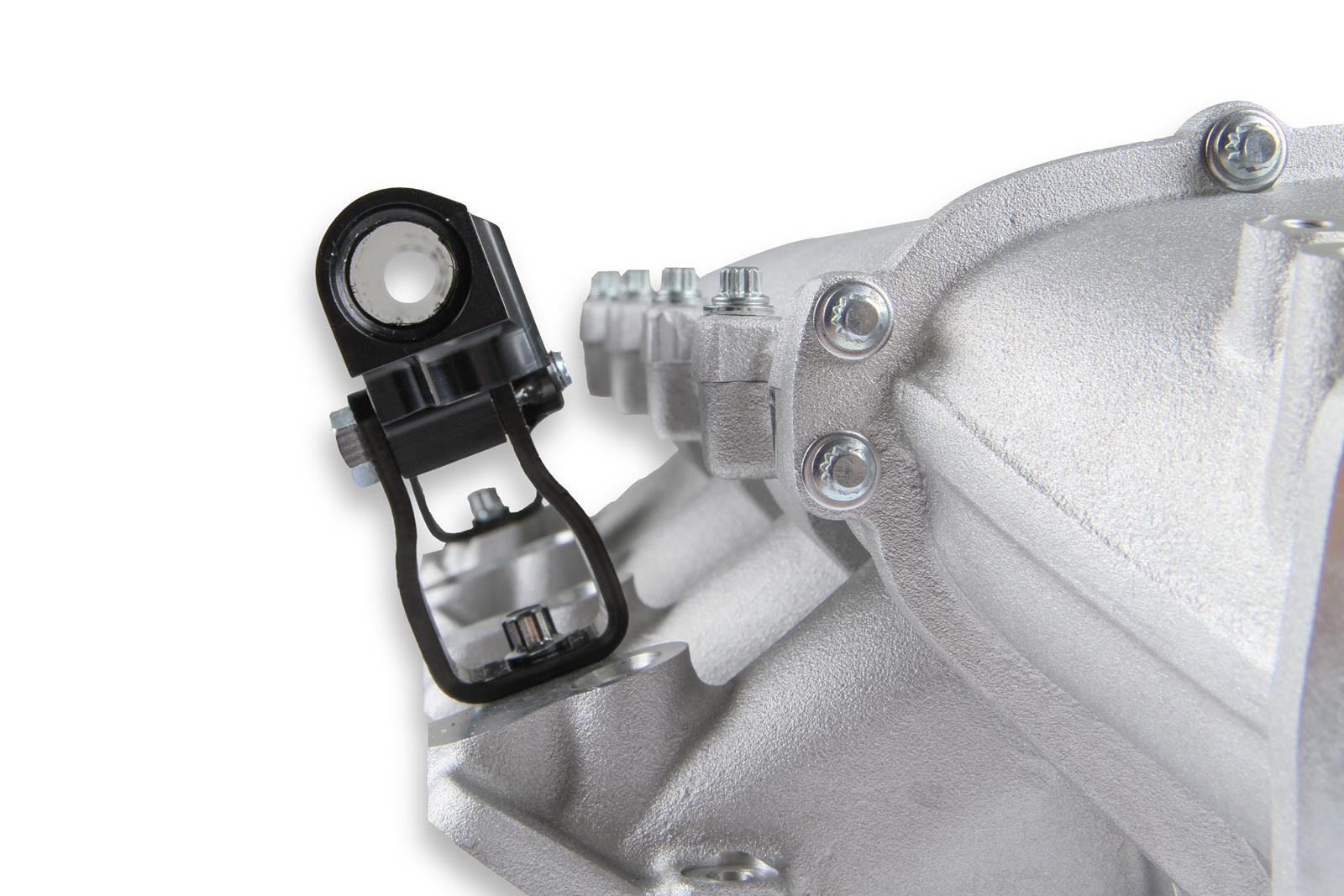

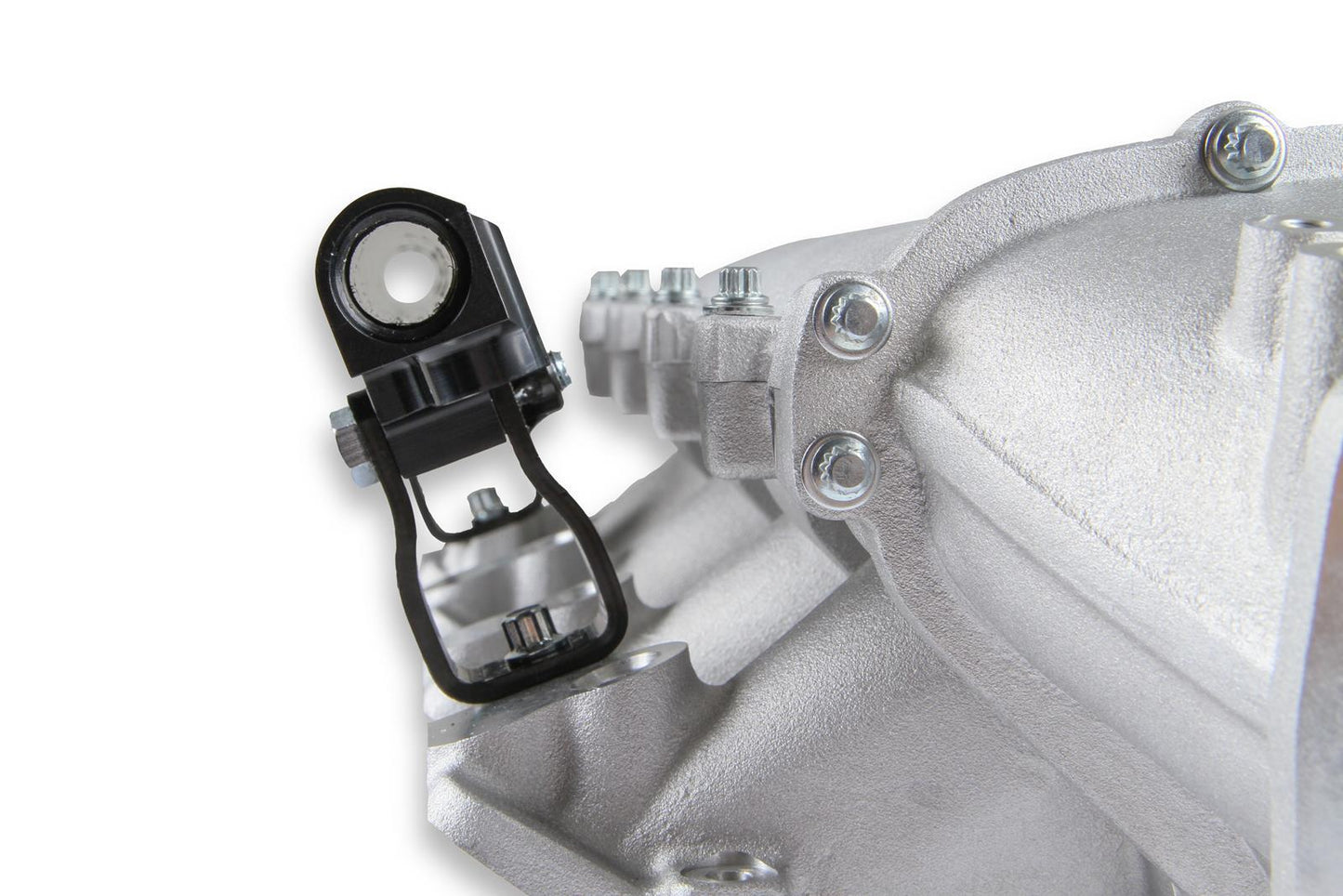

* Fuel rail kits include two sets of brackets; a set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors
- Cylinder Head Configuration:Cathedral Port LS1/LS2/LS6
- Fuel Injection Style:Multi-port
- Intake Section Included:Complete
- Throttle Body Bore Size:105mm
- Engine Block Deck Height:Standard deck
- Injectors Included:No
- Multi-Port Fuel Rails Included:Yes
- EGR:No
- Aftermarket Fuel Rail Required:Yes
- Throttle Body Included:No
- Supplemental Bosses Cast-In:No
- Supplemental Bosses Machined:No
- Runners Included:Yes
- Runners Removable:No
- Plenum Material:Aluminum
- Plenum Finish:Natural
- Base Material:Aluminum
- Base Color:Natural
- Quantity:Sold individually.
- Notes:Fuel rails are machined for -8 AN O-ring female fittings. Intake manifold features a plenum height of 5.17 in. and is designed for forced induction applications with peak power of 7,000 to 8,000 rpm.
