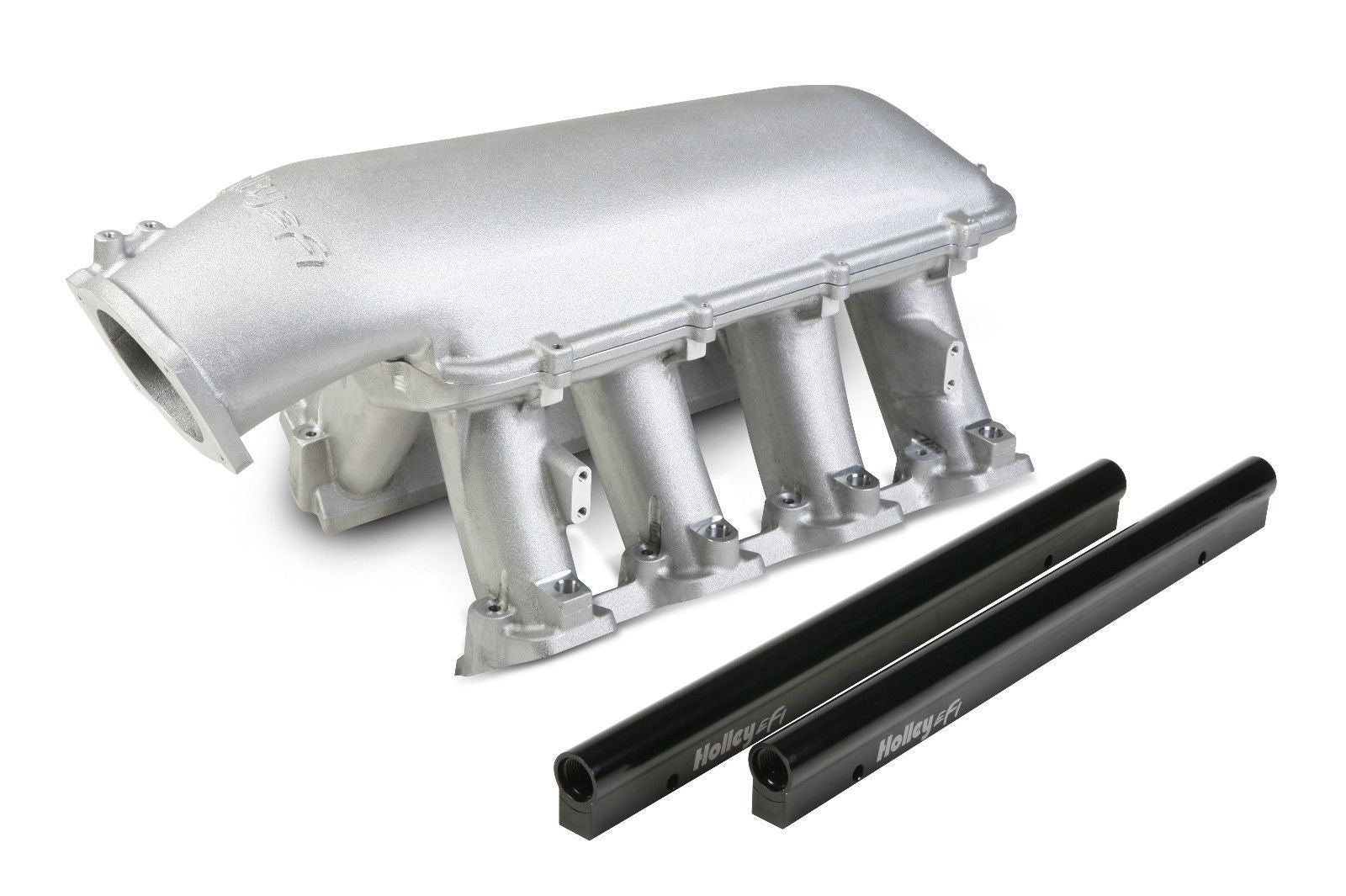

HOLLEY LS HI-RAM 92MM EFI INTAKE MANIFOLD HO300-116 CHEVY/HOLDEN LS3/L92

1 3

Holley

HO300-116
$1,970.95 AUD
$1,970.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

HOLLEY LS HI-RAM 92MM EFI INTAKE MANIFOLD HO300-116 CHEVY/HOLDEN LS3/L92

Item Description

HOLLEY LS HI-RAM 92MM EFI INTAKE MANIFOLD HO300-116 CHEVY/HOLDEN LS3/L92

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!FEATURES:

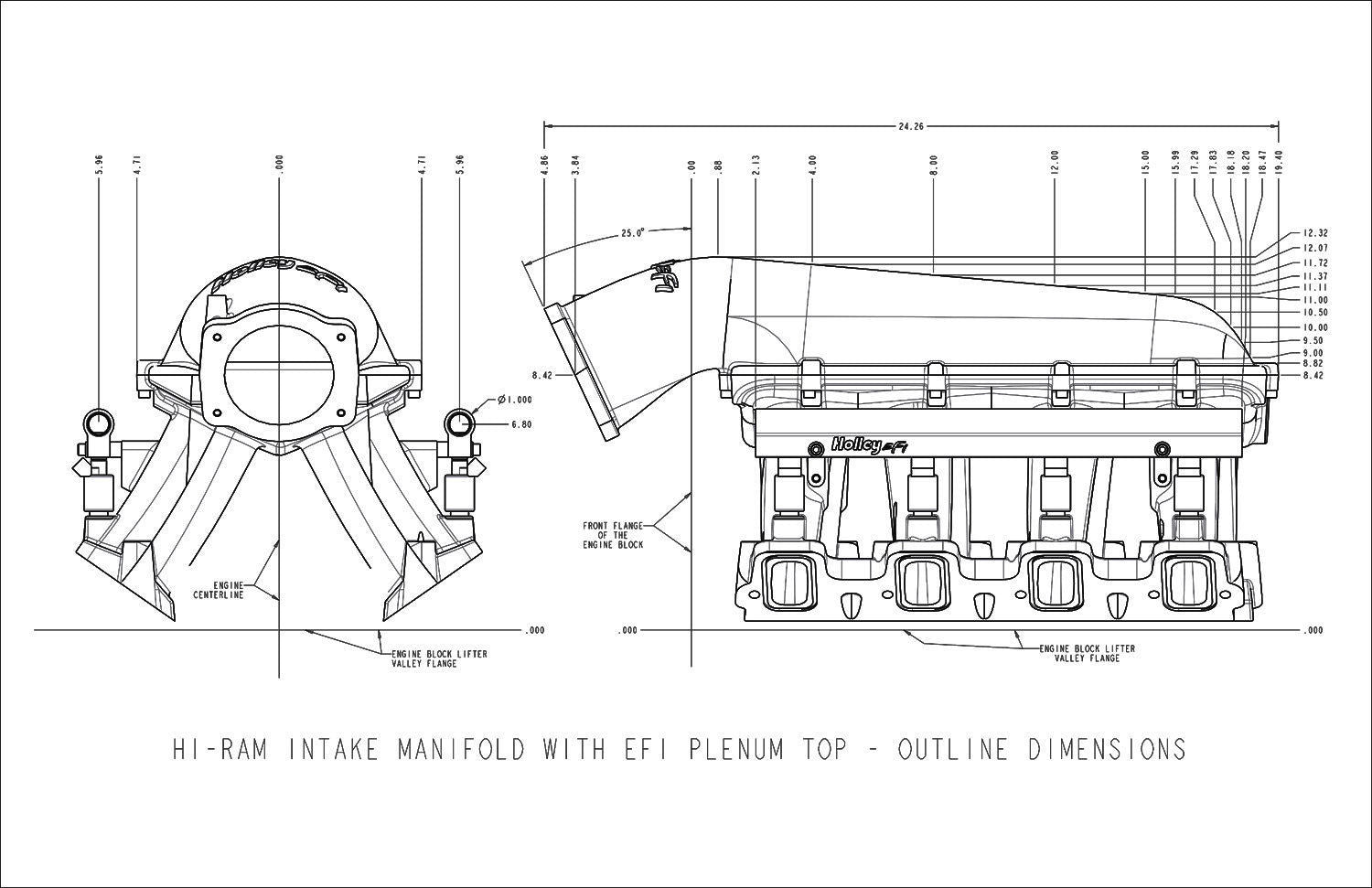

  • Base Plenum Top Mounting Flange Height – 8.42" to the lifter valley cover flange on engine block.
  • Total Height with 92/102mm EFI Plenum Top – 12.32" to the lifter valley cover flange on engine block.
  • Port Size – 2.49" Height x 1.21" Wide
  • Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
  • Plenum Top Gasket Type – 3/32" Round O-ring Cord
  • Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height – 8.42" (from engine block lifter valley cover flange), Longitudinal Location – 3.84" (forward from engine block front flange), Angle – 25 deg. (down from vertical)
  • Runner Length – 6.50", As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in²
Specs:Application: Chevy small block Gen III/IV LS3/L92 6.2L V8.
Engine Block Style:Stock/OEM standard deck
Injection Style:Multi-port
Basic Operating RPM Range:Idle-8,000
Intake Section Included:Complete
EGR:No
Injectors Included:No
Fuel Rails Included:Yes
Aftermarket Fuel Rail Required:No
Throttle Body Included:No
Throttle Body Bore Size:92mm
Supplemental Bosses Cast-In:Yes
Supplemental Bosses Machined:No
Supplemental Boss Quantity:Eight
Runners Included:Yes
Runners Removable:No
Plenum Material:Aluminum
Plenum Finish:Natural
Base Material:Aluminum
Base Finish:Natural
Quantity:Sold individually.
Notes:Longitudinal plenum top with fuel rails machined for -8 AN O-ring fittings.


.



Manufacturer Information

  • Manufacturer: Holley
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
