HOLLEY SBC EFI CRANK TRIGGER
SKU:HO556-116
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information

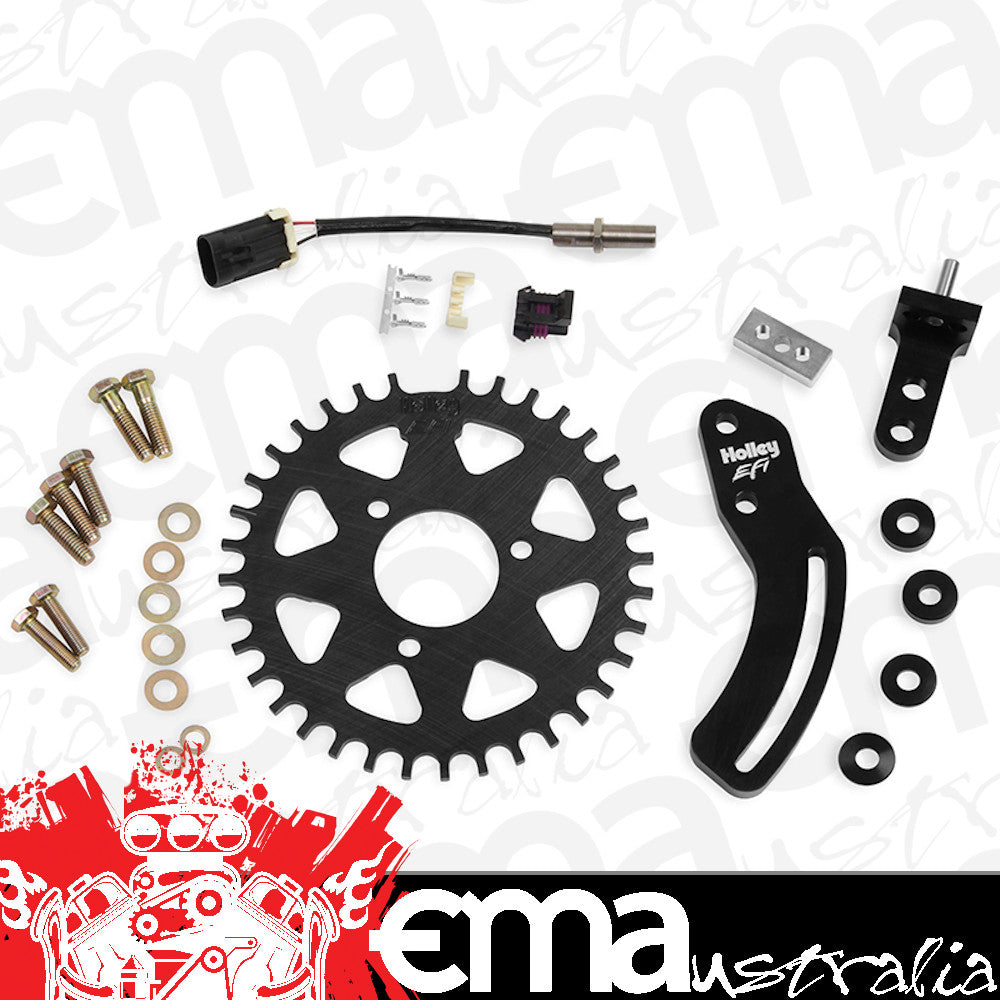

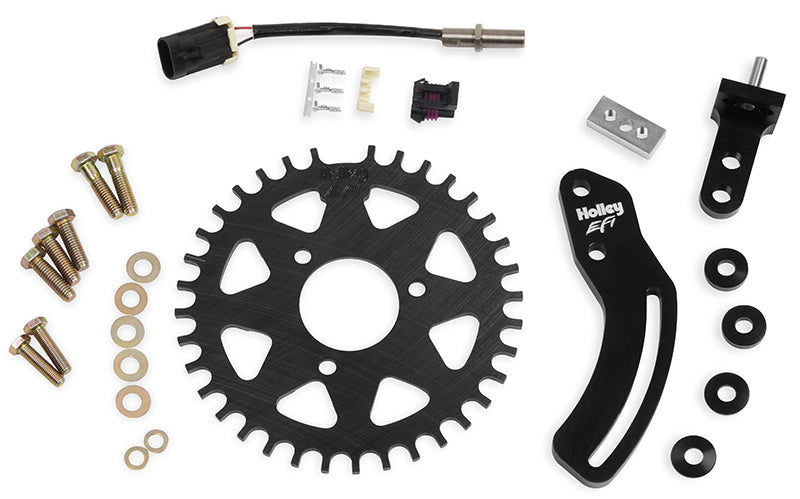

Holley's EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD "style" Crank trigger. It is designed for use on early model small block Chevy applications using a standard ATI or Fluidamper "style" balancer up to 7-1/4"" in diameter.
- 8" diameter, 1/4" thick, billet steel, 36-1 tooth, crank wheel with Black Zinc Oxide finish for superior corrosion resistance & striking good looks.
- Crank wheel centers off of the balancer's hub, eliminating the need for a centering ring
- All billet, 6061-T6 aluminum sensor mounting brackets with "bright-dipped" black anodized finish & Laser etched Holley EFI logo
- Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustment
- All Grade 8 & Mil. Spec mounting hardware
Features:
