Sniper HO550-541 EFI XFLOW 900CFM Fuel Injection System
SKU:HO550-541
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information

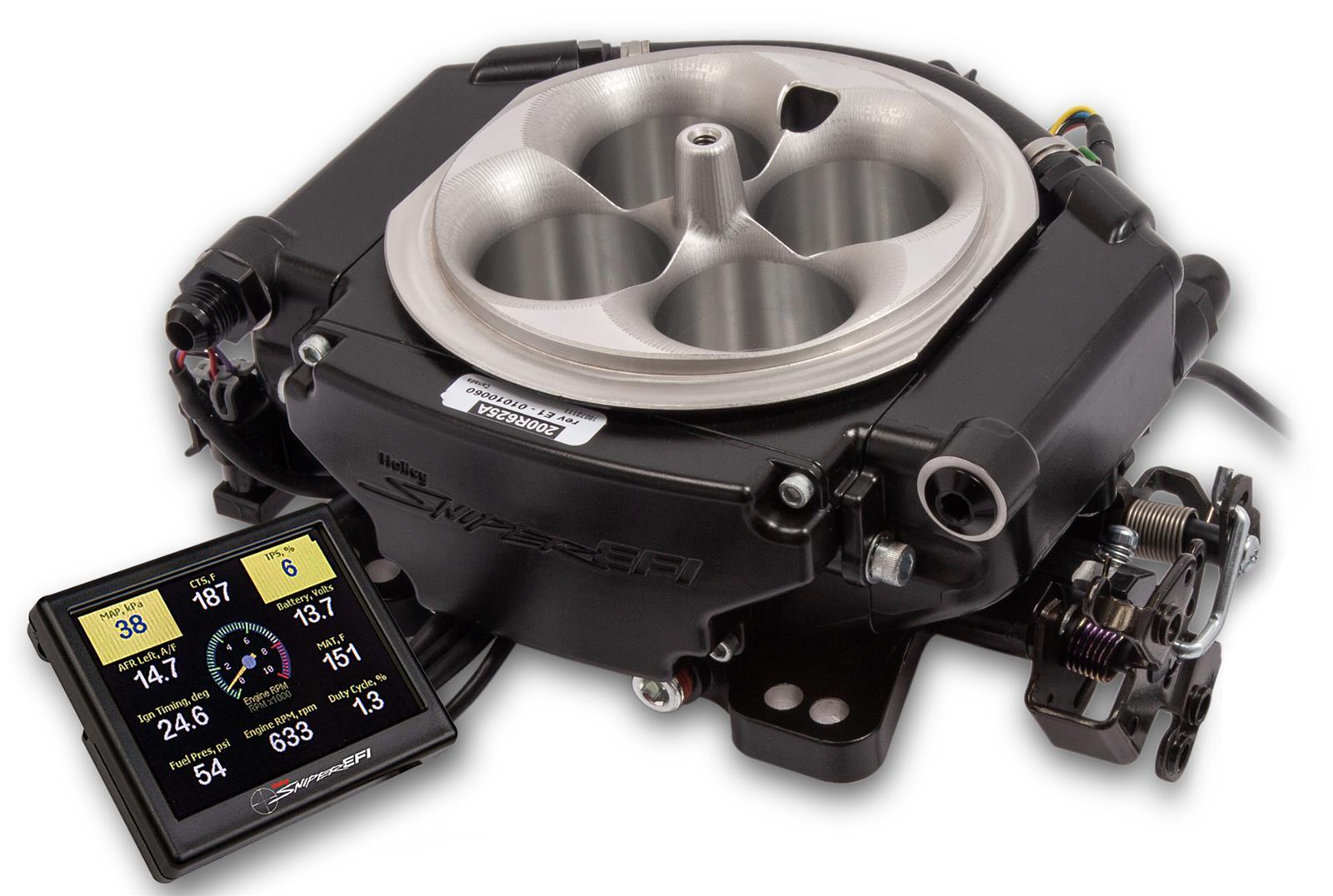

Holley Sniper EFI XFLOW fuel injection systems are packed with four 120 lbs.-hr. injectors and 900 cfm of airflow.
These EFI systems deliver enough airflow for 800 plus naturally-aspirated horsepower, and work great with CD ignitions. They feature contoured entry corridors for maximum breathing potential, and the dual-pattern mounting flange makes these true bolt-on replacements for any 4-barrel carburetor. When you're serious about making big power with a throttle-body EFI, order Holley Sniper EFI XFLOW fuel injection systems.
Some of the many features, items, and specs include:
- 2.5 bar MAP sensor
- Dual-pattern mounting flange is designed to fit 4150 flange and spread-bore manifolds
- Sniper XFLOW ECU is throttle-body mounted and creates a basic calibration after you answer a few questions on the touchscreen display
- Bosch wideband O2 sensor provides real-time fuel map learning for pure driving enjoyment
- OEM-style TPS and IAC sensors for reliability
- XFLOW ECU can control timing when used with magnetic pickup distributor for rev limiting capabilities
- USB to CAN tuning cable allows download of Sniper EFI software for advanced boost control features
- XFLOW supports wet or dry nitrous applications
- Six ground-triggered outputs for controlling accessories
- Three 0 to 5 V outputs for monitoring additional sensors (fuel, oil, pressure, etc…)
- Compatible with Holley EFI gauges
- Self Tuning:Yes
- User Tunable:Yes
- Maximum Horsepower with Gas:800
- Timing Control Compatible:No
- EGR:No
- Transmission Controller Included:No
- Injection Style:Throttle body
- Metering Style:Speed density
- Power Adder Compatible:Yes
- Intake Manifold Included:No
- Fuel Rails Included:No
- Throttle Body Included:Yes
- Throttle Body Mounting Flange:4-barrel spread bore
- Venturi Quantity:4
- Throttle Body Material:Aluminum
- Throttle Body Finish:Black ceramic
- Injectors Included:Yes
- Injector Size (lbs/hr):120 lbs./hr.
- Calibration Module Included:No
- ECM Included:Yes
- Wiring Harness Included:Yes
- Oxygen Sensor Included:Yes
- Fuel Pump Included:No
- Fuel Pressure Regulator Included:No
- Distributor Included:No
- MAP Sensor Included:Yes
- IAT Sensor Included:Yes
- TPS Sensor Included:Yes
- IAC Motor Included:Yes
- Quantity:Sold as a kit.
- Notes:An external fuel pressure regulator is required.
