Ice Ignition ICE-IK0390

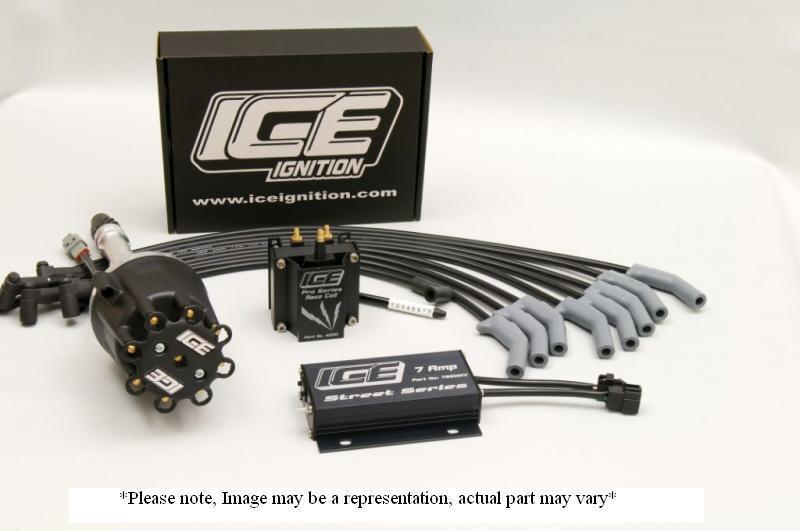

7 Amp 2 Step digital ignition system designed for supercharged or turbocharged engines with carburettors. The system works in conjunction with a 3 bar MAP sensor allowing vacuum and boost referenced timing control. 7 Amp 2 Step Street / Race Boost Control Ignition Kit includes:

• ICE billet distributor featuring 6061 aircraft grade aluminium housing, hardened and precision ground 4130 chromoly shaft, high temperature upper roller bearing and oil impregnated sintered iron lower bush, triggering via Hall Effect vane sensor unaffected by dirt, moisture or vibration, generally avaiable with the option of small or large HEI style cap with plug wire retainer and spheroidal graphite iron, silicon impregnated bronze or treated steel distributor gear.
• 7 Amp 2 Step digital ignition control featuring built in 10 degree "mechanical" advance curve, push button selectable boost retard from .1 to 1 degree of timing retard per pound of boost, automatic vacuum advance of up to 10 degrees at 15 inches of vacuum, two stage rpm limiter adjustable in 100rpm increments from 1000rpm to 10900rpm via push button switches, switchable dual table distributor and crank trigger spark programs and dedicated tach output.
• 3 bar map sensor and wiring.
• High voltage ICE Pro Series Race Coil.
• 9mm Pro 100 Series plug wire kit to suit your engine including number markers.

Specs:Application: Ford Windsor 289-302C.I.D. V8Distributor Included: YesDistributor Type: HEI Style Large CapDistributor Gear: SG IronIgnition Controller Included: YesIgnition Controller Type: 7 Amp Race Boost Control SeriesCoil Included: YesCoil Type: 4200 Pro SeriesMap Sensor Included: YesMap Sensor Type: 3 Bar Type with WiringLeads Included: YesLead Type: 9mm Pro 100 WiresQauntity: Sold as a kit
