Name: Holden V8 253-308 C.I.D With V 7 Amp Boost Control Kit Carb VN Heads Lc Bg Dist ICE Ignition ICE-IK0477
Brand: ICE Ignition
SKU: ICE-IK0477
Price: 1870.00 AUD
Availability: InStock

Holden V8 253-308 C.I.D With V 7 Amp Boost Control Kit Carb VN Heads Lc Bg Dist ICE Ignition ICE-IK0477

1 4

ICE Ignition

ICE Ignition Part No. ICE-IK0477

$1,870.00 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:ICE-IK0477

Expert Advice Talk to real engine builders

Fast Dispatch Australia Wide Shipping

Family Owned Trusted since 1988

Secure Checkout Safe & Encrypted Payments

Availability: In-Store - Ready to Ship^*

✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666

View full details

Product Information

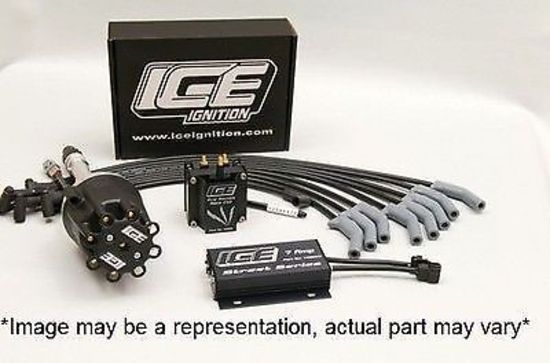

ICE IGNITION 7 AMP STREET/RACE BOOST CONTROL LARGE CAP/BRONZE GEAR DISTRIBUTOR KIT SUIT HOLDEN CARBURETED V8 WITH VN HEADS IK0477

Product Information

ICE IGNITION 7 AMP STREET/RACE BOOST CONTROL LARGE CAP/BRONZE GEAR DISTRIBUTOR KIT SUIT HOLDEN CARBURETED V8 WITH VN HEADS IK0477

Technical Information

Features

The 7 Amp 2 Step digital ignition system is designed for supercharged or turbocharged engines with carburettors. The system works in conjunction with a 3 bar MAP sensor allowing vacuum and boost referenced timing control.The Street/Race Boost Control series is also supported by a 3 year warranty for street use (2 years for race use)! The 7 Amp 2 Step Street / Race Boost Control Ignition Kit includes: ICE billet distributor featuring 6061 aircraft grade aluminium housing, hardened and precision ground 4130 chromoly shaft, high temperature upper roller bearing and oil impregnated sintered iron lower bush, triggering via Hall Effect vane sensor unaffected by dirt, moisture or vibration, generally avaiable with the option of small or large HEI style cap with plug wire retainer and nylon distributor gear
7 Amp 2 Step digital ignition control featuring built in 10 degree "mechanical" advance curve, push button selectable boost retard from.1 to 1 degree of timing retard per pound of boost, automatic vacuum advance of up to 10 degrees at 15 inches of vacuum, two stage rpm limiter adjustable in 100rpm increments from 1000rpm to 10900rpm via push button switches, switchable dual table distributor and crank trigger spark programs and dedicated tach output
3 bar map sensor and wiring
High voltage ICE Pro Series Race Coil
9mm Pro 100 Series plug wire kit to suit your engine including number markers

Specifications

Manufacturer: ICE Ignition
MPN: Not provided
UPC: Not provided
Our Part Number: ICE-IK0477

N Heads:
Distributor Included: Yes
Distributor Type: HE
I Large Style Cap:
Distributor
Gear: SI Bronze
Ignition Controller Included: Yes
Ignition Controller Type: 7 Amp Street/Race Boost Control Series
Coil Included: Yes
Coil Type: 4200 Pro Series
Map Sensor Included: Yes
Map Sensor Type: 3 Bar Type with Wiring
Leads Included: Yes
Lead Type: 9MM Pro 100 Wires
Quantity: Sold as a kit

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

ICE Ignition

ICE Ignition products are available from Engine Master Australia, supported by practical product knowledge and Australia-wide delivery.
