ICE Ignition | ICE-IK0522

ICE-IK0522

Name: ICE Ignition | ICE-IK0522
Brand: ICE Ignition
SKU: ICE-IK0522
Price: 2779.90 AUD
Availability: InStock

1 4

ICE Ignition

ICE Ignition Part No. ICE-IK0522

$2,779.90 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:ICE-IK0522

Expert Advice Talk to real engine builders

Fast Dispatch Australia Wide Shipping

Family Owned Trusted since 1988

Secure Checkout Safe & Encrypted Payments

Availability: In-Store - Ready to Ship^*

✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666

View full details

Product Information

ICE Digital Inductive Spark technology is the most affordable, powerful and reliable solution for extracting maximum power from any V8 carburettted engine using petrol, methanol or LP Gas.10 Amp 2 Step race ignition system for hard core supercharged or turbocharged engines with carburettors. The system works in conjunction with a 3 bar MAP sensor allowing vacuum and boost referenced timing control. Not for road use.

Product Information

Technical Information

Features

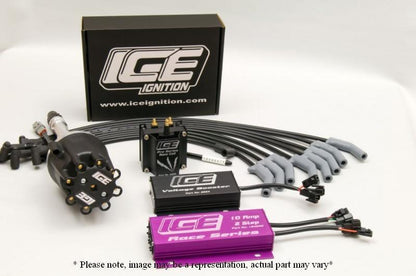

10 Amp 2 Step Race Series Boost Control Ignition Kit includes: ICE billet distributor featuring 6061 aircraft grade aluminium housing, hardened and precision ground 4130 chromoly shaft, high temperature upper roller bearing and oil impregnated sintered iron lower bush, triggering via Hall Effect vane sensor unaffected by dirt, moisture or vibration, generally avaiable with the option of small or large HEI style cap with plug wire retainer and spheroidal graphite iron, silicon impregnated bronze or treated steel distributor gear.
10 Amp 2 Step digital ignition control featuring built in 10 degree "mechanical" advance curve, push button selectable boost retard from.1 to 1 degree of timing retard per pound of boost, automatic vacuum advance of up to 10 degrees at 15 inches of vacuum, two stage rpm limiter adjustable in 100rpm increments from 1000rpm to 10900rpm via push button switches, switchable dual table distributor and crank trigger spark programs and dedicated tach output.
3 bar map sensor and wiring.
24 volt booster.
High voltage ICE Pro Series Race Coil.
9mm Pro 100 Series plug wire kit to suit your engine including number markers.

Specifications

Manufacturer: ICE Ignition
MPN: Not provided
UPC: Not provided
Our Part Number: ICE-IK0522

Distributor Included: Yes
Distributor Type: HE
I Small Style Cap: Distributor Gear: SG Iron
Ignition Controller Included: Yes
Ignition Controller Type: 10 Amp Race Boost Control Series
Coil Included: Yes
Coil Type: 4200 Pro Series
Map Sensor Included: Yes
Map Sensor Type: 3 Bar Type with Wiring
Leads Included: Yes
Lead Type: 9mm Pro 100 Wires
Qauntity: Sold as a kit
