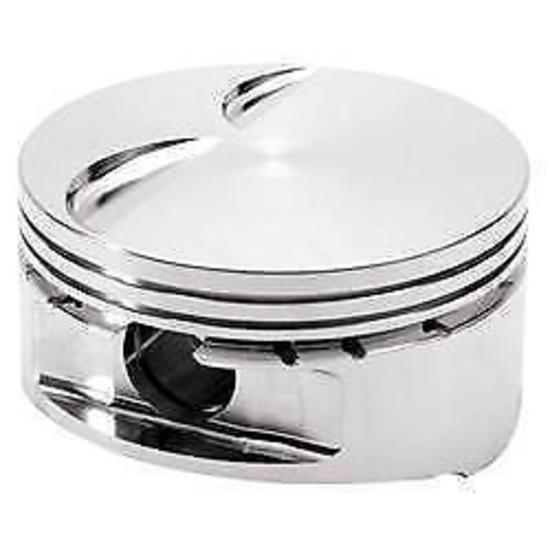

JE Pistons J194881 Je 15¡ Forged Pistons 3.905" Bore 4" Stroke 6.200" Rod Gm LS1 383 V8

JE Pistons J194881 Je 15¡ Forged Pistons 3.905" Bore 4" Stroke 6.200" Rod Gm LS1 383 V8

JE-J194881
$1,804.15 AUD
$1,804.15 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
 More payment options

Pickup available at 32 Fallon Street

Usually ready in 24 hours
JE Pistons 15 degree LS1 series pistons are designed for stock rods (.945 in. diameter wrist pin) or aftermarket/small block Chevy (.927 in. diameter wrist pin) connecting rods. They have a flat top design that achieves compression ratios suitable for normally aspired applications and are machined for 1.5, 1.5, 3.0mm rings.


Application: Chev/Holden LS1 V8 383CI
Bore (in):3.905 in.
Bore (mm):99.187mm
Piston Style:Flat top, with two valve reliefs
Piston Material:Forged aluminum
Compression Distance (in):1.050 in.
Piston Head Volume (cc):+2.00cc
Wrist Pin Style:Press-fit or floating
Pin Diameter (in):0.927 in.
Piston Ring Thickness:1.50mm x 1.50mm x 3.00mm
Quantity:Sold as a set of 8.
Notes:Oil rail support included.
Notes: Pins and Spiro locks included.

Manufacturer Part Number:
