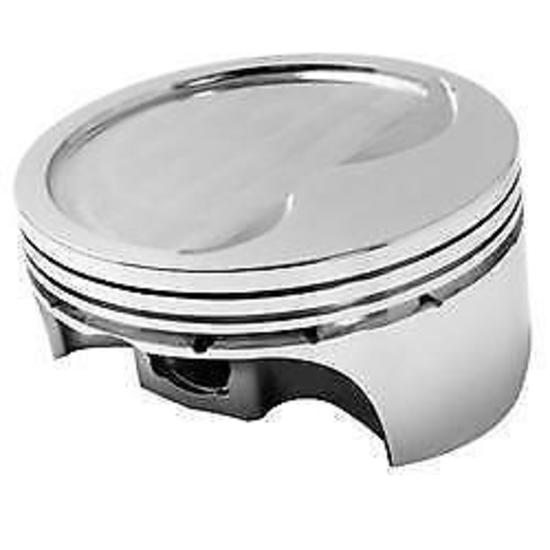

Chev/Holden LS1 & LS6 series V8 J243018 Je Fsr Forged -5Cc Flat Top Pistons Gm/Holden 4.125" Bore JE Pistons JE-J243018

Chev/Holden LS1 & LS6 series V8 J243018 Je Fsr Forged -5Cc Flat Top Pistons Gm/Holden 4.125" Bore JE Pistons JE-J243018

1 2
JE Pistons
JE Pistons Part No. JE-J243018
$1,517.40 AUD $1,441.53 AUD SAVE 5% Applied automatically in cart · Ends Mon 8am AEDT
Taxes included. Shipping calculated at checkout.

JE-J243018

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Availability: In-Store - Ready to Ship*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

JE FSR FORGED -5CC FLAT TOP PISTONS GM/HOLDEN LS1 & LS6 4.125" BORE J243018 JE Pistons' newest FSR slipper forging design allows for the use of the most popular stroke and rod combinations while eliminating reluctor wheel clearance problems. These pistons are lightweight and extremely durable. They're machined for 1.5, 1.5, 3.0mm rings and have an inverted dome design to achieve an optimum compression ratio with forced induction applications

Product Information

JE FSR FORGED -5CC FLAT TOP PISTONS GM/HOLDEN LS1 & LS6 4.125" BORE J243018 JE Pistons' newest FSR slipper forging design allows for the use of the most popular stroke and rod combinations while eliminating reluctor wheel clearance problems. These pistons are lightweight and extremely durable. They're machined for 1.5, 1.5, 3.0mm rings and have an inverted dome design to achieve an optimum compression ratio with forced induction applications

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
JE Pistons
MPN
Not provided
UPC
Not provided
Our Part Number
JE-J243018
C.I.D: 427
Bore (in): 4.125 in
Bore (mm): 104.775mm
Piston Style: Dish, with two valve reliefs
Piston Material: Forged aluminum
Compression Distance (in): 1.115 in
Piston Head Volume (cc): +5.00cc
Wrist Pin Style: Press-fit or floating
Pin Diameter (in): 0.927 in
Piston Ring Thickness: 1.50mm x 1.50mm x 3.00mm
Quantity: Sold as a set of 8
Notes:
Oil rail support included.Notes: Includes Pin,Wire locks, Smooth Finished Crown, Accumulator Grooves, Contact Reduction Grooves, Double Forced Pin Oilers
