Chev / Holden LS2 J312041 Je Fsr Forged Dish Top Pistons Gm 4.010" Bore -26.6Cc 6.125" Rod JE Pistons JE-J312041

Chev / Holden LS2 J312041 Je Fsr Forged Dish Top Pistons Gm 4.010" Bore -26.6Cc 6.125" Rod JE Pistons JE-J312041

1 2
JE Pistons
JE Pistons Part No. JE-J312041
$1,899.50 AUD $1,804.53 AUD SAVE 5% Applied automatically in cart · Ends Mon 8am AEDT
Taxes included. Shipping calculated at checkout.

JE-J312041

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Availability: In-Store - Ready to Ship*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

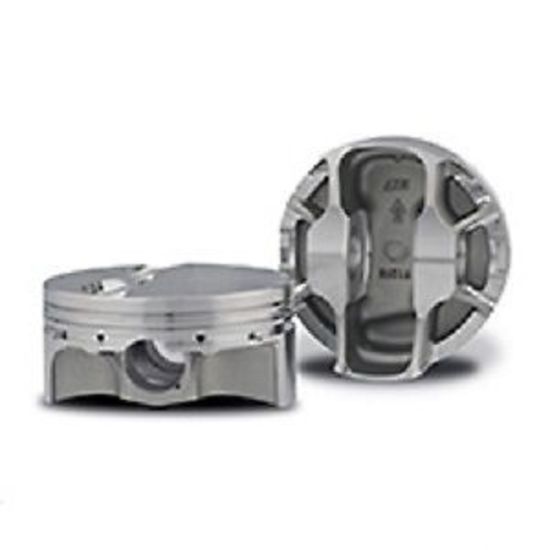

JE PISTONS ASYMMETRICAL FSR FORGED DISH TOP PISTONS J312041 GM LS2 4.010" BORE -26.6cc 6.125" ROD 4.010" bore, 4.000" stroke, 6.125" rod length, -26.6cc dome volume JE Pistons brand new GM LS Dish Asymmetrical FSR (Forged Side Relief) forging design allows for the use of the most popular stroke and rod combinations while eliminating reluctor wheel clearance problems. Asymmetrical forging design maintains a larger skirt on the heavily stressed major thrust side, while reducing friction with a smaller skirt on the minor thrust side. The result is a high strength, lightweight piston that significantly reduces friction in your engine. Lightweight and extremely durable, these pistons are machined for 1.2mm, 1.5mm, 3.0mm rings

Product Information

JE PISTONS ASYMMETRICAL FSR FORGED DISH TOP PISTONS J312041 GM LS2 4.010" BORE -26.6cc 6.125" ROD 4.010" bore, 4.000" stroke, 6.125" rod length, -26.6cc dome volume JE Pistons brand new GM LS Dish Asymmetrical FSR (Forged Side Relief) forging design allows for the use of the most popular stroke and rod combinations while eliminating reluctor wheel clearance problems. Asymmetrical forging design maintains a larger skirt on the heavily stressed major thrust side, while reducing friction with a smaller skirt on the minor thrust side. The result is a high strength, lightweight piston that significantly reduces friction in your engine. Lightweight and extremely durable, these pistons are machined for 1.2mm, 1.5mm, 3.0mm rings

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
JE Pistons
MPN
Not provided
UPC
Not provided
Our Part Number
JE-J312041
Includes: .927 x 2.250 straight wall carbon steel wrist pin
Wire locks:
Bore (in): 4.010 in
Bore (mm): 101.854mm
Oversize: 010 LS2
Piston Style: Dish, with two valve reliefs
Piston Material: Forged aluminum
Compression Distance (in): 1.115 in
Piston Head Volume (cc): -26.6cc
Connecting Rod: 6.125 in
Pin Diameter (in): 0.927 in
Stroke: 4.000"
Piston Ring Thickness: 1.20mm x 1.50mm x 3.00mm
Quantity: Sold as a set
Notes: Forged Side Relief / Forced Induction
