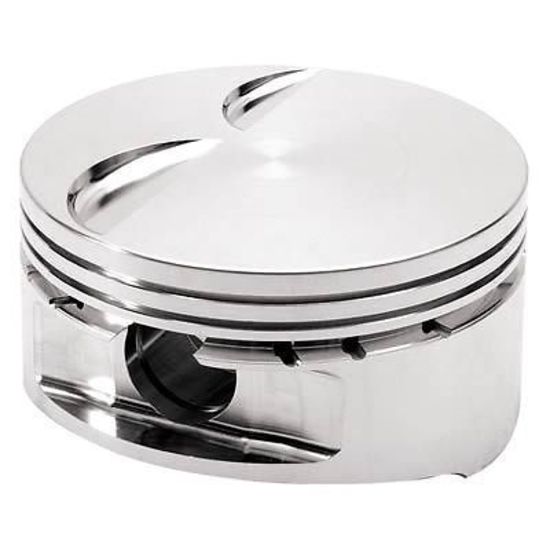

JE Pistons P288003SRP Chev LS2 STD Bore Forged Dish Top Piston & Ring Set

P288003SRP Chev LS2 STD Bore Forged Dish Top Piston & Ring Set

1 2
JE Pistons
JE Pistons Part No. JE-P288003SRP
Sale Sold out
Taxes included. Shipping calculated at checkout.

JE-P288003SRP

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options View full details

Product Information

JE PISTONS CHEV LS2 STD BORE FORGED DISH TOP PISTON & RING SET P288003SRPJE Pistons Inverted Dome Professional Series pistons feature advanced lightweight FSR forging that eliminates stress concentrations for superior strength,they are up to 20% lighter than traditional equivalent and have high-silicon 4032 aluminum alloy for reduced piston-to-wall clearance and quiet operation. Accumulator grooves for improved ring seal.
Designed for normally aspirated or moderate forced induction/nitrous applications, compatible with GM L92 Cylinder Heads, and now includes a high performance skirt coating!RINGS INCLUDED
  • Lightweight, low friction metric ring package included
  • 1.2mm top ring, 1.5mm Napier 2nd ring, 3.0mm standard tension oil ring
  • Napier 2nd ring for improved oil control
  • Minimal filing required
    PINS AND LOCKS
  • High quality 2.250" pin further reduces reciprocating weight
  • Carbon steel wire locks included
  • Specs:Application: Chev / Holden LS2 6.0L/364 C.I.D. (STD Bore) L92 Heads.Bore (in): 4.000 in.
    Bore (mm): 101.600mm
    Piston Style: Inverted Dome
    Piston Material: Forged aluminum
    Compression Height (in): 1.315 in.
    Piston Head Volume (cc): -14.3cc
    Connecting Rod: 6.125 in.
    Pin Diameter (in): 0.927 in.
    Stroke: 3.622"
    Top Ring Thickness: 1.2mm
    Top Ring Material: Steel
    Top Ring Facing Material: Steel
    Second Ring Thickness: 1.5mm
    Second Ring Material: Cast iron
    Second Ring Facing Material: Cast iron
    Oil Ring Thickness: 3.0mm
    Oil Ring Material: Chrome plated carbon steel
    Oil Ring Tension: Standard
    Quantity: Sold as a kit.



Product Information

JE PISTONS CHEV LS2 STD BORE FORGED DISH TOP PISTON & RING SET P288003SRPJE Pistons Inverted Dome Professional Series pistons feature advanced lightweight FSR forging that eliminates stress concentrations for superior strength,they are up to 20% lighter than traditional equivalent and have high-silicon 4032 aluminum alloy for reduced piston-to-wall clearance and quiet operation. Accumulator grooves for improved ring seal.
Designed for normally aspirated or moderate forced induction/nitrous applications, compatible with GM L92 Cylinder Heads, and now includes a high performance skirt coating!RINGS INCLUDED
  • Lightweight, low friction metric ring package included
  • 1.2mm top ring, 1.5mm Napier 2nd ring, 3.0mm standard tension oil ring
  • Napier 2nd ring for improved oil control
  • Minimal filing required
    PINS AND LOCKS
  • High quality 2.250" pin further reduces reciprocating weight
  • Carbon steel wire locks included
  • Specs:Application: Chev / Holden LS2 6.0L/364 C.I.D. (STD Bore) L92 Heads.Bore (in): 4.000 in.
    Bore (mm): 101.600mm
    Piston Style: Inverted Dome
    Piston Material: Forged aluminum
    Compression Height (in): 1.315 in.
    Piston Head Volume (cc): -14.3cc
    Connecting Rod: 6.125 in.
    Pin Diameter (in): 0.927 in.
    Stroke: 3.622"
    Top Ring Thickness: 1.2mm
    Top Ring Material: Steel
    Top Ring Facing Material: Steel
    Second Ring Thickness: 1.5mm
    Second Ring Material: Cast iron
    Second Ring Facing Material: Cast iron
    Oil Ring Thickness: 3.0mm
    Oil Ring Material: Chrome plated carbon steel
    Oil Ring Tension: Standard
    Quantity: Sold as a kit.
