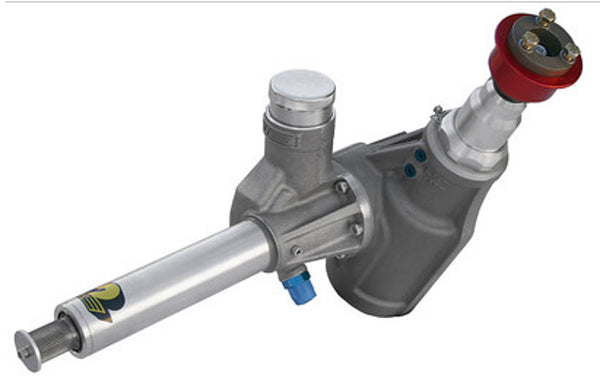

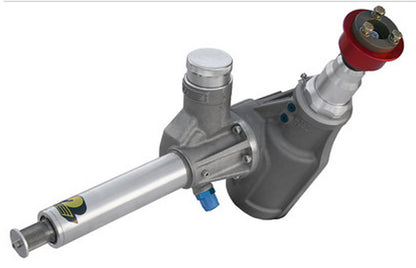

Gen 2 Power Steer Box Medium w/ Quick Release Hub
Product Information
The Gen2 power steering gear was the product of years of R&D and has helped revolutionise the sprint car steering system with its integral reservoir and in-board mount design. Since its initial release, the Gen2 has quickly become the sprint car industry's most widely used power steering system.
The Gen2 power steering gears is the trusted choice of America's top drivers and premier race teams...Donny Schatz, Steve Kinser, Jason Johnson, Bryan Clauson, Greg Hodnett, Brad Loyet, Craig Dollansky, Shane Stewart, Dave Darland, and the list goes on and on. The results undoubtedly speak for themselves!
Features & Benefits
Built-in Reservoir:
The reservoir is built into the live hub tube of the gear. This design eliminates turbulence, aeration, and provides the most cooling of any tank KSE has tested. The easy fill 2" diameter cap is vented and has a built-in dipstick.
Positive Feel:
The four-degree valve and 20% faster lead ball screw transfers quicker front wheel feedback to the hydraulic assist to improve front wheel stability. The inboard mount improves top steering gear mount rigidity, which reduces the rotation of the gear box in the chassis when steering.
Improved Durability:
Solid model design and structural analysis were utilised to design a casting that is considerably stronger. The cross shaft tooth form is 40% stronger. The inboard mount eliminates the steering gear as a structural member of the chassis.
Less Weight:
The Gen2 is one of the lightest steering gear currently on the market! It is comparable to the weight of the KSE Pro Lite gear and is 25% lighter than the previous KSE gear. Check out our new "Black Series" gear for an even lighter weight steering gear.
Simplified Plumbing:
A #10 line from the built-in reservoir to the pump inlet, and a #6 pressure line from the pump to the pressure port is all that is needed. The return to the reservoir is internally ported. The Gen2 also has standard #4 ORB wing slider ports
Easier and Cleaner Installation:
The inboard mount makes installation and removal quicker and easier. It also improves leg room and minimises throttle linkage issues. The built-in reservoir and internal plumbing eliminate hoses, fittings and a remote-mounted reservoir. The built-in wing slide ports eliminate fittings and hoses, further simplifying installation.
No "Tight" Spots:
Tight spots are caused by the steering load being greater than the pressure the pump can deliver. Output torque has been increased by 15% relative to pressure. The inboard mount also eliminates binding of the steering gear due to chassis flex.
Value:
The industry-leading Gen2 is priced comparable to the previous standard KSE gear with a dead tube reservoir. Allin all, the outstanding quality, durability, and the extras add up to an amazing value. Don't be fooled by "warranties", we pride ourselves on producing the absolute best products at the fairest prices with unmatched service.
