COMP Cams 26906CS-KIT LS6+ Beehive Valve Spring Kit w/ Chromemoly Steel Retainers, 0.580" Max Lift

26906CS-KIT LS6+ Beehive Valve Spring Kit w/ Chromemoly Steel Retainers, 0.580" Max Lift

Name: COMP Cams 26906CS-KIT LS6+ Beehive Valve Spring Kit w/ Chromemoly Steel Retainers, 0.580" Max Lift
Brand: COMP Cams
SKU: CO26906CS-KIT
Price: 607.40 AUD
Availability: InStock

1 1

COMP Cams

COMP Cams Part No. CO26906CS-KIT

~~$607.40 AUD~~ $577.03 AUD SAVE 5% Applied automatically in cart · Ends Mon 8am AEDT

Taxes included. Shipping calculated at checkout.

SKU:CO26906CS-KIT

Expert Advice Talk to real engine builders

Fast Dispatch Australia Wide Shipping

Family Owned Trusted since 1988

Secure Checkout Safe & Encrypted Payments

✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666

View full details

Product Information

The COMP Cams 0.575" " Lift Beehive LS6+ Valve Spring Kit Features:

4% higher load and .030" higher lift capacity than Blue GM LS6 Springs

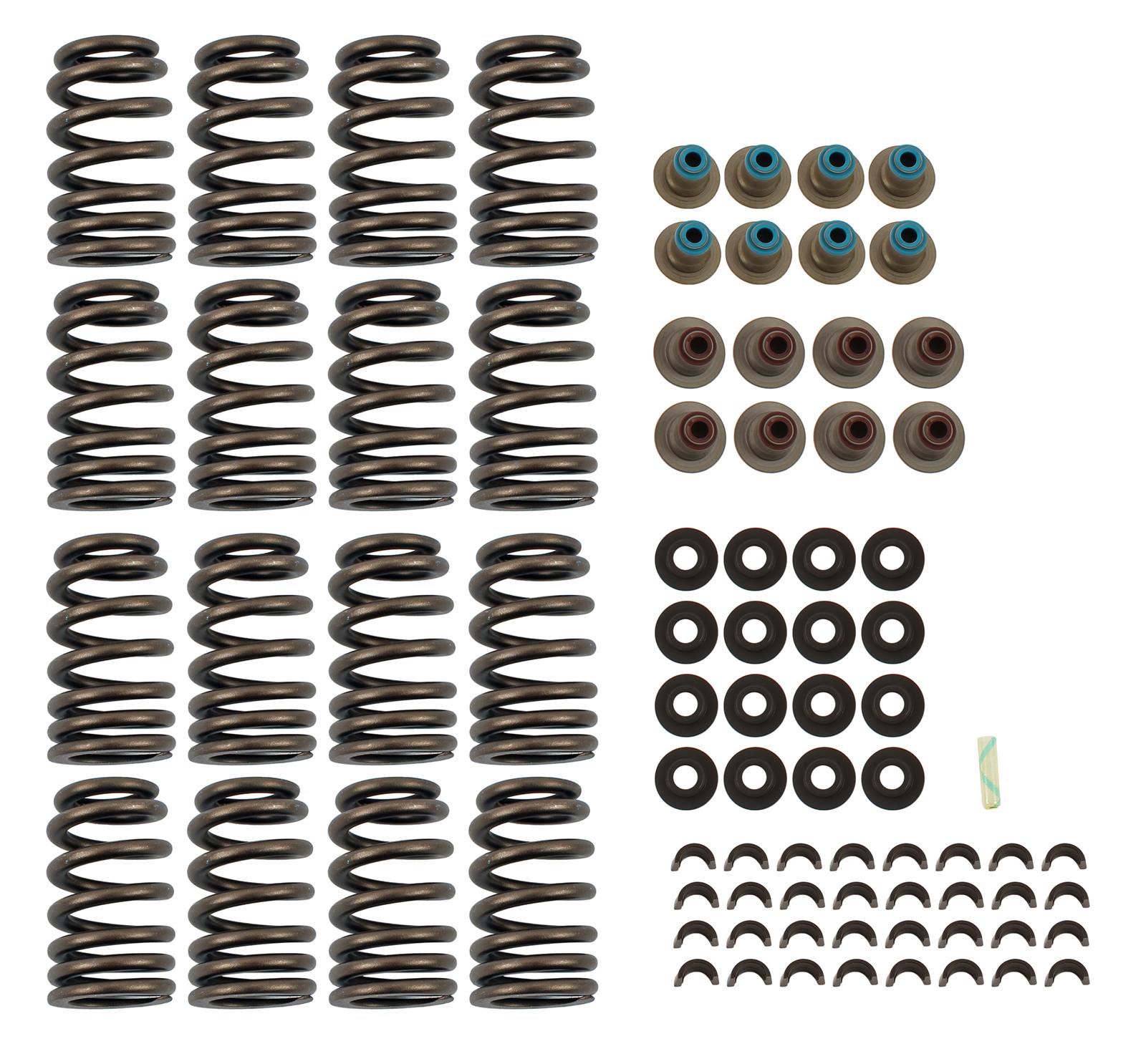

Includes springs, Chromemoly retainers, valve locks, Seals, and spring seats

Product Information

The COMP Cams 0.575" " Lift Beehive LS6+ Valve Spring Kit Features:

4% higher load and .030" higher lift capacity than Blue GM LS6 Springs
Includes springs, Chromemoly retainers, valve locks, Seals, and spring seats

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications

Manufacturer: COMP Cams
MPN: Not provided
UPC: 036584394211
Our Part Number: CO26906CS-KIT

California Proposition 65: WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Compatible Shims: 4753
Spring Top Outside Diameter: 1.077
Spring Top Inside Diameter: 0.655
Spring Bottom Outside Diameter: 1.282
Spring Bottom Inside Diameter: 0.860
Locator Thickness: 0.0600
Locator Outer Diameter: 1.300
Locator Inner Diameter: 0.510
Valve Seal Outer Diameter: 0.600
Includes Valve Seals: Yes
Valve Seal Type: Steel Jacketed Viton
Includes Spring Seats: Yes
Includes Locks: Yes
Retainer Material: Chromemoly Steel
Includes Retainers: Yes
Max Lift: 0.580
Valve Spring Type: Beehive
Seat Pressure: 92
Seat Height: 1.800
Coil Bind Height: 1.181
Engine Fitment: GM LS Cathedral and Rectangle Port Applications
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A

Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

COMP Cams

COMP Cams develops performance camshafts and coordinated valvetrain components for a broad range of engine platforms. The range includes camshafts, lifters, valve springs, rocker systems, timing components and matched kits for street and competition builds.
