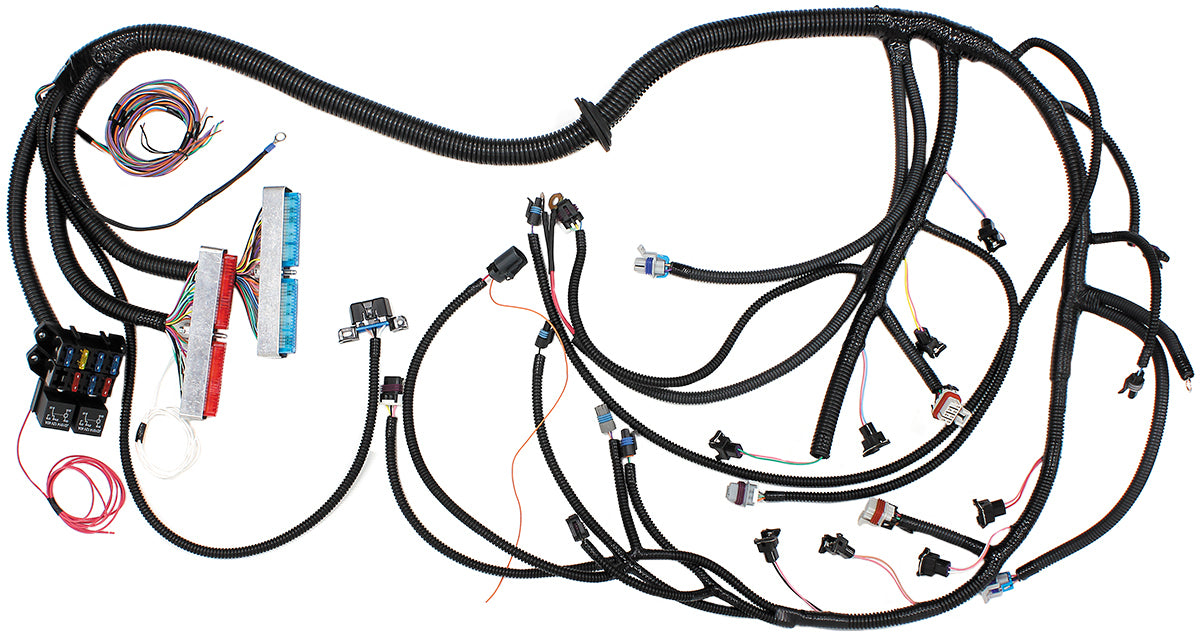

Aeroflow Performance Products AF49-1512 LS1 STANDALONE WIRING LOOM HARNESS SUITS MANUAL TRANS

LS1 STANDALONE WIRING LOOM HARNESS SUITS MANUAL TRANS

Skip to product information
1 of 3
Aeroflow Performance Part No. AF49-1512
Regular price $1,202.95 AUD
Regular price Sale price $1,202.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:AF49-1512

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Quantity
Availability: In-Store - Ready to Ship*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

Aeroflow Performance wiringharness is designed to be a complete plug and play harnessfor EFI GM LS1/LS6 series engines. It is a complete standalone replacement wiring harness that suits GM LS1 engines (1997 to 2002) with drive by cable throttle body and T56 manual transmissions or non-electronic controlled automatic transmissions. Perfect for retrofitting into older muscle cars and street rods or newer non-emissions-controlled vehicles with a four-wire hook-up (switched power, constant power and ground connections). The harness features a sliding grommet seal for a leak proof installation and 1.2 to 1.5 meters (3.9 to 4.9 feet) of length from the rear of the cylinder head to the PCM mounting position under the vehicle dashboard. The harnessis constructed with GM Delphi connectors and terminals and high temperature wires. It includes all wiring that is required by the Powertrain Control Module (PCM) to run and control the fuel injectionsystem. Connectionsincluded for: - Fuse/Relay Box - Fuel Pump Control (Relay included) - Fan controls (Relays and fuse Sold Separately) - Check Engine Light, Speedo output, Tachometer, OBD2 Port - Idle Air Control and Throttle Position Sensor - 3-Pin Mass Air Flow Sensor - Manifold Absolute Pressure Sensor - Engine Coolant Temp Sensor - 4-Pin Alternator Control - 2 x Oxygen Sensors - Knock Sensor - Crankshaft Position - Camshaft Position - Fuel Injectorswith EV1 Plugs - Coil Packs - Vehicle Speed Sensor - Reverse Lockout Sensor

Product Information

Aeroflow Performance wiringharness is designed to be a complete plug and play harnessfor EFI GM LS1/LS6 series engines. It is a complete standalone replacement wiring harness that suits GM LS1 engines (1997 to 2002) with drive by cable throttle body and T56 manual transmissions or non-electronic controlled automatic transmissions. Perfect for retrofitting into older muscle cars and street rods or newer non-emissions-controlled vehicles with a four-wire hook-up (switched power, constant power and ground connections). The harness features a sliding grommet seal for a leak proof installation and 1.2 to 1.5 meters (3.9 to 4.9 feet) of length from the rear of the cylinder head to the PCM mounting position under the vehicle dashboard. The harnessis constructed with GM Delphi connectors and terminals and high temperature wires. It includes all wiring that is required by the Powertrain Control Module (PCM) to run and control the fuel injectionsystem. Connectionsincluded for: - Fuse/Relay Box - Fuel Pump Control (Relay included) - Fan controls (Relays and fuse Sold Separately) - Check Engine Light, Speedo output, Tachometer, OBD2 Port - Idle Air Control and Throttle Position Sensor - 3-Pin Mass Air Flow Sensor - Manifold Absolute Pressure Sensor - Engine Coolant Temp Sensor - 4-Pin Alternator Control - 2 x Oxygen Sensors - Knock Sensor - Crankshaft Position - Camshaft Position - Fuel Injectorswith EV1 Plugs - Coil Packs - Vehicle Speed Sensor - Reverse Lockout Sensor

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications
Manufacturer
Aeroflow Performance Products
MPN
Not provided
UPC
9337206119016
Our Part Number
AF49-1512
Connections included for: Fuse/Relay Box
Fuel Pump Control (Relay included): Fan controls (Relays and fuse Sold Separately)
Notes: Check Engine Light, Speedo output, Tachometer, OBD2 Port
Idle Air Control and Throttle Position Sensor: 3-Pin Mass Air Flow Sensor
Manifold Absolute Pressure Sensor: Engine Coolant Temp Sensor
4-Pin Alternator Control: 2 x Oxygen Sensors
Knock Sensor: Crankshaft Position
Camshaft Position: Fuel Injectors with EV1 Plugs
Coil Packs: Vehicle Speed Sensor
Notes: Reverse Lockout Sensor
Fitment

Confirm compatibility with our team before ordering when your application is not listed.

Brand

Aeroflow Performance

Aeroflow Performance Products are available from Engine Master Australia, supported by practical product knowledge and Australia-wide delivery.
