Product Information

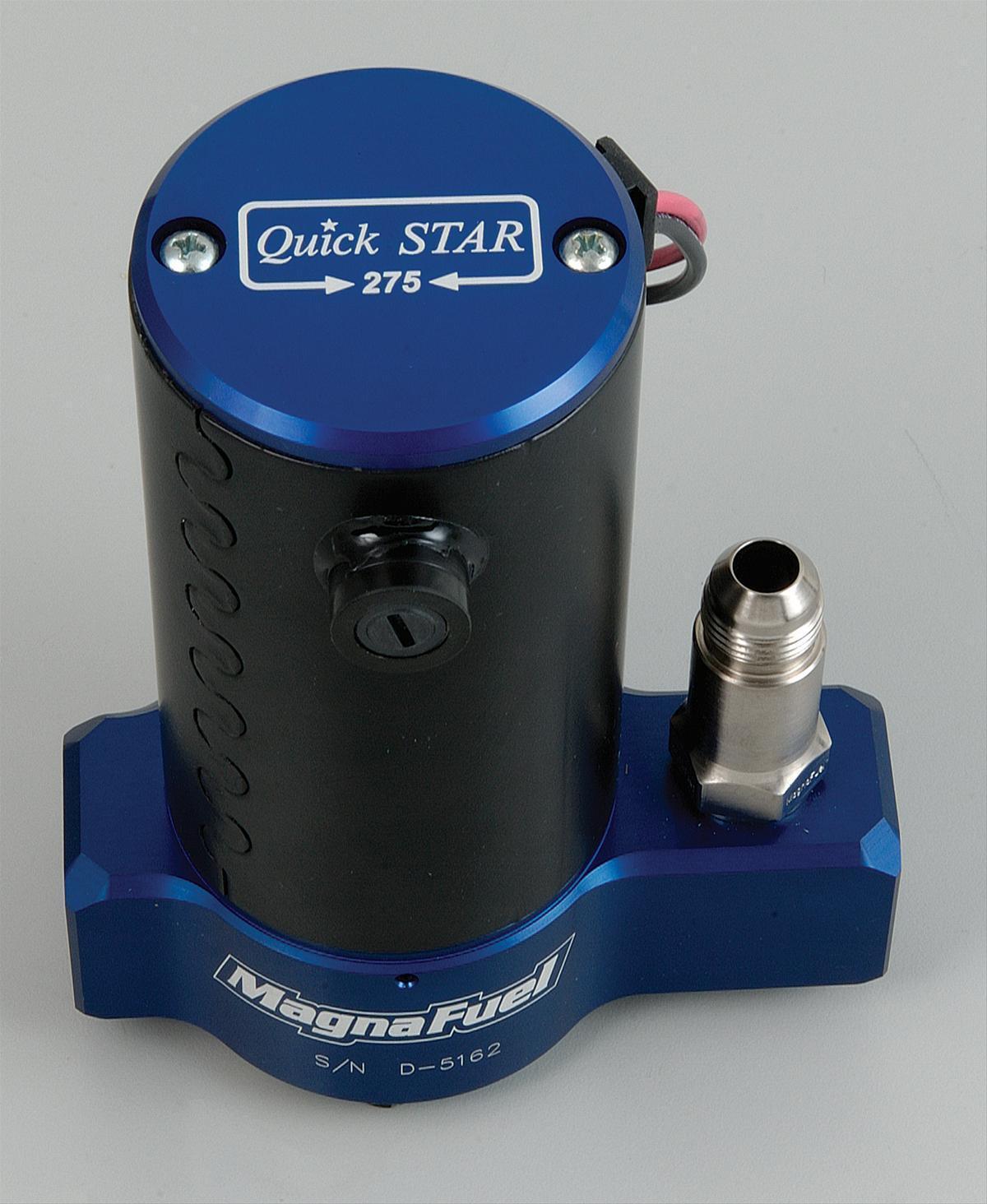

MAGNAFUEL WIMP4501 QUICKSTAR 275 CARBURETED EXTERNAL FUEL PUMP 18 PSI UP TO 750 HP

These QuickStar 275 fuel pumps are built with computer-machined aluminum bodies. They feature MagnaFuel's custom-built motor and exclusive vane/rotor design to provide cool, low-amperage operation without overheating. Compatible with gasoline and alcohol fuel, these pumps use an externally adjustable bypass to eliminate pump cavitation, stabilize fuel flow, and eliminate fuel starvation. They feed engines up to 750 hp.
Additional features include:
  • High performance when rated at flow vs. pressure
  • External by-pass to eliminate pump cavitation
  • Instantaneous compensation for sudden changes in fuel demand
  • Consistent, reliable fuel supply for optimum carburettor performance
  • Compatible with both alcohol and gasoline racing fuels
  • Light weight
  • Hand assembled to the highest quality standard
  • Pump bodies computer machined out of high quality 6061 Aluminium
  • Custom built low amperage motors - the best in the industry
  • Compatible with 12- and 16-V electrical systems
  • No metal to metal contact for reduced wear and greater reliability
  • Blades self-compensating for wear
  • Flow tested to ensure maximum performance
  • All MagnaFuel pumps are rebuildable to "as-new"
Specs:Application: Carbureted Gasoline/Alcohol.
Maximum Pressure (psi): 18 psi
Inlet Size: -10 AN
Inlet Quantity: One
Inlet Attachmen Female threads
Outlet Size: -10 AN
Outlet Quantity: One
Outlet Attachmen Female threads
Quantity: Sold individually.
Notes: #8 adjustable bypass.

Click here for Replacement Seal Kit to Suit
