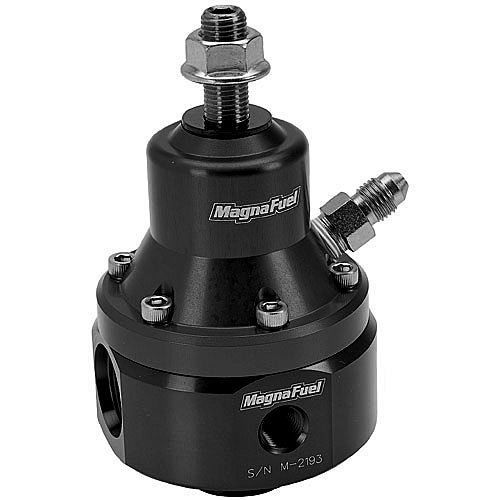

MAGNAFUEL LARGE TWO-PORT EFI REGULATOR WIMP9950-B-BLK 1:1 BOOST REFERENCE
Commonly the most overlooked component in a fuel system, filter neglect can be the most costly. If not cleaned or replaced regularly, filter elements can become clogged resulting in reduced fuel flow, engine performance and ultimately, fuel pump or even worse, engine damage. By simply replacing and/or cleaning your filter elements regularly, you can avoid costly repairs to your fuel system and ensure peak engine performance.Aeromotive recommends annual inspection and service of filter elements. This includes replacing 10-micron fabric elements and cleaning or replacing 100-micron stainless steel elements. Severe duty applications or newly installed systems may require more frequent maintenance. - See more a http://aeromotiveinc.com/products-page/fuel-filters/replacement-elements/40-micron-cellulose-element-for-12335/#sthash.kLY1YxdW.dpuf
Commonly the most overlooked component in a fuel system, filter neglect can be the most costly. If not cleaned or replaced regularly, filter elements can become clogged resulting in reduced fuel flow, engine performance and ultimately, fuel pump or even worse, engine damage. By simply replacing and/or cleaning your filter elements regularly, you can avoid costly repairs to your fuel system and ensure peak engine performance.Aeromotive recommends annual inspection and service of filter elements. This includes replacing 10-micron fabric elements and cleaning or replacing 100-micron stainless steel elements. Severe duty applications or newly installed systems may require more frequent maintenance. - See more a http://aeromotiveinc.com/products-page/fuel-filters/replacement-elements/40-micron-cellulose-element-for-12335/#sthash.kLY1YxdW.dpuf
Commonly the most overlooked component in a fuel system, filter neglect can be the most costly. If not cleaned or replaced regularly, filter elements can become clogged resulting in reduced fuel flow, engine performance and ultimately, fuel pump or even worse, engine damage. By simply replacing and/or cleaning your filter elements regularly, you can avoid costly repairs to your fuel system and ensure peak engine performance.Aeromotive recommends annual inspection and service of filter elements. This includes replacing 10-micron fabric elements and cleaning or replacing 100-micron stainless steel elements. Severe duty applications or newly installed systems may require more frequent maintenance. - See more a http://aeromotiveinc.com/products-page/fuel-filters/replacement-elements/40-micron-cellulose-element-for-12335/#sthash.kLY1YxdW.dpuf MagnaFuel's EFI fuel pressure control units feature a unique guided-metering valve assembly to provide a more accurate metering of fuel flow and help reduce the pressure drop that can occur at high or sudden changes in fuel demand. The pressure control units are designed to work with the EFI 600 pump and are available in two sizes--large for applications of up to 2,000+ hp and standard for applications of up to 700 hp. Each of these units has a 1/8 in. NPT pressure port for a gauge, a filtered vent fitting or optional boost reference fitting, and is compatible with racing gasoline and alcohol. The units feature a CNC-machined, aircraft-quality aluminum body and are hand-assembled and flow-tested for maximum performance. Fast response, low maintenance.
- Unique guided-metering valve assembly provides accurate metering of fuel flow
- Magnafuel EFI Regulators provide the most stable platform for fuel delivery in the performance industry
- Maintains steady fuel flow during times of sudden changes in fuel demands, such as initial launch, gear change and nitrous oxide application
- Designed for use with the MagnaFuel EFI gear pumps
- Regulators available in two different body sizes and different spring combinations to suit your fuel flow at pressure specifications
- Each Regulator has 1/8" NPT gauge port, standard filtered vent fitting or boost reference fitting (1:1 compensation ratio)
- Special fittings and adapters available for most applications
- All MagnaFuel Regulators are hand assembled to the highest ality
- MagnaFuel Regulators are compatible with racing gasoline and alcohol fuels
- Billet body precision CNC-machined from aircraft-quality aluminium and hard anodized for extra long service life
- Completely user-serviceable, with ready to order replacements parts.
Specs:Application: EFI Gasoline/Alcohol
Pressure Range (psi): 35-85
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Por Yes
Boost/Vacuum Rise Ratio: 1:1
Gauge Por Yes
Mounting Bracket Included: Yes
Fittings Included: No
Rebuildable: Yes
Inlet Quantity: Two
Inlet Attachmen Female threads
Inlet Size: -8 AN
Return Attachmen Female threads
Return Fitting Size: -8 AN
Regulator Material: Aluminum
Regulator Finish: Black anodized Quantity: Sold individually.
|
