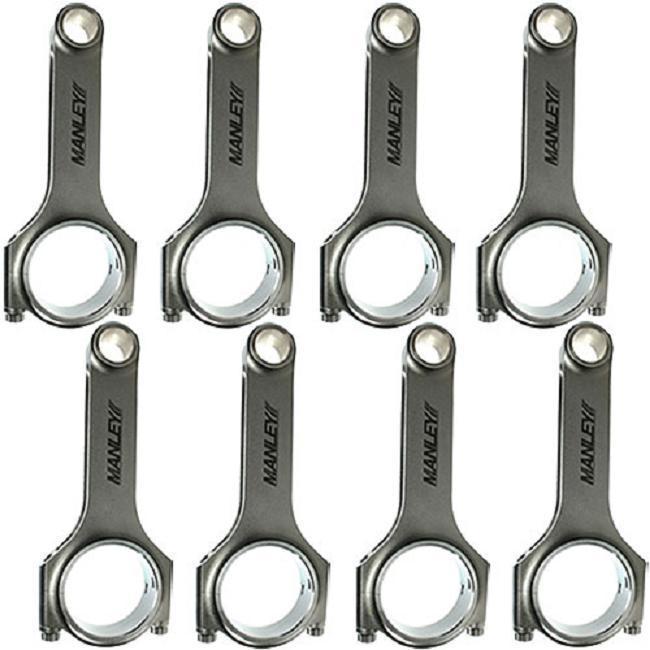

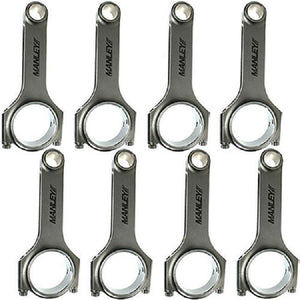

MANLEY FORGED H BEAM 4340 CONRODS MAN14055R-8 FOR L/J CHEV SB V8 6.125" LONG
The Manley H-Beam Series Connecting Rods are not only very ''economically'' priced, but they are finished to the same exacting tolerances and high quality standards as their Sportsmaster and Pro Series rods. Final hone size, thread detail, bend and twist - these are attributes we take very seriously. You will find the Manley H-Beam rods superior to others on the market.
Features:
  • Manufactured from 4340 forgings
  • Heat treated, stress relieved, shot peened and 100% magnafluxed
  • Weight matched sets +/- 1.5 grams
  • Cap fasteners are premium 7/16'' ARP cap screws

  • Specs:
    Application: Chev Small Block V8.

    Connecting Rod Length Center to Center (in): 6.125 in.
    Connecting Rod Beam Style: H-beam
    Connecting Rod Material: Forged 4340 steel
    Connecting Rod Finish: Shot-peened
    Cap Retention Style: Cap screw
    Connecting Rod Bolt Brand: ARP
    Connecting Rod Bolt Diameter: 7/16 in.
    Connecting Rod Bolt Material: 8740 chromoly steel
    Approximate Connecting Rod Weight (g): 664
    Crankshaft Journal Diameter (in): 2.100 in.
    Big End Bore Diameter (in): 2.2250 in.
    Pin End Bore Diameter (in): 0.928 in.
    Pin End Width (in): 1.060 in,
    Advertised Horsepower Rating (hp): 750 hp
    Advertised RPM Rating: 8,000 rpm
    Weight Matched Se Yes
    Remanufactured: No
    Magnafluxed: Yes
    Quantity: Sold as a set of 8.
