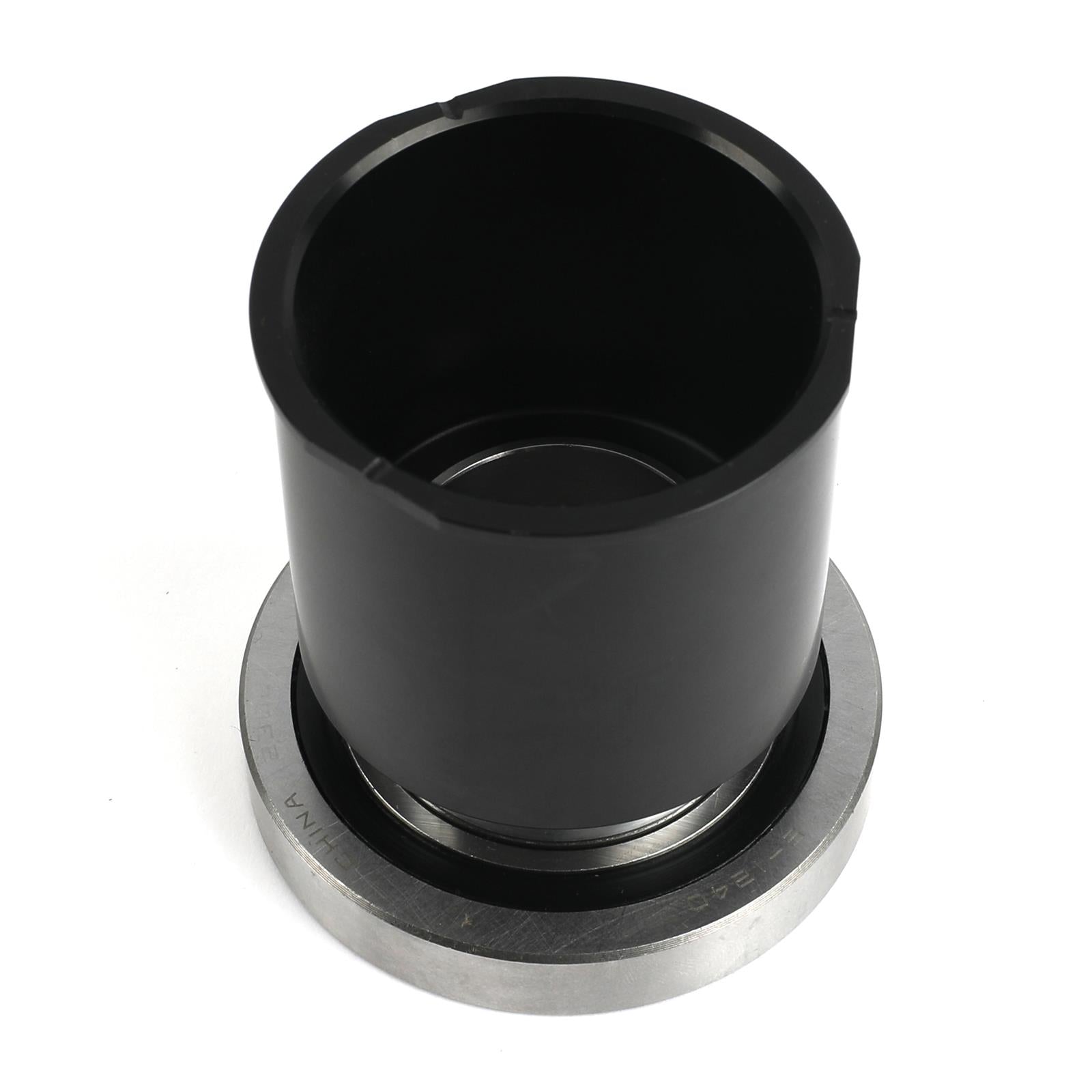

McLeOD Clutch MC139079 Replacement Adjustable Height Piston 1300 Series Bolt On Style Bearings
Product Information
McLeod offers an exclusive replacement adjustable height piston for the 1300 series bolt on style bearings. These pistons are adjustable to three different height locations to help maintain proper mechanical linkage geometry. McLeod Adjustable piston kits utilize bearings with angular contact, constant running bearings for long life and durability.
Measurements below are from the face of the throw-out bearing to the face of the transmission
when the bearing is fully compressed.
- 0 Spacers -3.280" to 3.580"
- 1 Spacers - 3.425" to 3.725"
- 2 Spacers - 3.585" to 3.885"
- 3 Spacers - 3.735" to 4.035"
Note: All machined parts have a tolerance of +/- .005"
