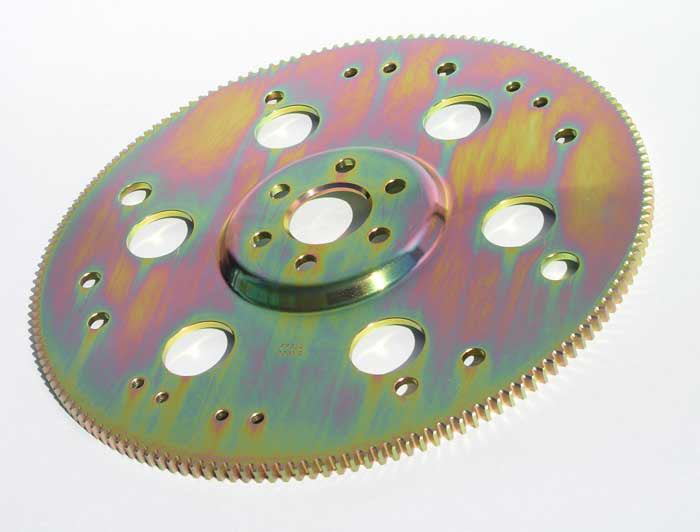

True Billet FleXPlate - SFI suit Sb
Product Information
These plates are clearly the superior choice for quality and precision. Machined to exacting tolerances from 4340 round bar, our proprietary manufacturing process ensures the strongest gear tooth, least runout, and the best longevity on the market. All of our flexplates are certified to SFI 29.1.
Features of this part number include:
- Concentric machined to .005
- One piece design - 100% machined
- Proprietary heat treating process
- Chamfered gear tooth provides better engagement
- Application information:
- Fits small block Ford Windsor style and 5.0
- 157 tooth ring gear
- 12 pitch tooth profile
- 28 gram counterweight
- Weighs 6.0 pounds
- Converter pattern 1 - 4 holes 7/16" diameter on 10.5" bolt circle
- Converter pattern 2 - 3 holes 7/16" diameter on 10.75" bolt circle
