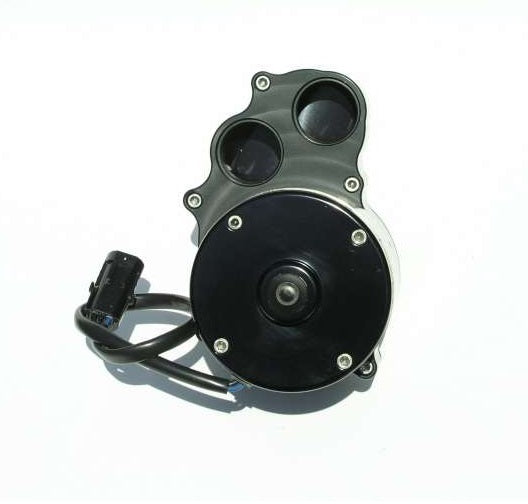

Meziere MZWP337 Electric Water Pump Remote Mount Inline 1 In 2 Out Black Finish 55Gpm Standard Motor

American made with quality far superior to any other performance aftermarket company, we build our water pumps with pride right here in the USA. Don't be mislead by inflated flow numbers and competitors' outlandish claims. Our 300 series pumps move more water and produce more pressure than any other electric pump on the market. That means better protection for your high horsepower, high demand engine!
Remote pumps fill many different needs. When an engine mounted pump is not available or space limits the ability to use one, the remote pumps are the answer. Meziere makes more remote pump configurations than any other manufacturer in the performance market. We make pumps that flow from 20 to 55 gallons per minute. Our pumps can be configured to use almost any size line. All of our pumps are built for cooling systems and can operate properly in a harsh environment.

This water pump model features:

• Remote mount inline design for universal fit
• Suitable for street or drag strip use - 3000 hour life expectancy
• Show quality black anodised finish
• Standard motor provides 55 gallons per minute free flow rating
• Stainless steel hardware and 4130 mounting bracket included
• Single inlet port accepts any of our WN style fittings
• Dual outlet ports accepts any of our #16AN style fittings
• Stainless steel large diameter main shaft with high performance ceramic seal
• WN style inlet fittings available for #10AN, #12AN, #16AN, #20AN, #24AN, 1-1/4", 1-1/2" or 1-3/4" slip hose.
• #16AN style outlet fittings available for #12AN, #16AN, 1" or 1-1/4" slip hose

Technical Specifications :

• Finishing The System: This pump is supplied complete with hardware but without the fittings. The fittings need to be ordered according to the type and size of the desired hose connections.
• Amperage draw: Under normal use the pump will draw 11-12 amps.
• Overall Height Dimension: The standard pump is 5.20" long from the mounting surface to the tip of the pump.
• Pump Weight: This application weighs 6.2 lbs.
• 16 volt systems: The 12 volt pump will work with 16 volt systems. Care should be taken that the pump not be run while charging.

Additional Notes:
The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only.

Accessories for Remote:
Relay Wiring Kit upgrade WIK346
