Dart LS Next Block Street/Strip Oil Pan 6" Deep 7 Quart (6.62L)
Moroso
Part No. MO20144
Regular price
$1,374.95 AUD
Regular price
Sale price
$1,374.95 AUD
Taxes included.
Shipping calculated at checkout.
SKU:MO20144
Expert Advice
Talk to real engine builders
Fast Dispatch
Australia Wide Shipping
Family Owned
Trusted since 1988
Secure Checkout
Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information

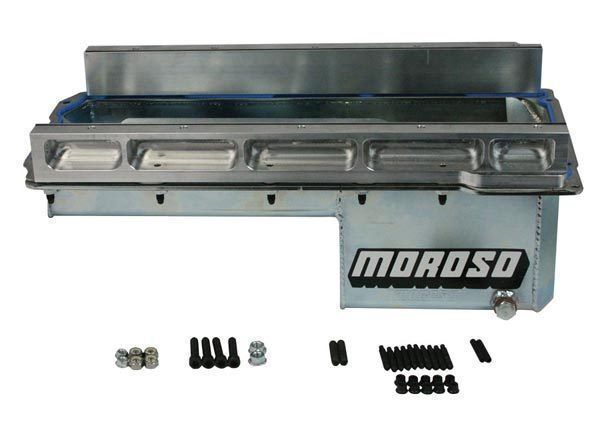

MOROSO STREET/STRIP 7QT OIL PAN 6" DEEP SUIT DART LS NEXT BLOCK MO20144
If you're looking for a performance oil pan for drag/road racing applications, then Moroso has you covered! Made with a thick, precision laser-cut steel rail, these oil pans feature a 7 quart capacity that moves oil away from your rotating assembly, offering excellent oil control and horsepower savings. Their race-proven diamond shape, four trap door assembly, and anti-slosh baffles keep your oil contained in the oil pump pickup area during road and drag racing. Moroso drag/road race oil pans have a billet aluminum adapter with a 1/4 in. NPT sensor port that allows a 13/16th thread Moroso or OEM filter to be mounted in the stock location no need to run a remote oil filter! These pans use a stock dipstick.- Includes Dart LS Next oil pan and Moroso Part No 22934, Billet Aluminium Spacers with mounting hardware
- Oil pan has a 3/16" thick precision laser cut steel rail specifically designed for the LS Next Engine Block

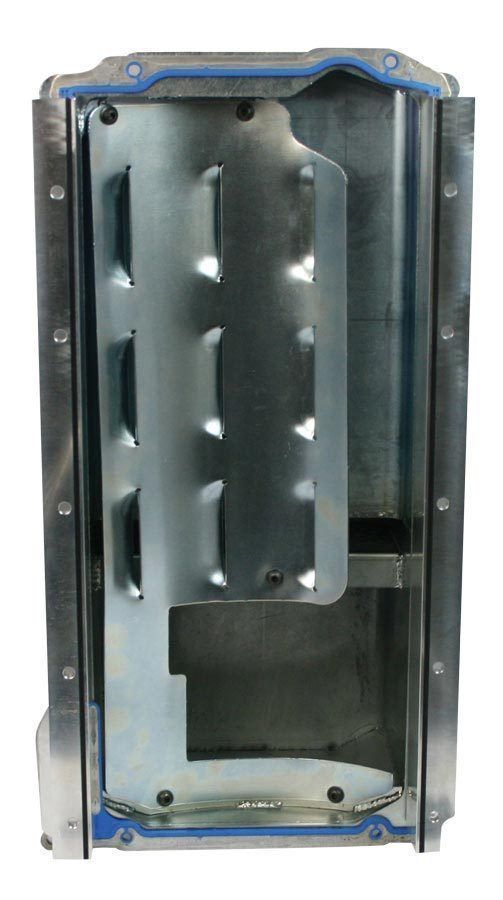

- Features a trap door baffle and a removable windage tray that wraps around the oil pump for horsepower savings and oil control
- Has a 16 gauge steel sump to stand up to the toughest racing conditions

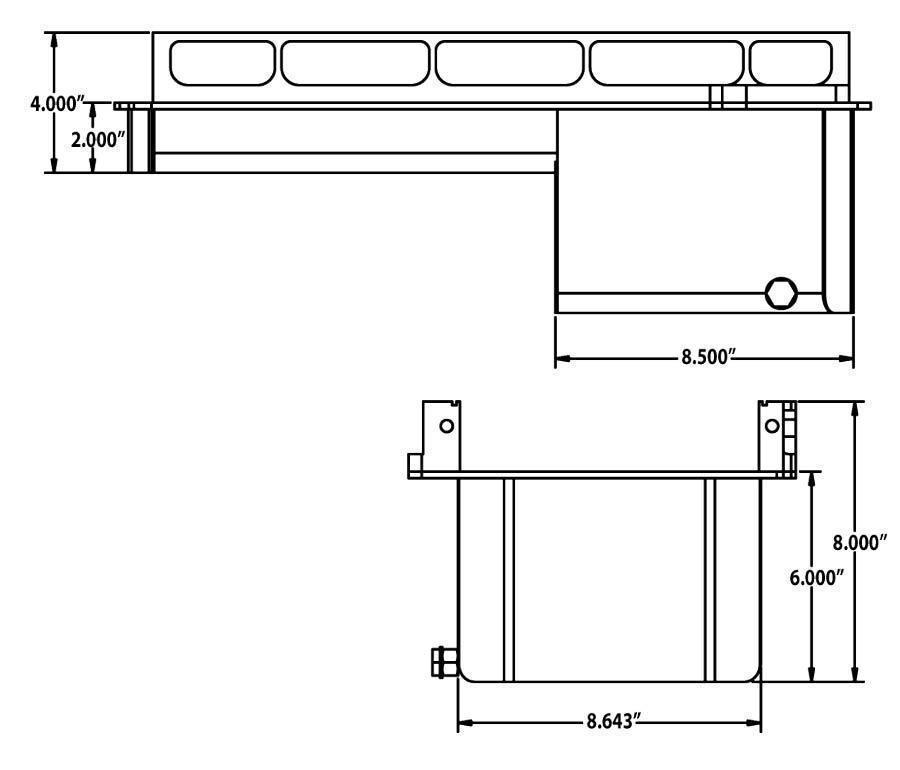

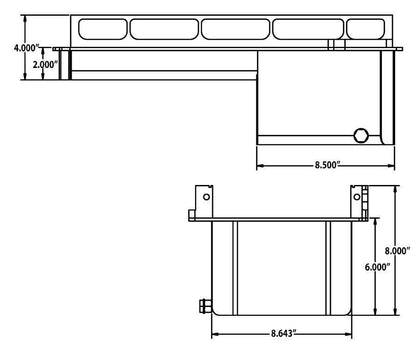

- Front of the oil pan is 2 ¼" deep to the beginning of the 6" deep sump
- The sump is 8 1/4" long and 8 3/4" wide
- Clears 4.125" stroke with most steel rods
- The included billet aluminium spacers, mount between the engine block and the oil pan with the supplied mounting hardware, sealing via the built in O-ring groove and requires a stock GM LS Gasket
Application: Chevy small block Gen III/IV6.0L/364, 6.2L/376, 6.2L/378, 7.0L/427 C.I.D.
Rear Main Seal Style:1-piece
Dipstick Location:Driver side
Sump Location:Rear
Stroker Clearanced:Yes
Maximum Stroke with OE Rod:4.125 in.
Sump Style:Wet
Oil Pan Capacity:7 quarts
Oil Pan Depth (in):6.000 in.
Oil Pan Material:Steel
Oil Pan Finish:Clear zinc
Baffled:Yes
Kicked OuNo
Dipstick Provision:No
Windage Tray Included:Yes
Pickup Included:No
Crank Scraper Included:No
Gaskets Included:No
Hardware Included:Yes
Quantity:Sold individually.
Notes:Fits models with Dart LS Next engine blocks only.
Click here for Moroso Oil Pickup to Suit
