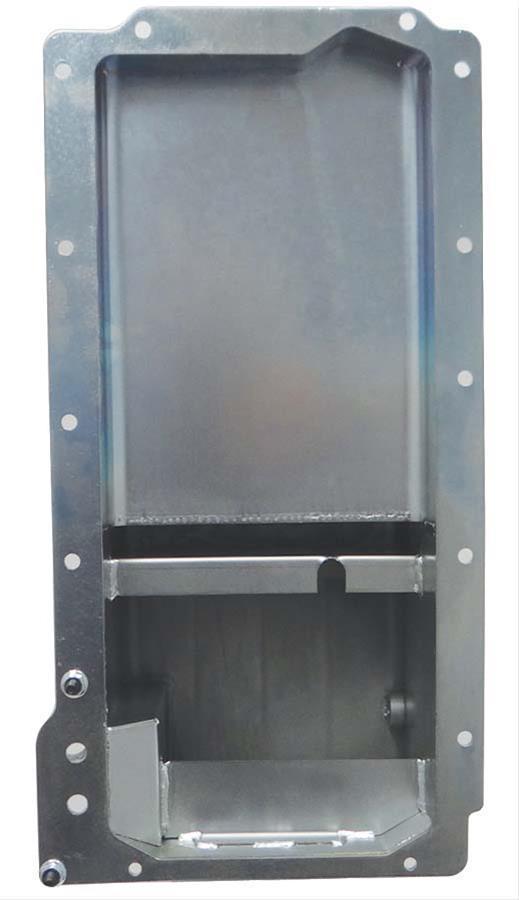

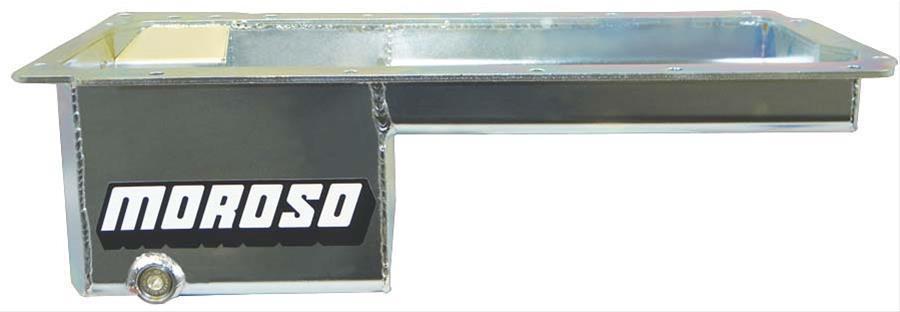

Moroso MO20147 GM LS Oil Pan 6" Deep 5 Quart (4.73L) Conversion Rear Narrow Sump

Item Description

MOROSO 5QT OIL PAN 6" DEEP MO20147 SUIT GM LS CONVERSION REAR NARROW SUMP

If you're looking for a performance oil pan for drag/road racing applications, then Moroso has you covered! Made with a thick, precision laser-cut steel rail, these oil pans feature a 7 quart capacity that moves oil away from your rotating assembly, offering excellent oil control and horsepower savings. Their race-proven diamond shape, four trap door assembly, and anti-slosh baffles keep your oil contained in the oil pump pickup area during road and drag racing. Moroso drag/road race oil pans have a billet aluminum adapter with a 1/4 in. NPT sensor port that allows a 13/16th thread Moroso or OEM filter to be mounted in the stock location no need to run a remote oil filter! These pans use a stock dipstick.
  • Oil pan has a thick precision laser cut steel rail with a durable fabricated steel sump plated with a clear zinc finish
  • Fabricated, durable steel construction is more adaptable to add fittings, changefinishes and weighs less than cast aluminum construction
  • Clears 4.125” stroke with most steel rods and can be used with Moroso No. 22491 Windage Tray
  • Front of the oil pan is 1.813" deep to the beginning of the 6" Deep, 8.295" Wide, and 8.375" Long sump
  • The fabricated steel sump is 5.5" Deep, 8.5” Wide, and 8.375” Long
  • Anti-climb baffle
  • Features a detachable, remote oil filter adapter constructed out of billet aluminum with two straight –10AN fittings
  • Designed to be used with MOROSO PART No. 24050 Oil Pump Pick up
  • Magnetic drain plug and uses a stock dipstick
Specs:
Application: Fits LS Engine Conversions that require a narrower Rear Sump (Check Measurements) for “Block Hugger” headers.
Sump Location:Rear
Sump Style:Wet
Oil Pan Capacity:5 quarts
Oil Pan Depth (in):6.000 in.
Oil Pan Material:Steel
Oil Pan Finish:Clear zinc
Baffled:Yes
Kicked OuNo
Dipstick Provision:No
Pickup Included:No
Crank Scraper Included:No
Gaskets Included:No
Quantity:Sold individually.
Click here for Moroso Oil Pickup to Suit
Items are shipped within one to two business days after full payment has been recieved.


Manufacturer Information

  • Manufacturer: Moroso
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
