Moroso MO20385 Chev Big Block Mark 46 Qt Drag Race Oil Pan 8" Deep

Item Description

MOROSO CHEV BIG BLOCK MARK IV 6 QT DRAG RACE OIL PAN 8" DEEP MO20385

Looking for a great Pro Eliminator oil pan? Look no further than Moroso.
These oil pans feature:

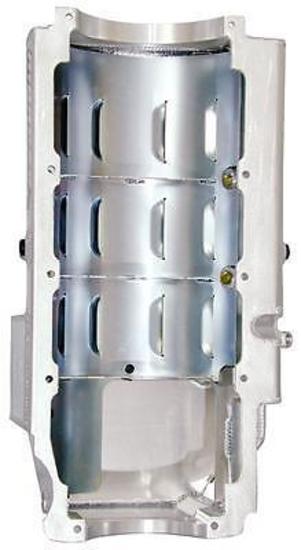

* Partitioned and louvered windage tray with baffles to divide mains; separates oil quickly from rotating assembly for ultimate oil control and maximum horsepower gain
* Billet end caps with extremely close tolerances
* Innovative pro sump design baffling system prevents oil from climbing pan walls, keeping oil contained in the pickup area during hard acceleration and braking
* Maximum-size double kickouts collect oil thrown from the rotating assembly, reducing windage and increasing power
* Two 1/2 in. NPT drainbacks and an oil pump access bung allow oil pressure adjustment on pumps with adjustable bypasses
* Removable plugs with O-ring seal provide convenient access to pan mounting bolts
* Bolt holes are relocated to avoid interference with rods, allowing longer strokes (requires drilling and tapping of block pan rail on some blocks) Specs:Application: Suits Chevy big block Mark IV 396-454 C.I.D.

Rear Main Seal Style: 2-piece
Dipstick Location: Passenger side
Sump Location: Rear
Stroker Clearanced: Yes
Maximum Stroke with OE Rod: 4.750 in.
Sump Style: Wet
Oil Pan Capacity: 6 quarts

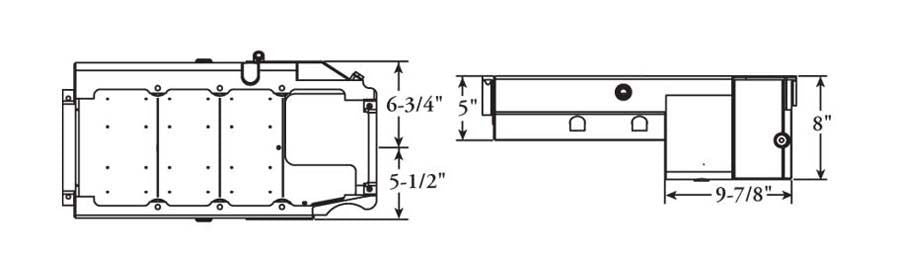

Oil Pan Depth (in): 8.000 in.
Oil Pan Material: Aluminum
Oil Pan Finish: Natural
Baffled: Yes
Kicked Ou No
Dipstick Provision: Yes
Windage Tray Included: No
Pickup Included: No
Crank Scraper Included: No
Drain Plug Thread Size: 1/2-20 in.
Gaskets Included: No
Hardware Included: No
Quantity: Sold individually.
Notes: Competition Eliminator, Super Gas, Super Comp, and Bracket cars. Installation may require modifications to crossmember. Oil pan requires a dipstick with 1/4 in. NPT fitting attachment. Accepts 4.75 in. stroke with aluminum rods.
