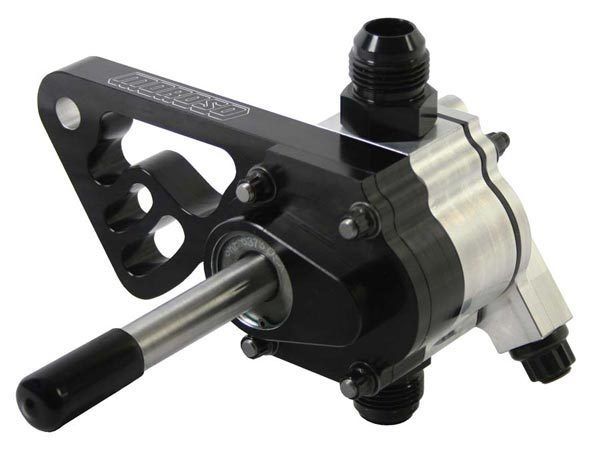

Chev V8 Tri Lobe Single Stage External Dry Sump Oil Pump

These aluminum Moroso Tri-Lobe dry sump oil pumps have been developed with their decades of oiling system expertise to provide you with a lighter, better performing design that will save weight and make more crankcase vacuum. They feature Tri-lobe aluminum scavenge sections with individual timing gears to ensure proper clearance at the highest rpm. The pumps use a spur gear pressure section based on Moroso's highly successful billet wet sump pump design, and variable spring rates optimize your oil pressure for smooth, reliable oil pressure readings. The Moroso Tri-Lobe dry sump oil pumps have multiple -16 AN scavenge outlet options for increased flow back to your dry sump tank. They weigh about half as much as gerotor pumps and take up to 40 percent less power to drive! Specs:

High-Pressure Oil Pump Spring Included: No

Pickup Included: No

Hardened Driveshaft Recommended: No

Oil Pump Driveshaft Included: No

External Oil Pump Stage Quantity: One

External Oil Pump Pulley Included: No

External Oil Pump Belt Included: No

External Oil Pump Mounting Brackets Included: Yes

External Oil Pump Rotation: Clockwise

Hardware Included: No

Gaskets Included: No

Quantity: Sold individually.

Notes: Designed to fit tube chassis door car applications.
