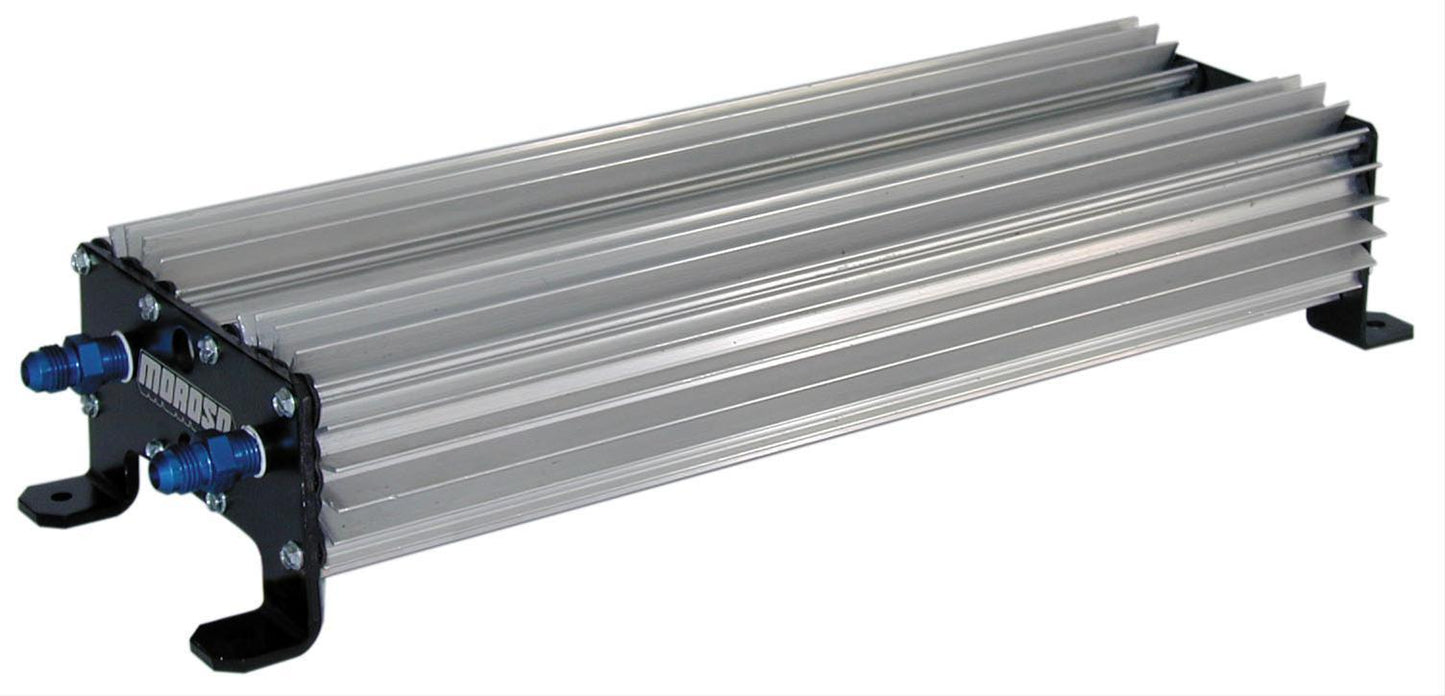

H/D Transmission Oil Cooler-Filter 3-1/2" H X 6-1/4" W X 18" L
Moroso
Part No. MO41205
Regular price
$498.05 AUD
Regular price
Sale price
$498.05 AUD
Taxes included.
Shipping calculated at checkout.
SKU:MO41205
Expert Advice
Talk to real engine builders
Fast Dispatch
Australia Wide Shipping
Family Owned
Trusted since 1988
Secure Checkout
Safe & Encrypted Payments
Quantity
Availability:
Ships in 1-3 Business Days*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information
MOROSO H/D TRANSMISSION OIL COOLER-FILTER3-1/2" H X 6-1/4" W X 18" L MO41205Moroso filtered transmission coolers use a space-age heat sink to dissipate the excessive heat buildup in your race transmission. Their large, finned aluminum design drastically increases the cooler's surface area for outstanding heat dissipation. In addition, not only do these units cool your fluid, they also filter it. A changeable filter cartridge in each cooler features a magnetic design that removes all wear particles greater than four microns in size. Specs:Application: Universal
- Withstands up to 30 lbs. of pressure
- Dual combination cooler/filters use "heat sink design" to dissipate the excessive heat build up in racing transmissions
- Made of aluminium with 1072 sq. inches of radiation surface for high heat transfer
- Filter with magnet removes all wear particles over 10 microns in size
- Dimensions: 3-1/2" H x 6-1/4"W x 18" L and weighs 4.7 lbs.
- Very easy to install, uses four mounting tabs; not recommended for street use
- Comes complete with filter cartridge, includes two 1/4" NPT to -6AN fittings and all necessary installation instructions
Overall Height (in): 3.500 in.
Overall Width (in): 18.000 in.
Overall Thickness (in): 6.250 in.
Cooler Construction: Tube and fin
Cooler Material: Aluminum
Inlet Size: -6 AN
Inlet Attachmen Male threads
Outlet Size: -6 AN
Outlet Attachmen Male threads
Number of Cooling Rows: 2
Core Height (in): 3.500 in.
Core Width (in): 18.000 in.
Core Thickness (in): 6.250 in.
Cooler Finish: Natural
Quantity: Sold individually.
Product Information
MOROSO H/D TRANSMISSION OIL COOLER-FILTER3-1/2" H X 6-1/4" W X 18" L MO41205Moroso filtered transmission coolers use a space-age heat sink to dissipate the excessive heat buildup in your race transmission. Their large, finned aluminum design drastically increases the cooler's surface area for outstanding heat dissipation. In addition, not only do these units cool your fluid, they also filter it. A changeable filter cartridge in each cooler features a magnetic design that removes all wear particles greater than four microns in size.- Withstands up to 30 lbs. of pressure
- Dual combination cooler/filters use "heat sink design" to dissipate the excessive heat build up in racing transmissions
- Made of aluminium with 1072 sq. inches of radiation surface for high heat transfer
- Filter with magnet removes all wear particles over 10 microns in size
- Dimensions: 3-1/2" H x 6-1/4"W x 18" L and weighs 4.7 lbs.
- Very easy to install, uses four mounting tabs; not recommended for street use
- Comes complete with filter cartridge, includes two 1/4" NPT to -6AN fittings and all necessary installation instructions
Overall Height (in): 3.500 in.
Overall Width (in): 18.000 in.
Overall Thickness (in): 6.250 in.
Cooler Construction: Tube and fin
Cooler Material: Aluminum
Inlet Size: -6 AN
Inlet Attachmen Male threads
Outlet Size: -6 AN
Outlet Attachmen Male threads
Number of Cooling Rows: 2
Core Height (in): 3.500 in.
Core Width (in): 18.000 in.
Core Thickness (in): 6.250 in.
Cooler Finish: Natural
Quantity: Sold individually.
