Programmable Midget/Oval Track Ignition
SKU:MSD6214
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information
These MSD Programmable Midget ignitions help deliver every ounce of power from your Midget engine.

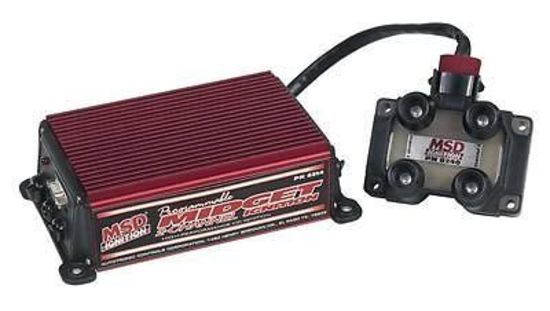

They're a complete electronic distributorless system with a powerful capacitive discharge ignition control, and a four-tower, high output coil pack that uses two non-magnetic pickups with a trigger wheel. MSD has taken all of the mechanical variables out of the picture and given you exact ignition timing for more power, more control, and more performance. You can precisely program the timing throughout the engine's entire rpm range. Their programmable features include the ability to: Plot two timing curves ranging from 800-15,000 rpm in 0.1 degree increments, program a start retard for easier timing, select a rev limit from 2,000-15,000 rpm in 100 rpm increments, and switch between two timing curves as track conditions change during a race! These features can be programmed from a PC with MSD's Pro-Data+ software.
- Ignition Box Output Capacitive discharge
- Circuitry Digital
- Rev Limiter Yes
- Timing Retard One-stage
- Data Acquisition No
- CD Voltage Output to Coil 490-505 V
- Current Draw 0.8 amps per 1,000 rpm
- Spark Output (millijoules) 190 Millijoules
- Minimum Operating Voltage 9 V
- Maximum Operating Voltage 18 V
- Length (in) 6.500 in.
- Height (in) 2.250 in.
- Width (in) 4.500 in.
- Ignition Box Color Red
- Coil Included No
