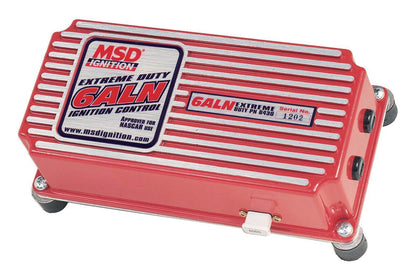

MSD Ignition MSD6430 6ALN Nascar Cd Ignition Controller With Rev-limiter

Item Description

MSD IGNITION 6ALN NASCAR CD IGNITION CONTROLLER MSD6430 CAPACITIVE DISCHARGE WITH REV-LIMITER
The MSD 6ALN were designed with NASCAR racing in mind. The "N" Series Ignitions fe athertight connector to meet NASCAR ignition wiring rule. This special connector provides a tight, positive locking connection with individual seals to keep dirt and moisture away from each connection. All of the MSD primary wiring meets MIL-86A specifications with special tinned conductors for superior crimps. Inside the strong cast aluminium housing, the multiple sparking CD circuits are encased in a clear two part silicone elastomer for the ultimate in vibration protection. A special clear base plate is also installed for easy tech inspection. The 6ALN has a built-in Rev Control.Features
  • Multiple spark, capacitive discharge ignition control.
  • Designed for circle track racing with NASCAR mandated connectors and clear epoxy potting compound for vibration protection.
  • 6-pin Weathertight connector, mandatory for NASCAR use.
  • Circuit board is encased in a clear two part silicone elastomer.
  • Clear plastic base plate for easy tech inspection.
  • Built-in Soft Touch Rev Control is adjustable with RPM Modules.
  • Multiple sparks for 20 degrees of crankshaft rotation.
  • Works on 12 - 18 volt electrical system.
  • Accepts breaker points, amplifier and magnetic pickup trigger inputs.
  • Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops.
  • Supplied with rubber shock mounts.
  • Supplied with 3,000, 6,000, 7,000 & 8,000 RPM Modules.
Specs:
Ignition Box Outpu Capacitive discharge
Circuitry: Analog
Rev Limiter: Yes
Timing Retard: None
Data Acquisition: No
CD Voltage Output to Coil: 460-480 V
Current Draw: 1 amp per 1,000 rpm
Spark Output (millijoules): 115 Millijoules
Minimum Operating Voltage: 10 V
Maximum Operating Voltage: 18 V
Length (in): 8.000 in.
Height (in): 2.250 in.
Width (in): 4.000 in.
Ignition Box Color: Red
Coil Included: No
Warranty: 1-year
Quantity: Sold individually.
