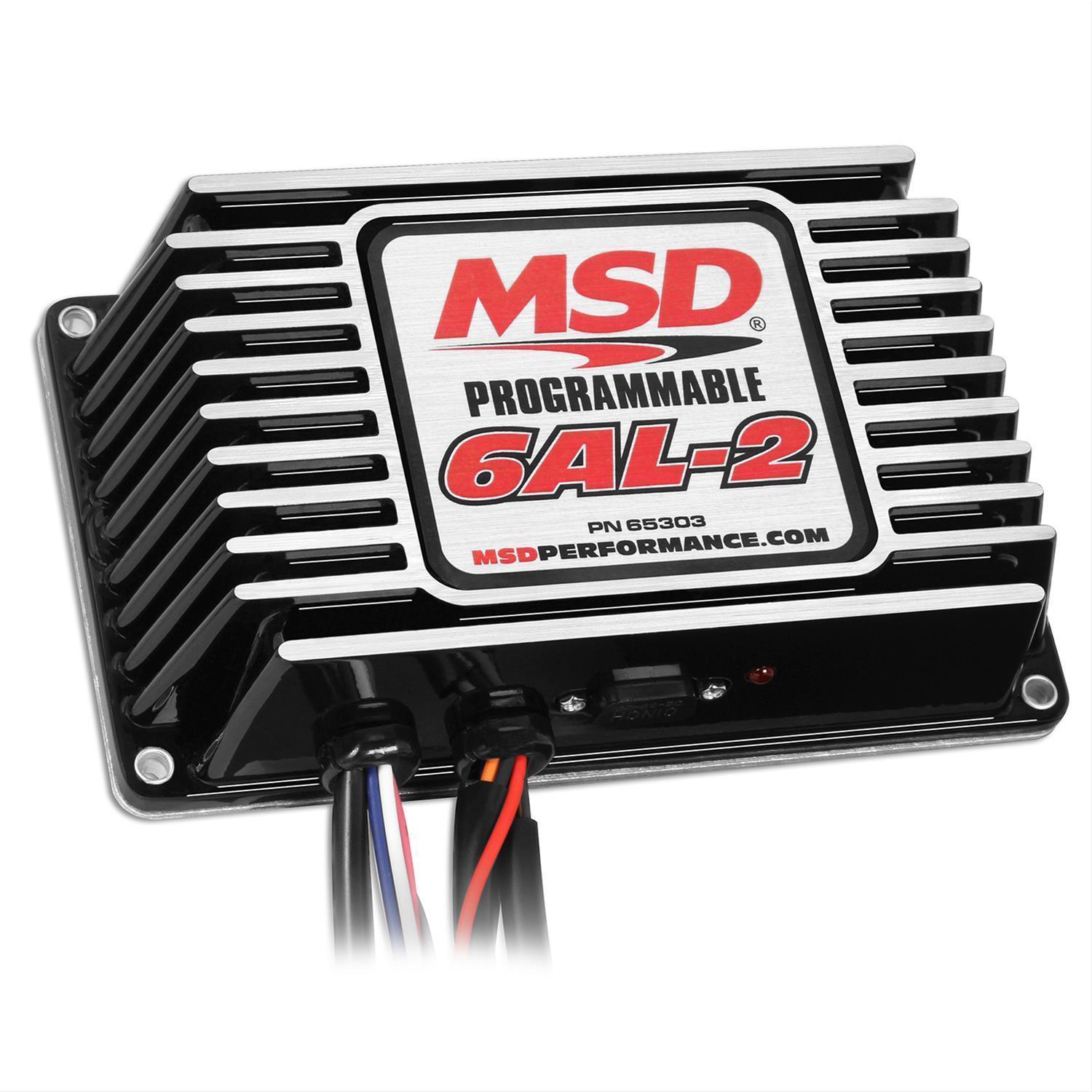

Black Digital Programmable 6AL-2 Ignition Controller
SKU:MSD65303
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information
The Programmable 6AL-2 lets you lock out the distributor and program a timing curve via a PC.
You'll also be able to set a 2-Step Rev Limiter, a retard for use with nitrous and even a boost timing curve for forced induction engines! The Programmable 6AL-2 shares the same advanced features of the new 6AL-2 with 535 primary volts and spark energy reaching 135 mJ! Vibration mounts, wiring and a PC cable are supplied. Must use MSD Pro-Data+ Software to program.
- Ignition Box Output Capacitive discharge
- Circuitry: Digital
- Rev Limiter: Yes
- Timing Retard: One-stage
- Data Acquisition: No
- CD Voltage Output to Coil: 535 V
- Current Draw: 0.7 amps per 1,000 rpm
- Spark Output (millijoules): 135 Millijoules
- Minimum Operating Voltage: 12 V
- Maximum Operating Voltage: 18 V
- Length (in): 7.000 in.
- Height (in): 2.000 in.
- Width (in): 4.000 in.
- Ignition Box Color: Black
- Coil Included: No
- Warranty: 1-year
- Quantity: Sold individually.
