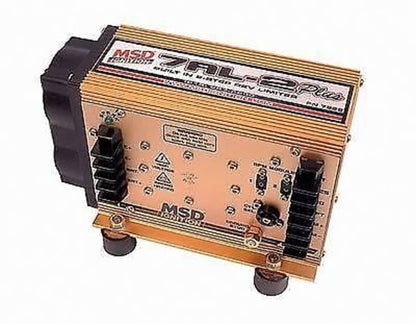

7AL-2 Plus Racing Cd Ignition Controller

MSD 7AL-2 Plus have all the features of the standard 7AL-2 plus the addition of a two-step rev-control and a new diagnostic LED, these ignitions deliver their full power at any rpm. Multiple spark discharge circuitry gives better throttle response, off-corner performance, smooth idle, and more consistent launches. Their built-in soft touch rev control protects your engine from over-rev damage. They feature accurate rev limiting action that's smooth, without backfires or roughness, and adjustments are easily made with plug-in modules. They can be triggered from points, magnetic pickups, crank triggers, and electronic amplifiers. The MSD 7AL-2 Plus are available for 4, 6, and 8-cylinder engines. From NHRA to Circle Track, they're proven winners.Specs:

Ignition Box Output	Capacitive discharge
Circuitry	Analog
Rev Limiter	Yes
Timing Retard	None
Data Acquisition	No
CD Voltage Output to Coil	570 V
Current Draw	1 amp per 1,000 rpm
Spark Output (millijoules)	160 Millijoules
Minimum Operating Voltage	12 V
Maximum Operating Voltage	18 V
Length (in)	8.250 in.
Height (in)	5.750 in.
Width (in)	3.750 in.
Ignition Box Color	Gold
Coil Included	No
Warranty	One-year warranty
Quantity	Sold individually.
Notes	Will not work with distributorless ignitions.
