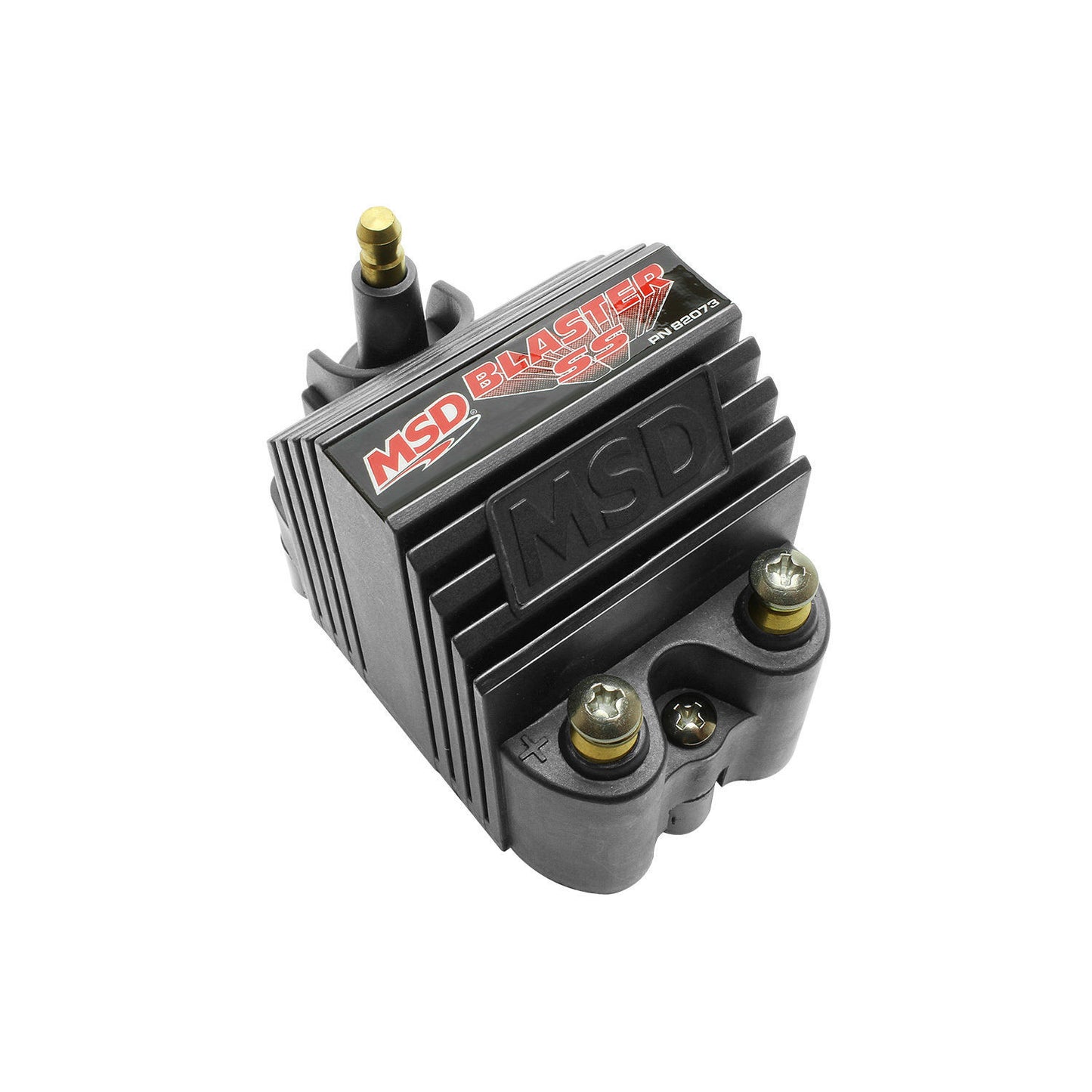

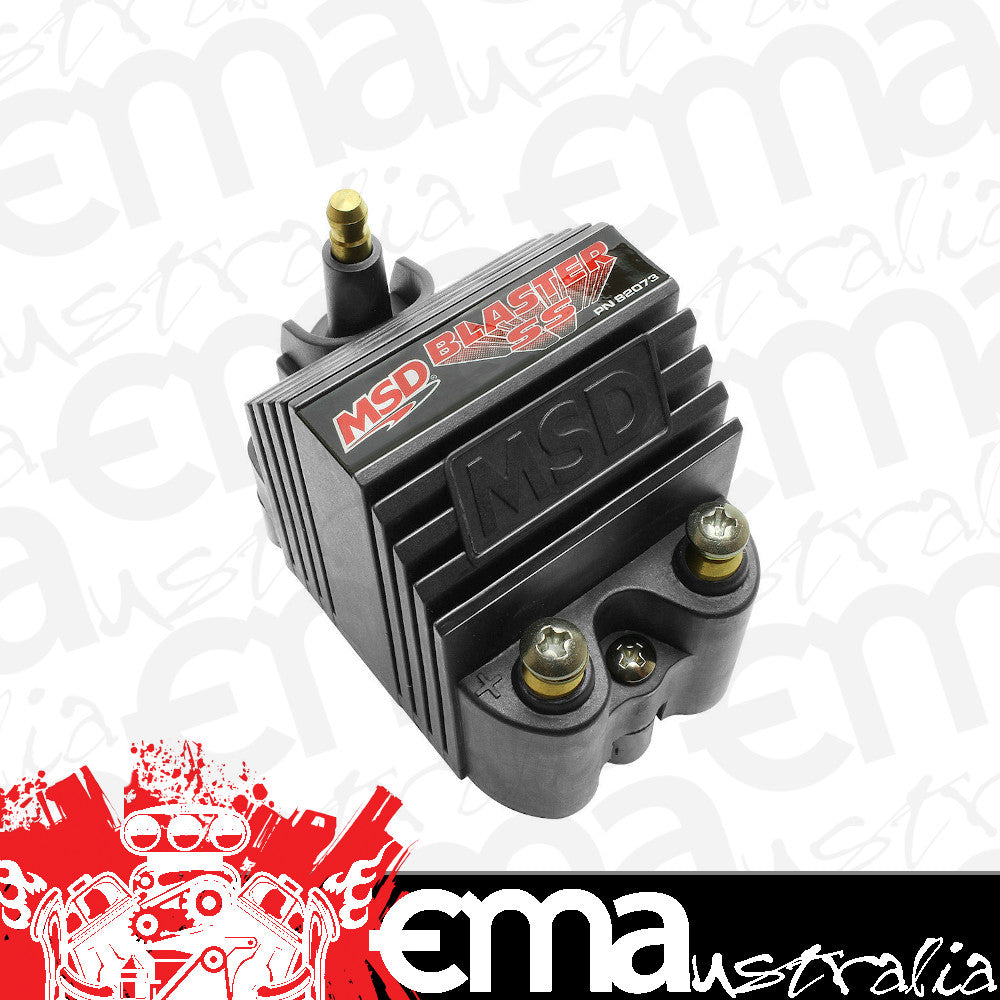

MSD Ignition MSD82073 Black Blaster Ss High Output Ignition Coil

MSD BLACK BLASTER SS HIGH OUTPUT IGNITION COIL MSD82073Don't let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps with a maximum voltage output of 40,000 volts!The secondary windings are wound on a segmented bobbin which reduces the chance of voltage breakdown between the primary and secondary windings. For more protection, these windings are encased in a polyurethane compound for complete protection against vibration. The Blaster SS features brass terminals and a sturdy Rynite housing. It is supplied with a 90° boot, terminal and vibration mounts. A great addition to CD Ignitions and some stock applications.Features:
• Improved output coil for electronic ignitions, and MSD Ignitions
• Efficient winding design and assembly creates a compact housing
• Primary and secondary windings are encased in Ciba polyurethane
• 70:1 turns ratio and lower primary resistance produce high voltage output
• Dupont Rynite housing with a tall tower and brass primary terminals
• CARB E.O. ApprovedSpecs:
Coil Wire Attachmen Male/HEI
Coil Style: E-core
Primary Resistance: 0.355 ohms
Coil Internal Construction: Epoxy
Coil Color: Black
Maximum Voltage: 40,000 V
Turns Ratio: 70:1
Secondary Resistance: 4.40K ohms
Inductance: 6.9 mH
Peak Curren 300 mA
Spark Duration: 220 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in): 2.650 in.
Length (in): 3.500 in.
Width (in): 2.230 in.
Quantity: Sold individually.
