Chev GM Lsi-Ls6 Lq9 Msc Ii Ignition Coil X8 82468
MSD Ignition
Part No. MSD82468X8
Regular price
$1,549.30 AUD
Regular price
Sale price
$1,549.30 AUD
Taxes included.
Shipping calculated at checkout.
SKU:MSD82468X8
Expert Advice
Talk to real engine builders
Fast Dispatch
Australia Wide Shipping
Family Owned
Trusted since 1988
Secure Checkout
Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Contact us for ETA or alternative options
View full details
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information

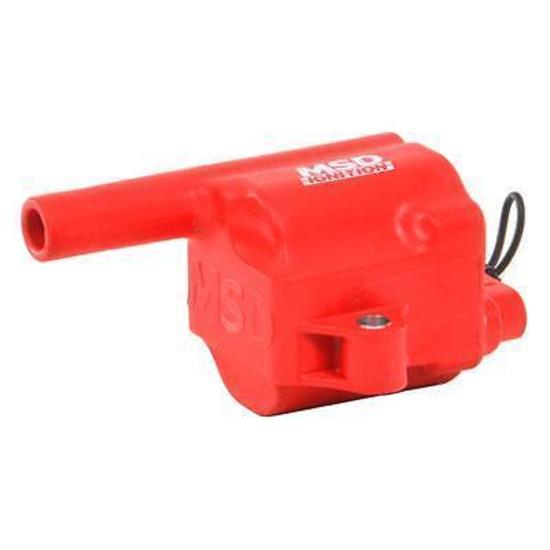

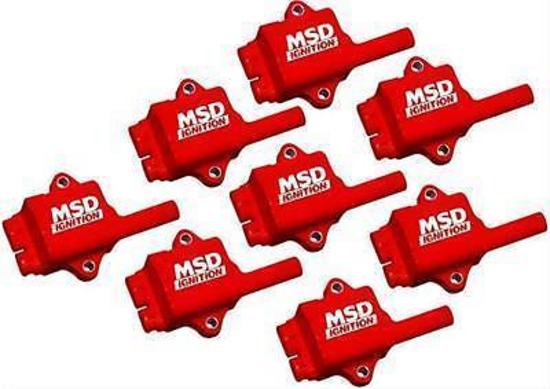

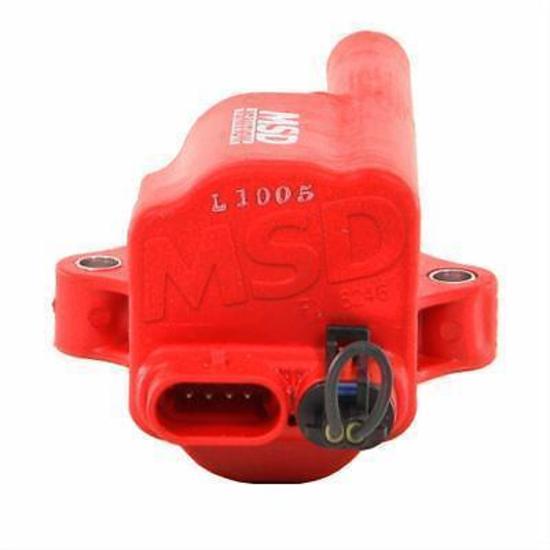

CHEV GM LSI-LS6 LQ9 MSC II IGNITION COIL MSD X8 82468
MSD Ignition's Multiple Spark Coils (MSC) will fit in place of the stock GM LS coils and connect directly to the factory connectors. Once installed, you'll have the power and performance of higher energy sparks, crowned with MSD's multiple spark discharge. Increased spark energy and voltage, along with multiple spark capabilities, help improve the combustion process of the fuel mixture to create an efficient burn. This results in improved throttle response, smooth idle and quick starts, plus increased high rpm performance!Specs:Application: Chev Small Block Gen III/IV (LS Series) 5.3, 6.0, 4.8 Litre| Coil Wire Attachment | Female/Socket |
| Coil Style | Coil pack |
| Primary Resistance | 0.570 ohms |
| Coil Internal Construction | Epoxy |
| Coil Color | Red |
| Maximum Voltage | 44,000 V |
| Turns Ratio | 52:1 |
| Secondary Resistance | 3.1K ohms |
| Inductance | 5.8 mH |
| Peak Current | 150 mA |
| Mounting Bracket Included | No |
| Coil Wire Included | No |
| Ballast Resistor Included | No |
| Coil Shape | Square |
| Quantity | Sold as a set of 8. |
| Notes | Fits models with spark plug wire and coil connector entering opposite sides of the coilFits models with engine VIN Z, N, T, V, U, B, or P only. |
Check Out The MSD Coil Identification Guide.
