MSD Ignition

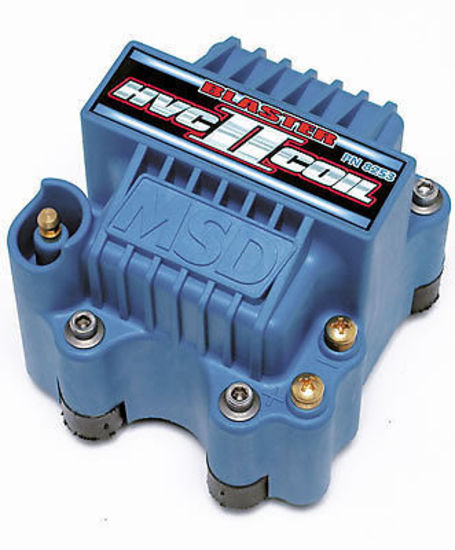

MSD Ignition MSD8253 Hvc-2 Coil 44000v Suits 6 Series Ignitions

MSD Ignition MSD8253 Hvc-2 Coil 44000v Suits 6 Series Ignitions

MSD8253
$681.90 AUD
$681.90 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
MSD HVC-2 COIL 44,000V SUITS 6 SERIES IGNITIONS MSD8253
MSD engineers drew upon their experience with Top Fuel cars and created these new HVC-2 coils for use with the MSD 6 Series Ignition Controls. These coils utilize an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 and wound specifically to create an effective coil with incredible voltage capabilities, lightning quick rise time, and lengthy spark duration. The housing, also molded from Rynite material, features far-spaced brass primary terminals and a well-protected secondary tower for increased spark isolation. The housing is completely potted with an epoxy compound for vibration resistance and installs with sturdy vibration mounts. They're designed for use with MSD 6 Series ignitions.Specs:
Coil Wire Attachment Male/HEI
Coil Style U-core
Primary Resistance 0.160 ohms
Coil Internal Construction Epoxy
Coil Color Blue
Maximum Voltage 44,000 V
Turns Ratio 100:1
Secondary Resistance 630 ohms
Inductance 3.5 mH
Peak Current 450 mA
Spark Duration 450 uS
Mounting Bracket Included No
Coil Wire Included No
Ballast Resistor Included No
Coil Shape Square
Height (in) 3.000 in.
Length (in) 6.000 in.
Width (in) 6.000 in.
Quantity Sold individually.
Notes For use with MSD 6 Series ignition controls.





Manufacturer Part Number:

View full details
