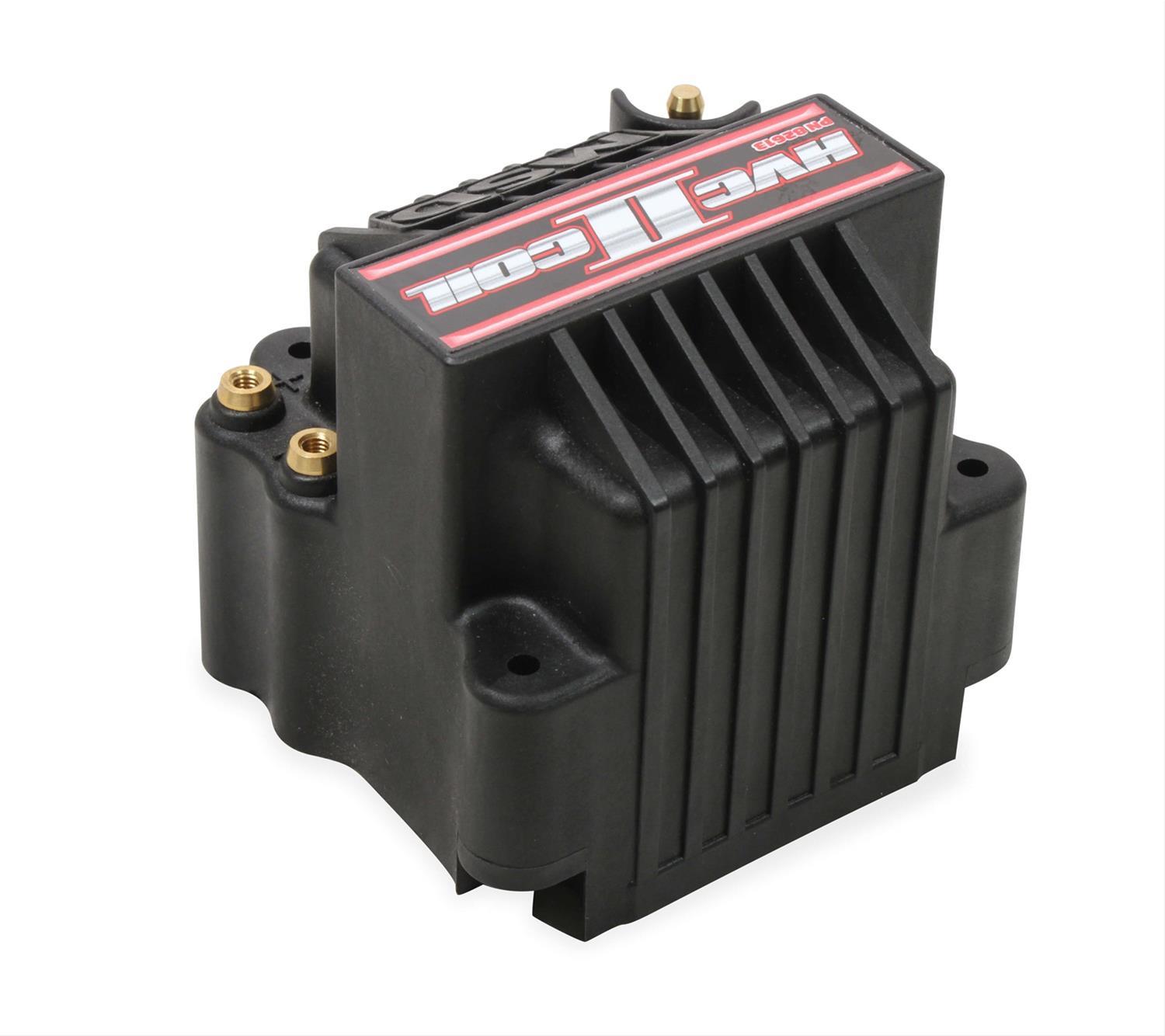

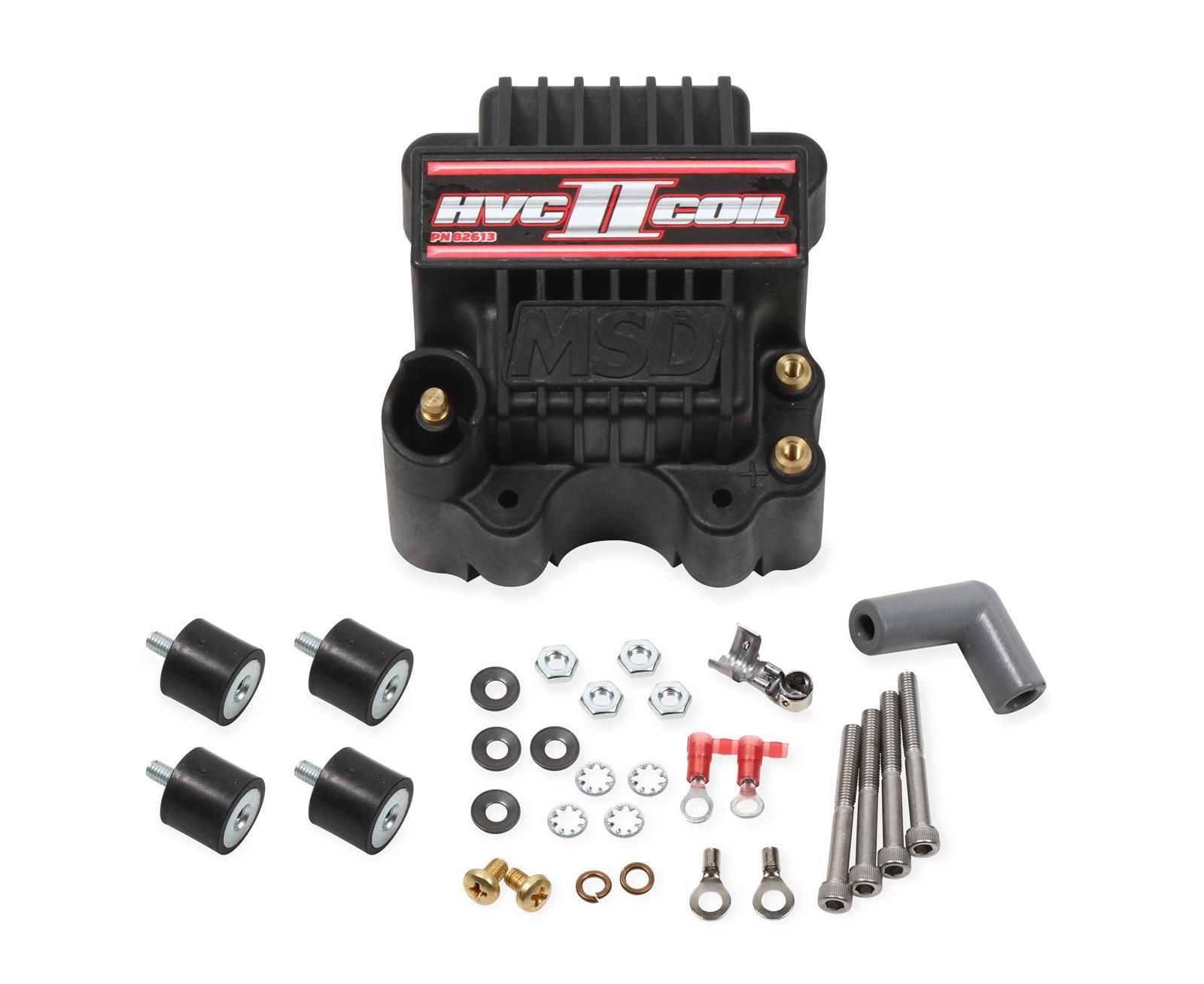

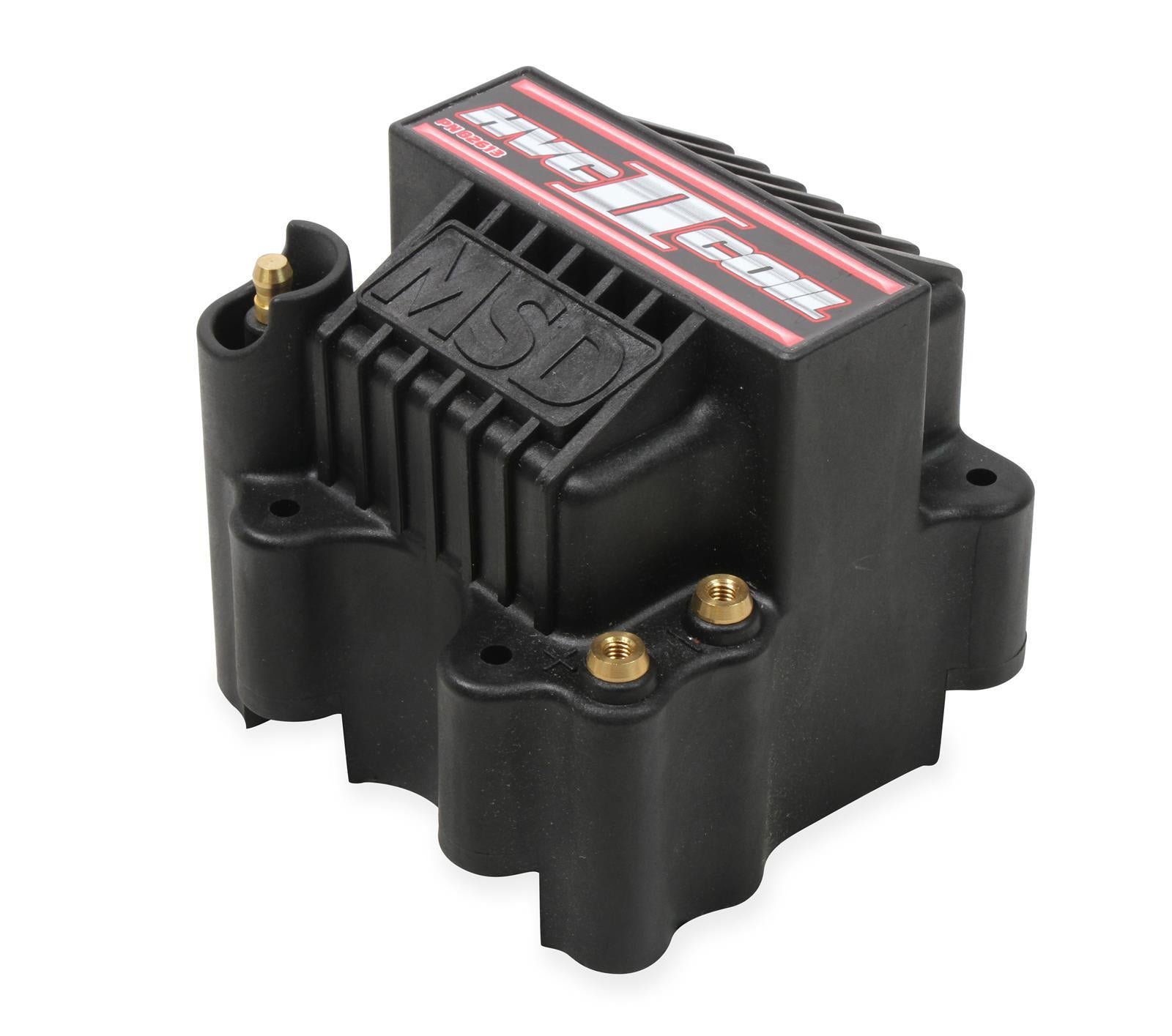

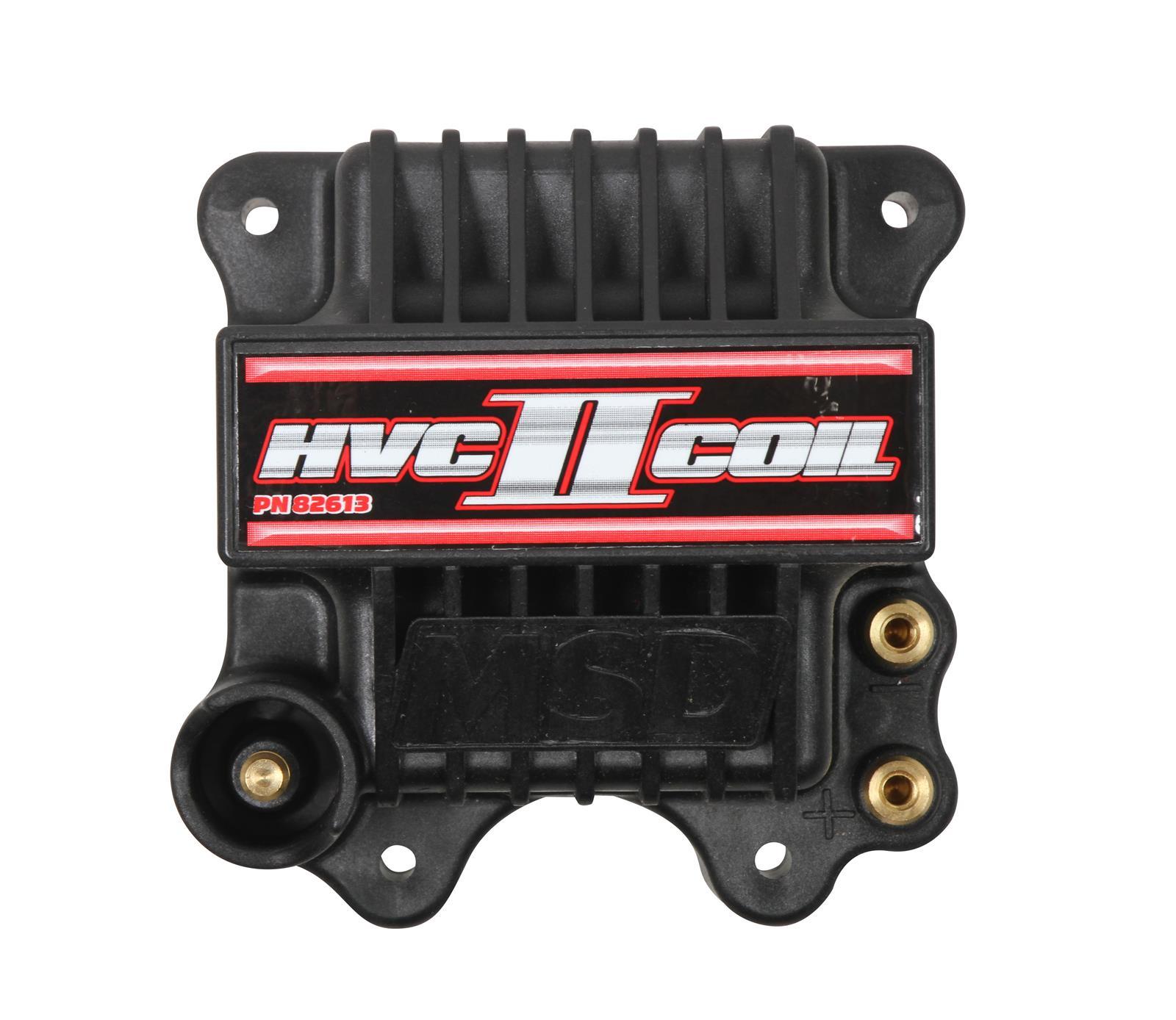

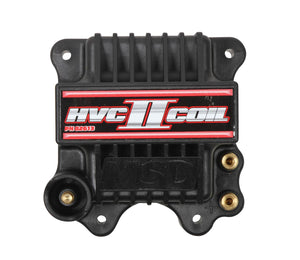

MSD Ignition MSD82613 Coil Pro Power Hvc-2 W/7 Series

Item Description

MSD HVC-2 coils utilize an iron U-core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material. That means it has incredible dielectric capabilities at high temperatures. The housing features far-spaced brass primary terminals, and a well-protected secondary tower for increased spark isolation. HVC-2 coils are designed for use with MSD 7 Series ignitions.



  • Coil Style: Remote mount
  • Primary Resistance: 0.016 ohms
  • Coil Internal Construction: Epoxy
  • Coil Wire Attachment: Male/HEI
  • Coil Color: Black
  • Maximum Voltage: 45,000 V
  • Turns Ratio: 70:1
  • Secondary Resistance: 30.00K ohms
  • Inductance: 0.25 mH
  • Peak Current: 2 amps
  • Spark Duration: 150 uS
  • Mounting Bracket Included: No
  • Coil Wire Included: No
  • Ballast Resistor Included: No
  • Coil Shape: Square
  • Quantity: Sold individually.
  • Notes: Coil is for drag racing applications

Manufacturer Information

  • Manufacturer: MSD Ignition
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
