Chev/holden LS1/LS6 Multiple Spark Ignition Coil (each)
MSD Ignition
Part No. MSD8285
Regular price
$320.35 AUD
Regular price
Sale price
$320.35 AUD
Taxes included.
Shipping calculated at checkout.
SKU:MSD8285
Expert Advice
Talk to real engine builders
Fast Dispatch
Australia Wide Shipping
Family Owned
Trusted since 1988
Secure Checkout
Safe & Encrypted Payments
Quantity
Availability:
Ships in 1-3 Business Days*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information

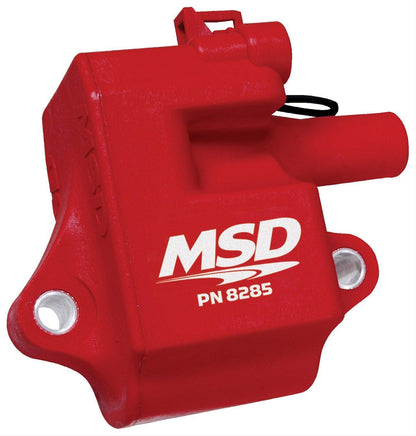

MSD MULTIPLE SPARK IGNITION COIL MSD8285 SUIT CHEV/HOLDEN LS1/LS6 (SINGLE)
MSD Ignition's Multiple Spark Coils (MSC) will fit in place of the stock GM LS coils and connect directly to the factory connectors. Once installed, you'll have the power and performance of higher energy sparks, crowned with MSD's multiple spark discharge. Increased spark energy and voltage, along with multiple spark capabilities, help improve the combustion process of the fuel mixture to create an efficient burn. This results in improved throttle response, smooth idle and quick starts, plus increased high rpm performance!
Specs:
Application: Chevy small block Gen III/IV 4.8L/294, 5.3L/323, 5.7L/350, 6.0L/364.
Coil Wire Attachmen Female/Socket
Coil Style: Coil pack
Primary Resistance: 0.730 ohms
Coil Internal Construction: Epoxy
Coil Color: Red
Maximum Voltage: 40,000 V
Turns Ratio: 56:1
Secondary Resistance: 3.7K ohms
Inductance: 3.6 mH
Peak Curren 124 mA
Spark Duration: 1,110 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.
Notes: Fits LS1/LS6 engine models with spark plug wire and coil connector entering the same side of the coil. Please see application notes regarding engine VIN and fitment. Click the "Charts & Guides" tab for help with coil identification. All specifications listed are measured at 14 V.
Coil Wire Attachmen Female/Socket
Coil Style: Coil pack
Primary Resistance: 0.730 ohms
Coil Internal Construction: Epoxy
Coil Color: Red
Maximum Voltage: 40,000 V
Turns Ratio: 56:1
Secondary Resistance: 3.7K ohms
Inductance: 3.6 mH
Peak Curren 124 mA
Spark Duration: 1,110 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Quantity: Sold individually.
Notes: Fits LS1/LS6 engine models with spark plug wire and coil connector entering the same side of the coil. Please see application notes regarding engine VIN and fitment. Click the "Charts & Guides" tab for help with coil identification. All specifications listed are measured at 14 V.
