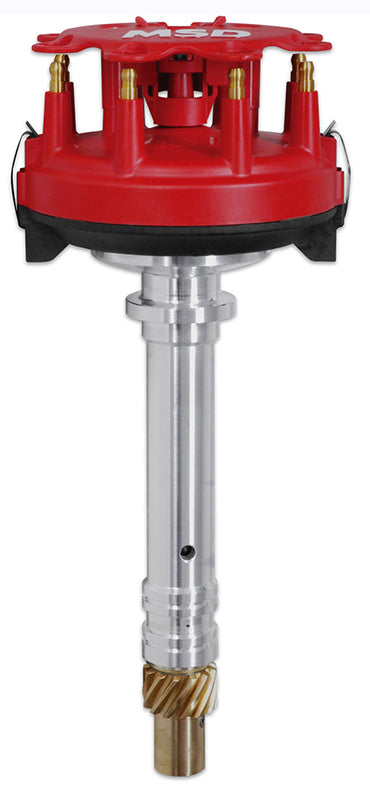

MSD Ignition MSD84697 Pro-Billet Crank Trigger Distributor (Small/Big Block Chevy Low Profile Design)

Pro-Billet Crank Trigger Distributor (Small/Big Block Chevy Low Profile Design)

Name: MSD Ignition MSD84697 Pro-Billet Crank Trigger Distributor (Small/Big Block Chevy Low Profile Design)
Brand: MSD Ignition
SKU: MSD84697
Price: 791.95 AUD
Availability: InStock

1 2

MSD Ignition

MSD Ignition Part No. MSD84697

$791.95 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:MSD84697

Expert Advice Talk to real engine builders

Fast Dispatch Australia Wide Shipping

Family Owned Trusted since 1988

Secure Checkout Safe & Encrypted Payments

Availability: In-Store - Ready to Ship^*

✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666

View full details

Product Information

Designed to fit low in the block to clear firewall and intake combinations CNC machined billet aluminium housing and Dupont Rynite base Oversized polished steel shaft with a QPQ coating for friction reduction Shaft is guided by a sealed ball bearing and an extra long sintered bushing

Product Information

Technical Information

Features

Genuine performance part backed by Engine Master Australia.

Specifications

Manufacturer: MSD Ignition
MPN: Not provided
UPC: 085132846979
Our Part Number: MSD84697

Notes: ial oil tract improves lubrication to the distributor and cam gear
Notes: O-ring seals can be added to modified blocks to improve oil pressure control
Notes: Must be used with an MSD Crank Trigger and MSD Ignition Control
Notes: Supplied with large diameter HEI style distributor cap and rotor
Supplied with bronze gear: The MSD Billet Crank Trigger Distributors are designed for racing engines that use a crankshaft triggered ignition. Since most race engines use custom tunnel rams or blowers that limit the space for a distributor, these Crank Trigger Distributo rs are designed to t quarters and still accurately deliver the sparks
Notes: Crank Trigger Distributors are designed to be used with a crank trigger only. The distributors have no magnetic pick-up or advance assemblies
Notes: The unique design of these distributors fit tight intake systems while still transferring the high voltage of the MSD racing ignition to the spark plugs. The high voltage carrying capabilities are the result of several features which have been designed into these Low-Profile Distributors. This includes a large diameter cap with wide spaced terminals and an injection moulded Rynite rotor with thick vanes to stir up the air inside the cap. The high dielectric Rynite base also prevents arcing to the billet housing
Notes: Since these distributors are used primarily in racing applications, an oversized steel shaft is responsible for delivering the sparks. This shaft is QPQ-coated for friction reduction and receives guidance from a sealed ball-bearing assembly and an extra long, preci sion th operation.N
OTE: Must be used with an MSD Crank Trigger and Ignition Control

Fitment

Confirm compatibility with our team before ordering when your application is not listed.
