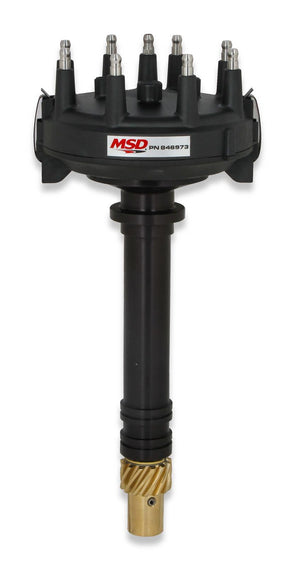

MSD Ignition | MSD846973 | Black Chevy Low-Profile Crank Trigger Distributor

MSD846973 | Black Chevy Low-Profile Crank Trigger Distributor

1 6
MSD Ignition
MSD Ignition Part No. MSD846973
$834.75 AUD
$834.75 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

MSD846973

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Availability: Ships in 3-5 Business Days*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

The unique design of these distributors fit tight intake systems while still transferring the high voltage of the MSD racing ignition to the spark plugs. The high voltage carrying capabilities are the result of several features which have been designed into these low-profile distributors. This includes a large diameter cap with wide spaced terminals and an injection molded Rynite rotor with thick vanes to stir up the air inside the cap. The high dielectric Rynite base also prevents arcing to the billet housing

Product Information

The unique design of these distributors fit tight intake systems while still transferring the high voltage of the MSD racing ignition to the spark plugs. The high voltage carrying capabilities are the result of several features which have been designed into these low-profile distributors. This includes a large diameter cap with wide spaced terminals and an injection molded Rynite rotor with thick vanes to stir up the air inside the cap. The high dielectric Rynite base also prevents arcing to the billet housing

Technical Information

Features
Black anodized, CNC billet aluminum housing provides great strength and long lasting good looks
Designed to fit low in the block to clear firewall and intake combinations
Supplied with bronze gear
Supplied with large diameter HEI style distributor cap and rotor
Must be used with an MSD Crank Trigger and MSD Ignition Control
O-ring seals can be added to modified blocks to improve oil pressure control
Specifications
Manufacturer
MSD Ignition
MPN
Not provided
UPC
085132469734
Our Part Number
MSD846973
Notes: ial oil tract improves lubrication to the distributor and cam gear
Notes: Shaft is guided by a sealed ball bearing and an extra long sintered bushing
Notes: Oversized polished steel shaft with a QPQ coating for friction reduction
Brand: MSD
Distributor Type: Crank Trigger
Emission Code: 3
Engine: Chevy Small and Big Block
Gear: Bronze
Product Type: Distributor
Part Number: 846973
Notes: Must be used with an MSD 6, 7, 8-series ignition and crank trigger.
