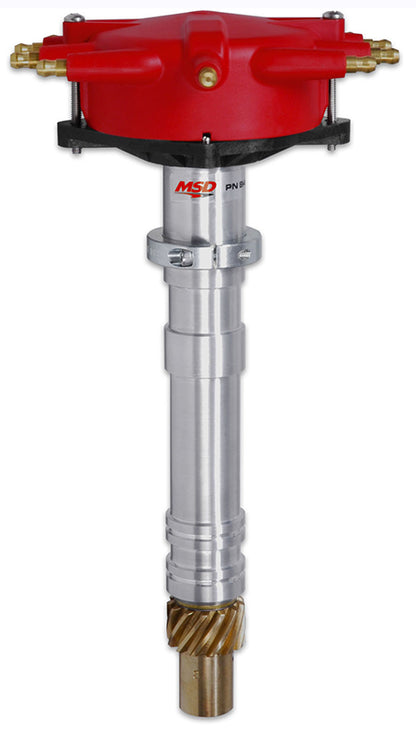

MSD Ignition MSD8489 Pro-Billet Crank Trigger Distributor (Small/Big Block Chevy Low Profile Distributor w/ Crab Cap)

Pro-Billet Crank Trigger Distributor (Small/Big Block Chevy Low Profile Distributor w/ Crab Cap)

Name: MSD Ignition MSD8489 Pro-Billet Crank Trigger Distributor (Small/Big Block Chevy Low Profile Distributor w/ Crab Cap)
Brand: MSD Ignition
SKU: MSD8489
Price: 767.55 AUD
Availability: InStock

1 2

MSD Ignition

MSD Ignition Part No. MSD8489

$767.55 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:MSD8489

Expert Advice Talk to real engine builders

Fast Dispatch Australia Wide Shipping

Family Owned Trusted since 1988

Secure Checkout Safe & Encrypted Payments

Availability: In-Store - Ready to Ship^*

✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666

View full details

Product Information

Designed to fit low in the block to clear firewall and intake combinations

Product Information

Designed to fit low in the block to clear firewall and intake combinations

Technical Information

Features

CNC machined billet aluminium housing and Dupont Rynite base
Adjustable slip collar for engines with modified deck heights
Oversized polished steel shaft with a QPQ coating for friction reduction
Shaft is guided by a sealed ball bearing and an extra long sintered bushing

Specifications

Manufacturer: MSD Ignition
MPN: Not provided
UPC: 085132084890
Our Part Number: MSD8489

Notes: ial oil tract improves lubrication to the distributor and cam gear
Notes: O-ring seals can be added to modified blocks to improve oil pressure control
Notes: Supplied with small, low crab style distributor cap, rotor and bronze gear
Notes: Must be used with an MSD Crank Trigger and MSD Ignition Control
Notes: The MSD Crab Cap Distributors are built specifically for racing engines with almost no room for a distributor due to tunnel rams or blowers. The distributor is equipped with a spe cial low-profile crab distributor cap to allow it to fit in extremely tight areas. The housing features two optional O-rings at the bottom that improve oil control by preventing oil pressure loss. Also, a small oil bleed hole located in the base sprays oil on the distributor and camshaft gears to prevent excessive wear. Since this is a racing distributor, there is an adjustable slip collar to make up for engines that have had the distance between the mounting surface and the gear modified. Crowning this distributor is MSD own Crab Cap! This cap incorporates spark plug style terminals for a better connection and grip to the plug wires

Fitment

Confirm compatibility with our team before ordering when your application is not listed.
