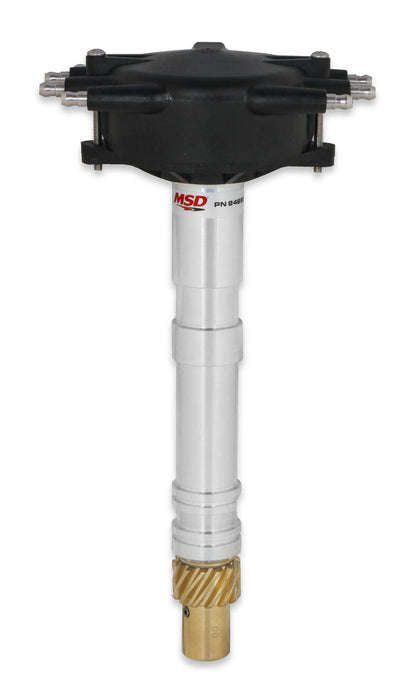

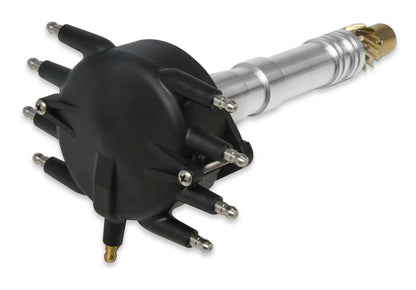

MSD Ignition | MSD84893 | Chevy Crank Trigger Distributor w/ Black Crab Cap

MSD84893 | Chevy Crank Trigger Distributor w/ Black Crab Cap

1 5
MSD Ignition
MSD Ignition Part No. MSD84893
$825.25 AUD
$825.25 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

MSD84893

Expert Advice Talk to real engine builders
Fast Dispatch Australia Wide Shipping
Family Owned Trusted since 1988
Secure Checkout Safe & Encrypted Payments
Availability: In-Store - Ready to Ship*
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details

Product Information

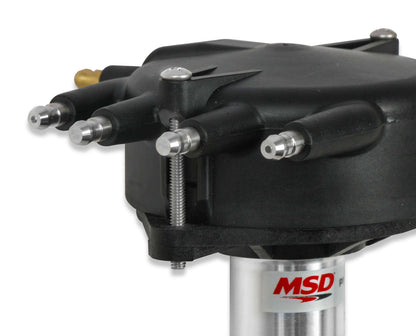

The MSD Crab Cap Distributors are built specifically for racing engines with almost no room for a distributor due to tunnel rams or blowers. The distributor is equipped with a special low-profile crab style distributor cap to allow it to fit in extremely tight areas. The housing features two optional O-rings at the bottom that improve oil control by preventing oil pressure loss. Also, a small oil bleed hole located in the base sprays oil on the distributor and camshaft gears to prevent excessive wear. Since this is a racing distributor, there is an adjustable slip collar to make up for engines that have had the distance between the mounting surface and the gear modified. Crowning this distributor is MSD's own Crab Cap! This cap incorporates spark plug style terminals for a better connection and grip to the plug wires.

Product Information

The MSD Crab Cap Distributors are built specifically for racing engines with almost no room for a distributor due to tunnel rams or blowers. The distributor is equipped with a special low-profile crab style distributor cap to allow it to fit in extremely tight areas. The housing features two optional O-rings at the bottom that improve oil control by preventing oil pressure loss. Also, a small oil bleed hole located in the base sprays oil on the distributor and camshaft gears to prevent excessive wear. Since this is a racing distributor, there is an adjustable slip collar to make up for engines that have had the distance between the mounting surface and the gear modified. Crowning this distributor is MSD's own Crab Cap! This cap incorporates spark plug style terminals for a better connection and grip to the plug wires.

Technical Information

Features

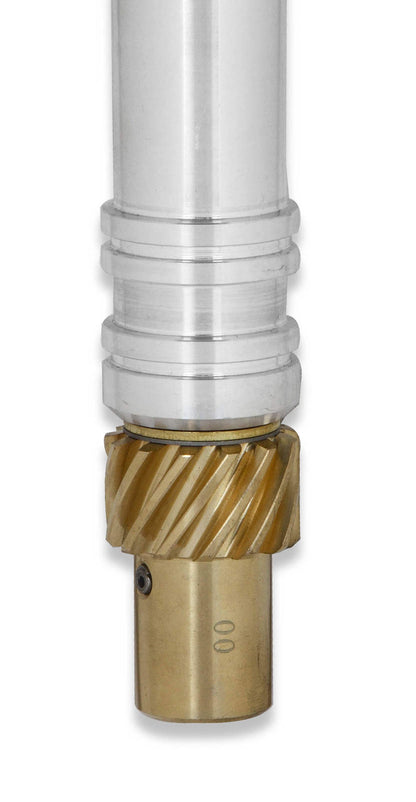

Supplied with small, low crab style distributor cap, rotor and bronze gear
O-ring seals can be added to modified blocks to improve oil pressure control
Specifications
Manufacturer
MSD Ignition
MPN
Not provided
UPC
085132848935
Our Part Number
MSD84893
Notes: ial oil tract improves lubrication to the distributor and cam gear
Notes: Shaft is guided by a sealed ball bearing and an extra long sintered bushing
Notes: Oversized polished steel shaft with a QPQ coating for friction reduction
Notes: 0.500" taller for extra tall Chevrolet based engine blocks
Notes: Adjustable slip collar for engines with modified deck heights
Notes: CNC machined billet aluminum housing and Dupont Rynite base is designed for standard Chevrolet blocks
Notes: Designed to fit low in the block to clear firewall and intake combinations
Brand: MSD
Emission Code: 3
Engine: Chevy Small and Big Block
Gear: Bronze
Product Type: Distributor
Part Number: 84893
Notes: Must be used with an MSD Crank Trigger and MSD Ignition Control
