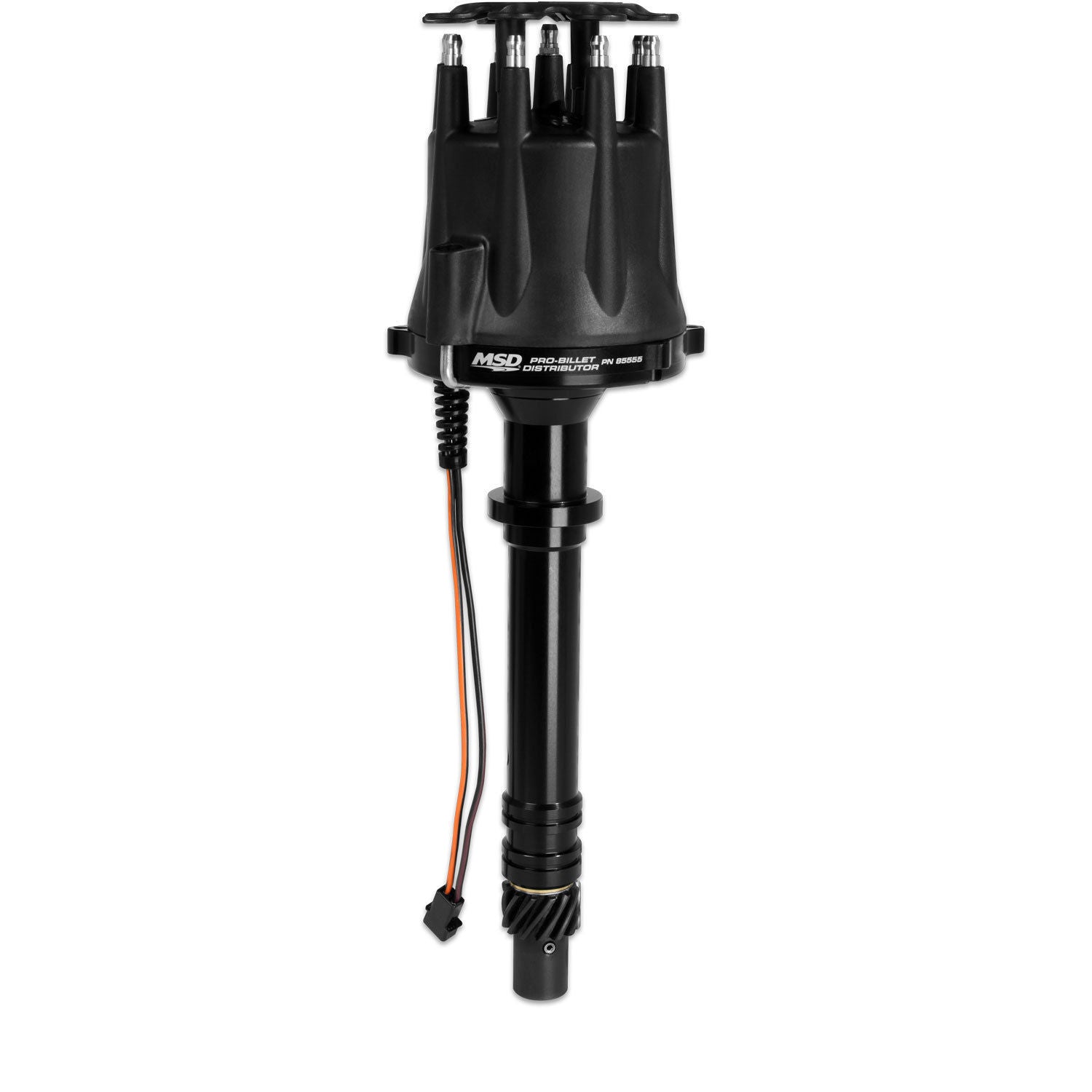

MSD Ignition MSD85555 Black Pro-Billet Distributor suit Chev Big & Small Block V8

MSD Ignition MSD85555 Black Pro-Billet Distributor suit Chev Big & Small Block V8

MSD85555
$817.15 AUD
$817.15 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
MSD BLACK PRO-BILLET DISTRIBUTOR MSD85555 SUIT CHEV BIG & SMALL BLOCK V8
The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenancefree! Just above the pick-up is MSD's adjustable mechanical advance assembly. Different springs and stop bushings are supplied so you can tune an advance curve to match your application. Must be used with an MSD 6, 7 or 8-series ignition.

Features:

  • CNC machined billet aluminum housing and billet aluminum base
  • Will not accept a vacuum advance canister
  • Must be used with an MSD Ignition Control
  • Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Special oil tract improves lubrication to the distributor and cam gear
  • Nylon pads ensure smooth operation of the advance weights
  • Advance weight pins are staked and tig welded to the plate
  • Mechanical advance assembly can be locked out for crank trigger systems
  • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings
  • Specs:Application: Chevy Big & Small Block V8
    Computer-Controlled Compatible: No
    Trigger Style: Magnetic
    Advance Type: Mechanical
    Cap Style: Male/HEI
    Cap Finish: Black
    Mechanical Tach Drive: No
    Slip Collar: Yes
    Gear Material: Iron
    Ignition Box Required: Yes
    Distributor Gear Rotation: Standard
    Housing Material: Billet aluminum
    Housing Finish: Black
    Marine Use: No
    Quantity: Sold individually.


Manufacturer Part Number:
