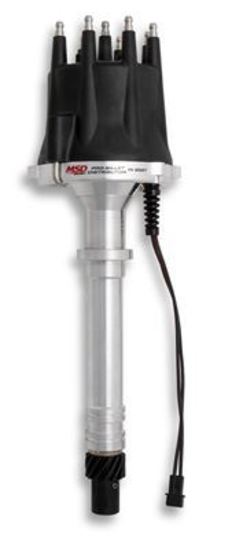

Distributor Chevrolet V8 Pro-Billet W/Black Cap
SKU:MSD85557
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information
MSD's most popular performance distributor is now available with a black cap that includes 316 Stainless Steel Terminals. The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenancefree! Just above the pick-up is MSD's adjustable mechanical advance assembly.
Different springs and stop bushings are supplied so you can tune an advance curve to match your application. Must be used with an MSD 6, 7 or 8-series ignition.
Features :
- CNC machined billet aluminium housing and billet aluminum base.
- Will not accept a vacuum advance canister.
- Must be used with an MSD 6, 7 or 8 Series Ignition Control.
- Supplied with an HEI style Black Cap w/316 Stainless Steel terminals and rotor (accepts Cap-A-Dapts).
- O-ring seals can be added to modified blocks to improve oil pressure control.
- Special oil tract improves lubrication to the distributor and cam gear.
- Nylon pads ensure smooth operation of the advance weights.
- Advance weight pins are staked and tig welded to the plate.
- Mechanical advance assembly can be locked out for crank trigger systems.
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction.
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing.
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range.
- Easy-to-adjust mechanical advance with supplied springs and stop bushings.
- No CARB Exemption Order Number.
