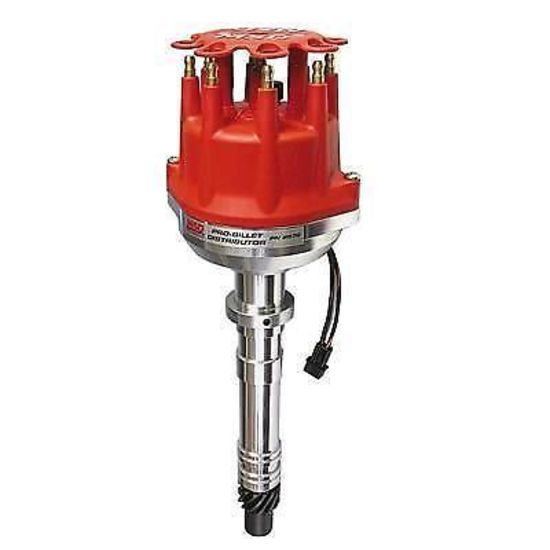

MSD Ignition MSD8570 Chev Big & Small Block 265-454 Pro-Billet Distributor

MSD Pro-Billet distributors share the same CNC machining techniques as the rest of the MSD distributor line. They feature a housing that is machined from high-quality 6061-T6 aluminum for durability and show-quality looks. Their oversized shaft receives a QPQ coating for friction reduction and corrosion resistance, with the added strength of two sealed ball bearings that guide the shaft accurately at well over 10,000 rpm. An extra-long sintered bushing replaces the ball bearing at the bottom of Chevrolet models. TIG-welded on top of the polished steel shaft is MSD's accurate mechanical advance assembly. The weights are supported by nylon pads that allow the advance to operate smoothly throughout the rpm range. For all-out racing, the advance mechanism can also be easily locked out. To accurately trigger the ignition, a high-output magnetic pickup is bolted to the base. This pickup produces a precise trigger signal that will never vary more than one degree at any rpm. A durable gear is installed for performance applications, and an MSD red cap with brass terminals and race rotor is supplied. They're available in standard and small diameter models for applications with limited clearance, and require the use of a separate ignition box such as an MSD 6, 7, 8, or 10 Series ignition.

• Application: Chev Small Block Gen I 265-400 C.I.D, Chev Big Block 396-454 C.I.D
• Computer-Controlled Compatible No
• Trigger Style Magnetic
• Advance Type Mechanical
• Cap Style Male/HEI
• Mechanical Tach Drive No
• Slip Collar Yes
• Gear Material Iron
• Ignition Box Required Yes
• Distributor Rotor Rotation Clockwise
• Housing Material Billet aluminum
• Housing Finish Natural
• Quantity Sold individually.
• Notes Small base diameter for clearing tunnel rams, blowers, and tight clearance firewalls.
• Marine Use No
