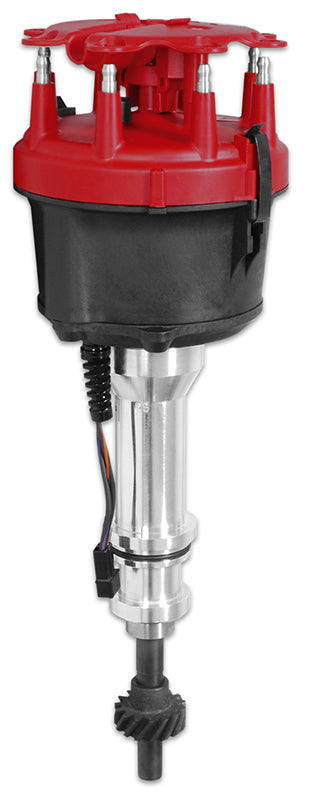

Billet Distributor (Ford 302-351C 351M 400 429 460 Magnetic Trigger Mechanical Advance w/ Steel Gear)
SKU:MSD85801
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information
Our popular Ford big block billet distributor, now supplied with a steel gear installed for specific camshaft requirements.
Under the stainless steel terminals of the MSD cap and rotor is an easy-to-adjust mechanical advance assembly. The assembly is fine blanked from chromyl steel, TIG-welded for strength plus receives a QPQ coating. The precision weights glide on nylon bushings for smooth advancement and different springs and stop bushings are supplied so a variety of advance curves can be tuned.
The steel shaft that spins the advance and reluctor receives a friction reducing coating plus is guided by a sealed ball bearing and long sintered bushing. This combination provides stable timing signals and spark delivery at any rpm. Triggering chores are handled by MSD's race proven, maintenance-free magnetic pick-up.
Note: Will not clear some factory-style Shaker Hood Scoops.
Features:
- CNC machined billet aluminium housing and Dupont Rynite base
- High quality Steel Gear installed
- Supplied with Cap-A-Dapt and rotor (accepts MSD socket style caps)
- Must be used with an MSD Ignition Control
- Mechanical advance assembly can be locked out for crank trigger systems
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Maintenance-fr ee magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
Product Information
Our popular Ford big block billet distributor, now supplied with a steel gear installed for specific camshaft requirements.
Under the stainless steel terminals of the MSD cap and rotor is an easy-to-adjust mechanical advance assembly. The assembly is fine blanked from chromyl steel, TIG-welded for strength plus receives a QPQ coating. The precision weights glide on nylon bushings for smooth advancement and different springs and stop bushings are supplied so a variety of advance curves can be tuned.
The steel shaft that spins the advance and reluctor receives a friction reducing coating plus is guided by a sealed ball bearing and long sintered bushing. This combination provides stable timing signals and spark delivery at any rpm. Triggering chores are handled by MSD's race proven, maintenance-free magnetic pick-up.
Note: Will not clear some factory-style Shaker Hood Scoops.
Features:
- CNC machined billet aluminium housing and Dupont Rynite base
- High quality Steel Gear installed
- Supplied with Cap-A-Dapt and rotor (accepts MSD socket style caps)
- Must be used with an MSD Ignition Control
- Mechanical advance assembly can be locked out for crank trigger systems
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Maintenance-fr ee magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
