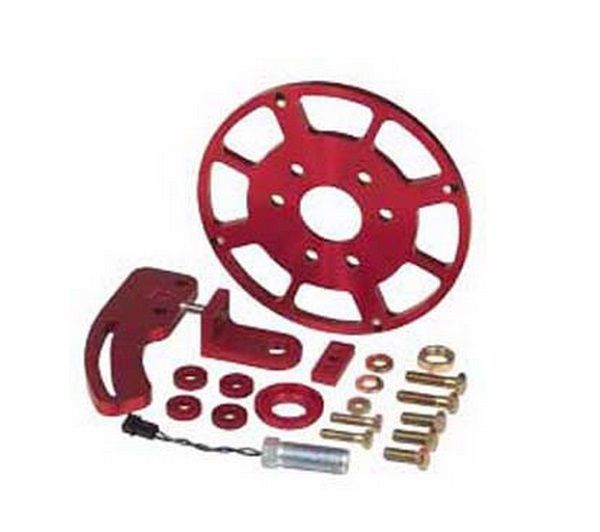

Flying Magnet Crank Trigger suit Chev SB V8 w/ 8" Balancer
MSD Ignition
Part No. MSD8615
Regular price
$982.95 AUD
Regular price
Sale price
$982.95 AUD
Taxes included.
Shipping calculated at checkout.
SKU:MSD8615
Expert Advice
Talk to real engine builders
Fast Dispatch
Australia Wide Shipping
Family Owned
Trusted since 1988
Secure Checkout
Safe & Encrypted Payments
Quantity
✔ Secure Checkout
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
View full details
✔ Easy Returns
✔ Need Help? Call (02) 6025 5666
Product Information
| MSD FLYING MAGNET CRANK TRIGGER MSD8615 SUIT CHEV SB V8 WITH 8" BALANCER For a long time, racers have known that one of the best things to do to an engine to improve its performance is to stabilise the ignition timing. The MSD Flying Magnet Crank Trigger system does exactly that by using four magnets embedded in an aluminium wheel. Although similar in appearance to other crank triggers, the MSD Flying Magnet design works on a different principle. Most crank triggers have a wheel, with steel studs sticking out, bolted to the harmonic balancer. As the crankshaft turns the studs pass by a stationary magnetic pick-up, triggering the ignition. This pick-up can be tri ggered by other bolts, is or even vibrations which will cause a loss of power or engine damage. The MSD Flying Magnet Crank Trigger uses four magnets secured in the aluminium trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This "flying magnet" design produces accurate trigger signals and the non-magnetic pick-up cannot be false triggered. Each Flying Magnet Crank Trigger includes a two-piece mounting bracket for the non-magnetic pick-up that in most cases will work on either the passenger side or driver's side of the engine (the SB Chrysler and SB Ford brackets mount on only one side). The CNC-machined aluminium bracket securely holds the pick-up in place and is slotted to provide a wide range of timing adjustment. Spacers are included so you can mount the bracket on engines with standard motor mounts or engines with a .25" motor plate. These systems will trigger MSD 6, 7, 8 and 10 Series Ignitions and all MSD Timing Accessories. |
| Application:Chevy small block Gen I 265-400ci V8. Pickup Included: Yes Adjustable Mounting Bracket Included: Yes Bracket Material: Billet aluminum Bracket Finish: Red anodized Crank Trigger Wheel Included: Yes Crankshaft Wheel Material: Aluminum Crankshaft Wheel Finish: Red anodized Hardware Included: Yes Quantity: Sold as a kit. |
