Ford 302-351C & 429-460 Complete Pro Billet 6AL Ignition System

Product Information

This MSD Ford engine ignition kit makes it easy to add MSD performance to your engine.

They come available with MSD's 6AL-2 Ignition Box, Pro-Billet HEI distributor, powerful Blaster SS coil and includes a set of universal Super Conductor 8.5mm plug wires. This kit has everything you need to light the fire in your Ford V8 engine!

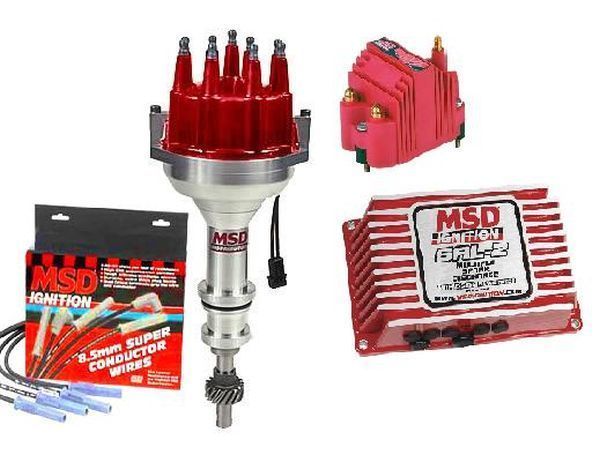

Kit Includes

• MSD Pro-Billet Distributors.
• MSD 6AL-2 Ignition Box
• MSD Blaster SS Coil
• MSD 8.5mm Super Conductor Spark Plug Wire

MSD8577 PRO BILLET DISTRIBUTOR

• Trigger Style: Magnetic
• Advance Type: Mechanical
• Cap Style: Male/HEI
• Mechanical Tach Drive: No
• Slip Collar: No
• Gear Material: Iron
• Ignition Box Required: Yes
• Distributor Gear Rotation: Standard
• Housing Material: Billet aluminum
• Housing Finish: Natural

MSD6421 6AL-2 IGNITION BOX

• Ignition Box Outpu Capacitive discharge
• Circuitry: Digital
• Rev Limiter: Yes
• Timing Retard: None
• Data Acquisition: No
• CD Voltage Output to Coil: 535 V
• Spark Output (millijoules): 135 Millijoules
• Minimum Operating Voltage: 10 V
• Maximum Operating Voltage: 18 V
• Ignition Box Color: Red
• Notes: Vibration mounts included.

MSD8207 BLASTER SS COIL

• Coil Wire Attachmen Male/HEI
• Coil Style: E-core
• Primary Resistance: 0.355 ohms
• Coil Internal Construction: Epoxy
• Coil Color: Red
• Maximum Voltage: 40,000 V
• Turns Ratio: 70:1
• Secondary Resistance: 4.40K ohms
• Inductance: 6.9 mH
• Peak Curren 300 mA
• Spark Duration: 220 uS

MSD 31183 UNIVERSAL SUPER CONDUCTOR SPARK PLUG WIRE SET

• Assembled: No
• Diameter (mm): 8.50mm
• RFI Suppression: Yes
• Wire Color: Black
• Distributor Terminal Ends: Male/HEI
• Distributor Boot Color: Gray
• Distributor Boot Material: Silicone
• Spark Plug Boot Ends: Eight multi-angle
• Spark Plug Boot Color: Gray
• Spark Plug Boot Material: Silicone
• Coil Wire Included: Yes
• Conductor Style: Spiral core
